Locators | Finders

The Tx family of signal transmitters has been designed to perfectly complement Radiodetection’s advanced high-precision cable and pipe locators including the RD8200, RD7200, and Marker Locator ranges.The Tx range is designed to meet the demands of tracing utilities through today’s complex underground infrastructure. The Tx-5 has a medium power and induction capability as well as Fault-Find. The transmitter range features locate frequencies compatible with locators across the Radiodetection Precision Locator ranges, and can be easily customized to match your chosen locator using the ‘model’ feature.  All transmitters feature constant current across their entire bandwidth in all modes (direct connect, clamp or inductive mode), and deliver convenience on-site with an IP65 ingress protection rating, removable accessory tray and a large, high-contrast, backlit LCD screen. iLOC remote control iLOC is an advanced Bluetooth® link between the RD8200 locator and transmitter, which allows you to control the locate signal’s power and frequency from up to 1400’ / 450m away.  Less time walking and more time locating. 90V maximum output High voltage output makes sure that you can get locatable signal onto even high impedance lines like telephone pairs. Fault Find Apply a Fault-Find signal with the Tx-5 and Tx-10 transmitter and use an accessory A-frame to detect and pinpoint insulation faults. SideStepAuto The transmitter can be used to recommend a general-purpose locate frequency for the intended locate task by measuring the impedance of the target cable or pipe. SideStepAuto helps to improve locate accuracy and extends battery life. Automatic impedance matching Transmit your locate signal as far as possible by automatically matching the transmitter impedance to that of your target cable. Lithium Ion battery pack option Deliver extended run-time, lighter weight and superior cold-weather performance by comparison to standard alkaline batteries. No need for operators to replace, manage and recycle alkaline battery cells, reducing the associated costs, workload and environmental burden. Built for on-site use – IP65 Shock resistant, ingress protected casing protects against knocks, drops, water and dust. ECO mode Extend alkaline battery life by enabling ECO mode. When a low battery condition is detected the transmitter gradually reduces the power output and provides audio and visual warnings. Multimeter function Measure output voltage, line voltage, current, impedance and power, and characterize faults on the target line before beginning a survey

Read more less

  ACCURATE UNDERGROUND WIRE LOCATOR. Quickly isolate, trace the path and determine the depth of buried conductors (wires or metallic pipes) over distances of 4,000 feet (1.2 km) and depths of 7 feet (2.2 m) with the 501 underground wire locator. EASILY LOCATE AND TRACE Electrical lines, Communications cables, Electric dog fence cables, Fish tape and Metallic pipes, Invisible fence wires, Outdoor or Landscape lighting cables with 501 buried wire locator. Trace Electric, Power, Coax, Telephone, and Utility lines with the 501 underground wire locator. EFFICIENT: Save yourself hours to trace buried cables, wires, or pipes. With inductive signal detection, this cable and buried wire locator can be used on active or dead systems, making it quick and easy to trace the path and determine the depth of buried wires and trace metallic pipes. COMPLETE PORTABLE KIT: 501 buried wire locator comes with a transmitter assembly, receiver assembly, inductive coupler (clamp), built-in inductive antenna, two 8-foot (2.4 m) test leads with heavy-duty alligator clips, and a durable polyethylene case, making it a complete package for all your location needs. CONNECTION OPTIONS: Options for direct connection, inductive clamp, and inductive antenna allow active or dead systems location. Transmitter output and receiver sensitivity are fully adjustable for maximum accuracy. MADE IN THE USA. Professional-grade underground wire locator / buried wire locator tool, backed by TEMPO quality. Assembled and QC tested in Vista, CA facility. 1-year Manufacturer's Warranty and technical support. Intended for use as an Underground Wire Locator, Underground Wire Tracer, Underground Pipe Locator, Underground Cable Locator, Dog Fence Wire Break Locator, Buried Wire Locator, Underground Utility Locator, Water Line Locator Tool (metallic pipes or "fish taped"/"steel snaked" plastic pipes), Electrical Lines, Irrigation Line Locator, Underground Wire Locator, irrigation wire tracer.

Read more less

The Model GA-52B Magnetic Locator detects the magnetic field of a ferromagnetic object. lt responds to the difference in magnetic field between two sensors spaced about 20 inches apart. The response consists of a change in the frequency of a signal that is emitted by a loudspeaker. The figure below illustrates an application of the locator in which it is used to detect an iron marker for a property corner. In the illustration, the magnetic field of the iron marker is stronger at sensor A than it is at sensor B. As a result, the f requency of the signal on the loudspeaker is higher than the idling frequency,40Hz, which exists when the field is the same at both sensors.

Read more less

PADDLE SWITCH: You can activate this grinder easily, even when you’re wearing thick work gloves, thanks to the paddle switch design DEBRIS BAFFLES: An “L” shape molding near the grinding wheel picks up debris and prevents it from clogging up the tool’s internal components TOOL-FREE GUARD: The guard is easily adjustable. All it takes is the push of a button, and you can have the guard adjusted for a variety of cutting applications at different angles 3-POSITION SIDE HANDLE: Work with maximum stability with the help of the plastic handle, included in this kit M18 COMPATIBLE: This Milwaukee power tool works with M18 18v lithium ion Milwaukee batteries. Compatible models include the 48-11-1860, 48-11-1850, 48-11-1828, and 48-11-1815, 48-11-1840, 48-11-1820

Read more less

Built on a proven design, and with Pathfinder SAF Technology™ at its core, the Pathfinder PLS® offers RYCOM’s most advanced signal acquisition and filtering technology. The Pathfinder PLS® cable & pipe locator offers utility locators FrequencyFlex™ allowing users to adapt the system to their specific needs. Multiple active frequencies allow the user to accurately locate with a minimum of interference while maintaining the ability continue locating past faults and around conduit bends. Passive frequencies identify "live" and charged lines by their naturally occurring electromagnetic fields. The Pathfinder PLS® offers multiple passive frequencies -- 50Hz, 60Hz, Radio Frequency, Cathodic Protection Rectifier & CATV -- allowing line locating without the use of a transmitter.

Read more less

The GA-52Cx Locator detects the magnetic field of iron and steel objects, with unmatched sensitivity. Designed for one-hand operations, the On/Off-Sensitivity and Volume controls are located on the underside of the cover. This provides easy access, protects the knobs and contributes to their overall ruggedness and dependability. Best sensitivity with five selectable levels. Audio Ouput. Doesn not respond to aluminum, gold, brass, or copper. Patented Heliflux sensors

Read more less

The ML-3 is a much-anticipated and welcome addition to the ML family of magnetic locators from SSI. ML-3 magnetic locators represent the best in innovation at work for the water/sewer industry, surveying industry and military.That's because the ML-3 reflects many of the items on our customers' technological wish lists. The ML-3 short is 40" to meet surveyors' personal preference, providing an ergonomic, lightweight, rugged, one-handed operation option to traditional magnetic locators. The ML-3 offers unparalleled durability, as all components are housed inside the aircraft-grade aluminum monotube units.But don't let its looks fool you. It's 100 percent waterproof up to 220 feet - a first for the industry - so it can be used in difficult weather and submerged under water. Plus, its auto-zero feature allows the user to "cancel" ambient magnetics or magnetic gradient in the soil or water. And it's digitally tuned, so it offers unparalleled accuracy in detecting ferromagnetic objects. Use the ML-3 to find ferrous metals, such as: Corner markers (iron or steel) Mag nails and PK nails Valve and curb boxes Iron and steel pipes Well casings Manhole & Utility Box Covers Steel drums & tanks Septic tank handles Energized electric cables Marker magnets Unexploded bombs (UXO) Illegal Taps (Iron or Steel Specifications: Overall Length: 40 in (101.6 cm) Weight: 1.8 lbs (0.8 kg) Input Power: Three (3) standard 9-volt alkaline batteries Battery Life: 60 Hours Frequency: 16.5 kHz Audio: Speaker pitch increases in frequency proportional to gradient field intensity Visual: LCD display with bar graph indicating polarity and relative strength of signal. Also provides low battery indication Operating Temperature: Neg 13 degrees to 140 degrees F Exterior Sensor Tube: Aircraft grade aluminum

Read more less

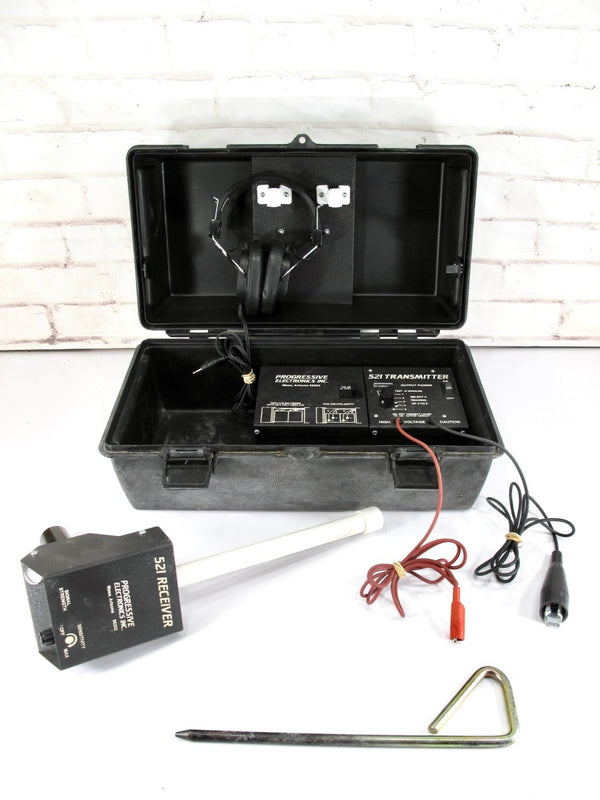

Adjustable transmit power allows selection of the best signal for maximum performance. High-power output offers extended range and use on higher resistance wire paths other locators can't touch. The 521's receiver provides both audible and visual indications of signal strength that make locating valves, wire breaks and nicked insulation faults a breeze. Pistol style design of the receiver makes it easy to quickly locate even the longest wire path while the rugged headphones block ambient noise and improve "feel" for the signal.

Read more less

The versatile transmitter works for just about any application. It features 70+ direct-connect frequencies, multiple broadcast frequencies and optional dual connection direct-connect leads for multiple utility connections. When you can't make a direct connection, the transmitter's antenna allows excellent inductive tracing.

Read more less

Locating specific pipes, cables and utility RF markers in large underground networks is very complex. Ground distortion effects, caused by differing soil types and proximity to other conductors, make the user’s job more difficult and time-consuming. The most important requirements for a locator under these circumstances are ease of use, accuracy and reliability. Radiodetection’s RD7000+ Utility Locator range addresses these needs with many features that deliver accurate, reliable and repeatable performance. The new RD7000+ marker locators – denoted ‘M’ add RF marker locating to the range, with automatic marker depth estimation and Bluetooth® connectivity as standard.

Read more less

High levels of sensitivity allow you to find what you’re looking for quickly, without the risk of passing over your target. 85% of the Surveyor market can’t be wrong. Easy-To-Use The GA-52Cx Locator detects the magnetic field of iron and steel objects, with unmatched sensitivity. Only two Controls! Designed for one-hand operations, the On/Off-Sensitivity and Volume controls are located on the underside of the cover. This provides easy access, protects the knobs and contributes to their overall ruggedness and dependability. High Sensitivity with 5 Levels Audio Output No response to aluminum, brass, or copper HeliFlux® sensors Modular construction; high performance components

Read more less
