Description

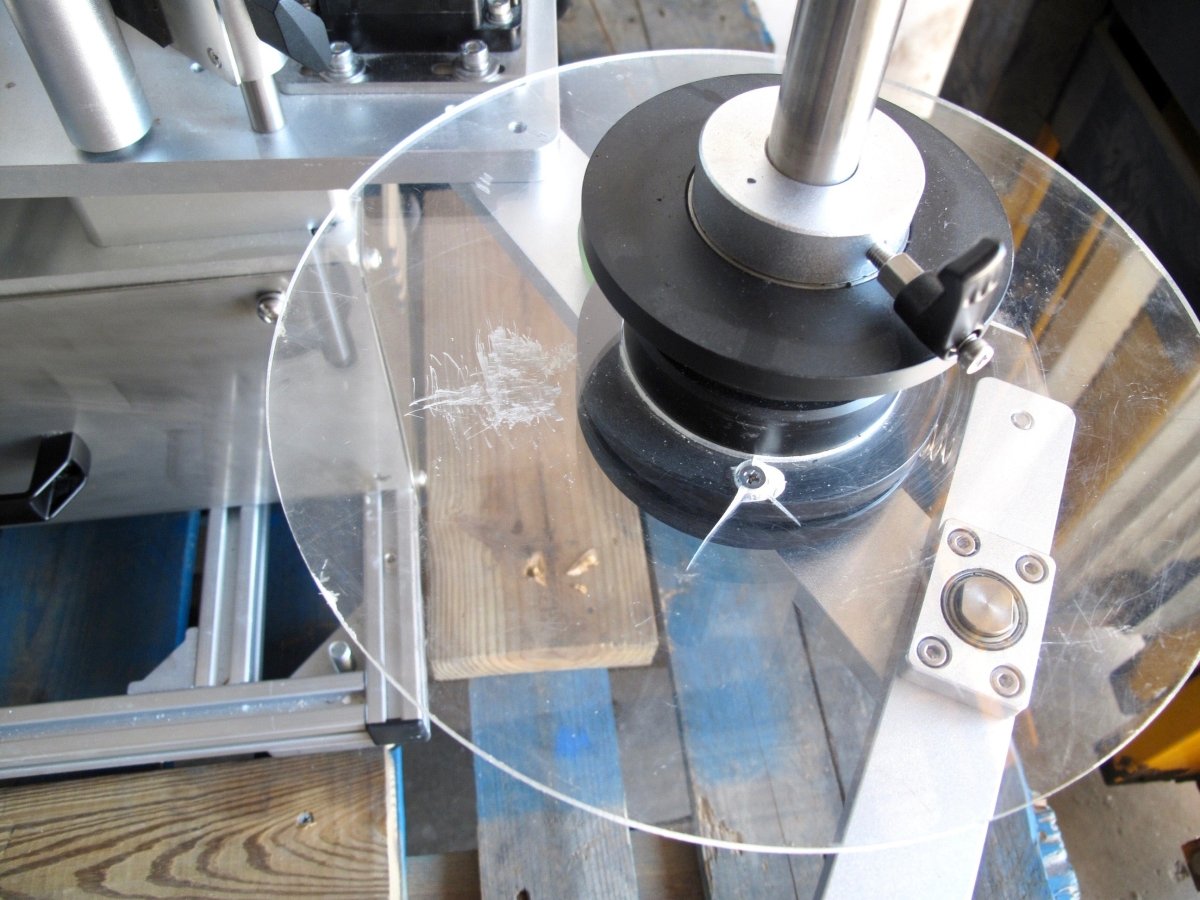

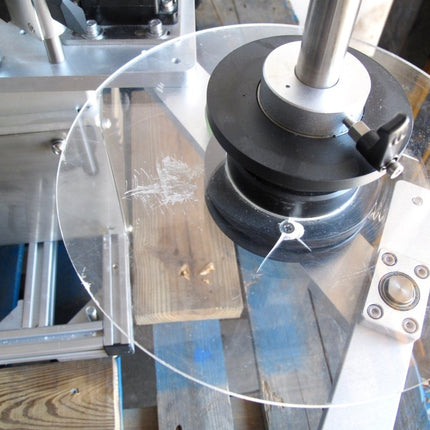

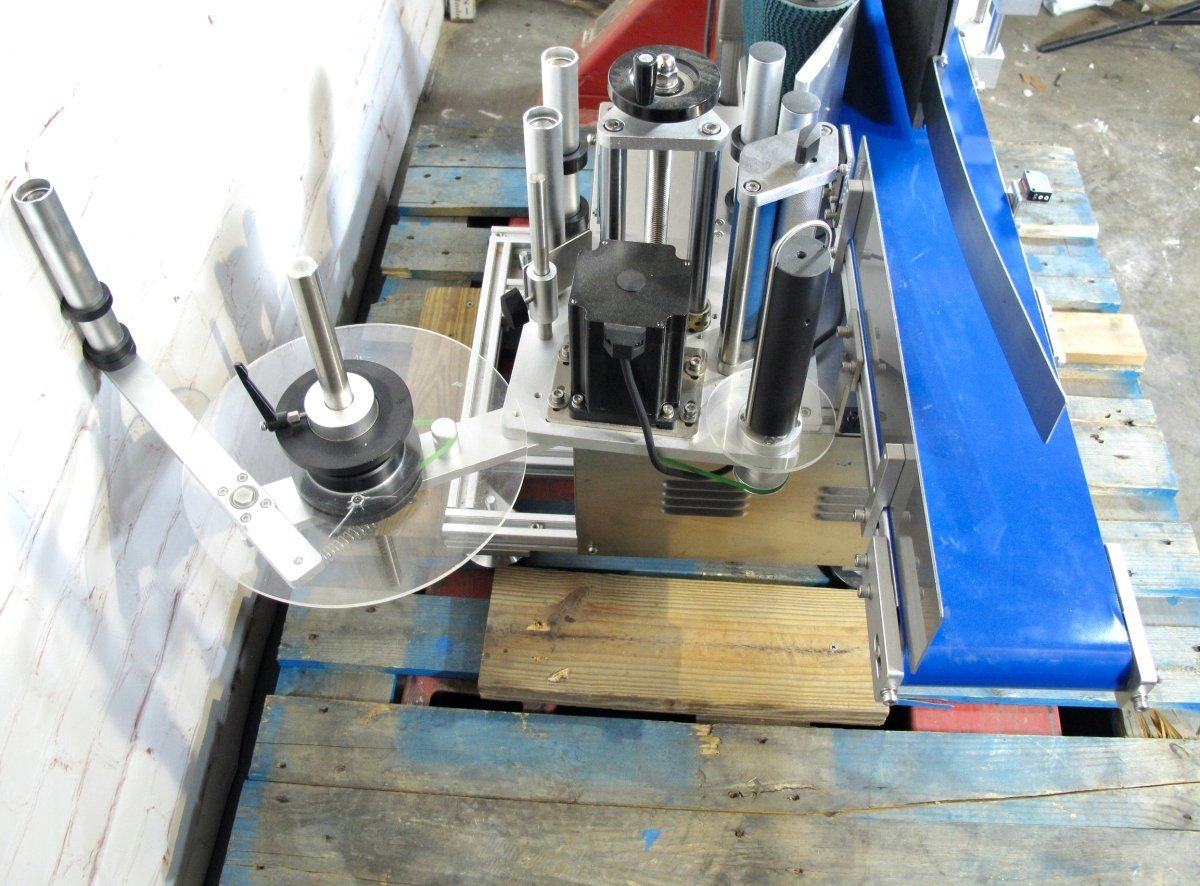

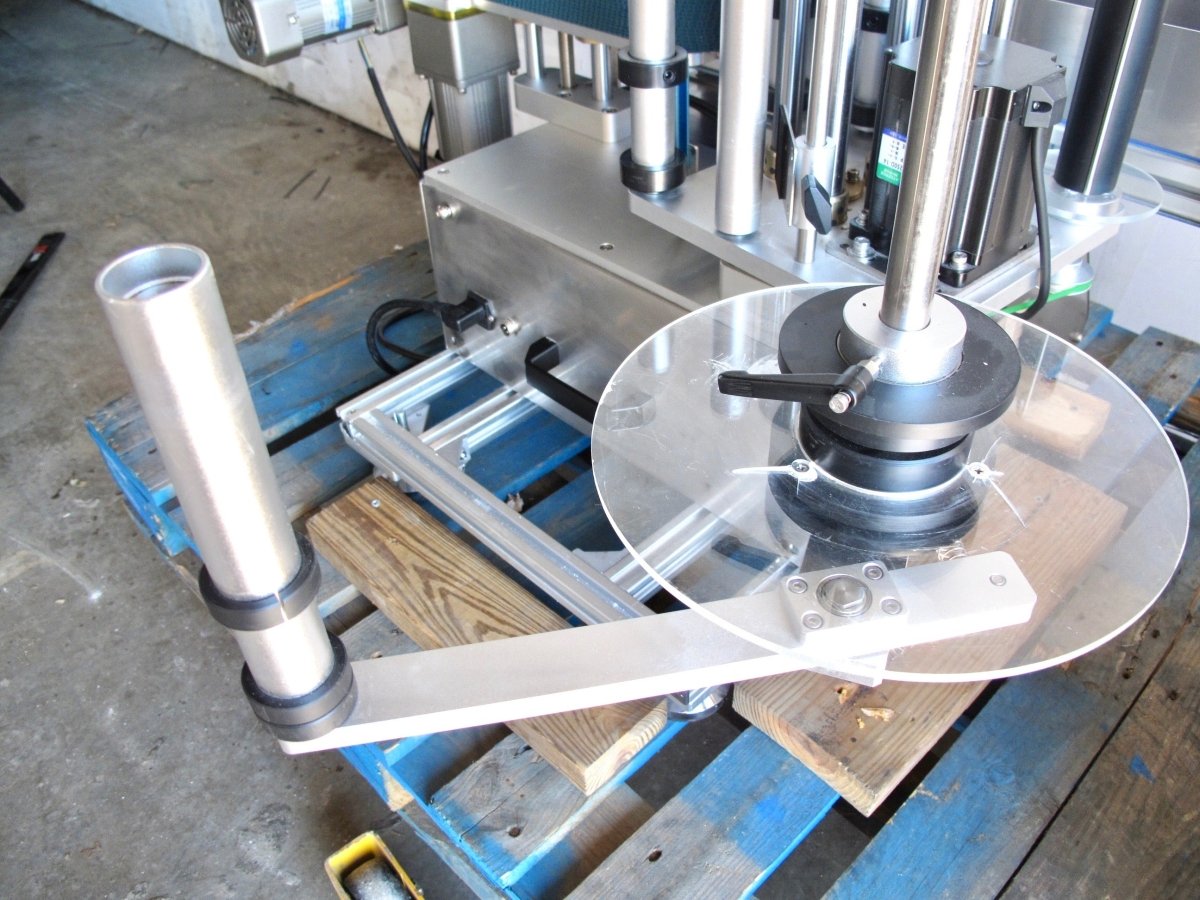

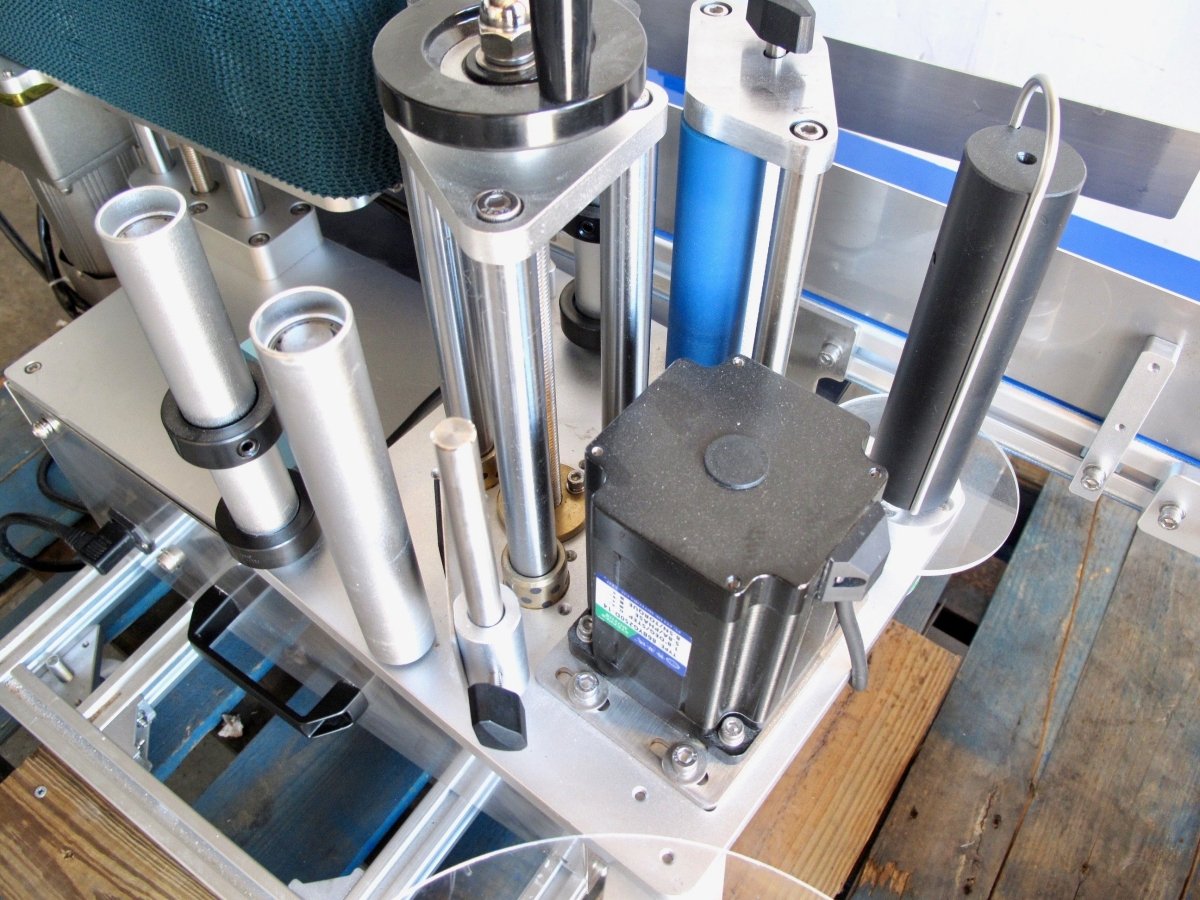

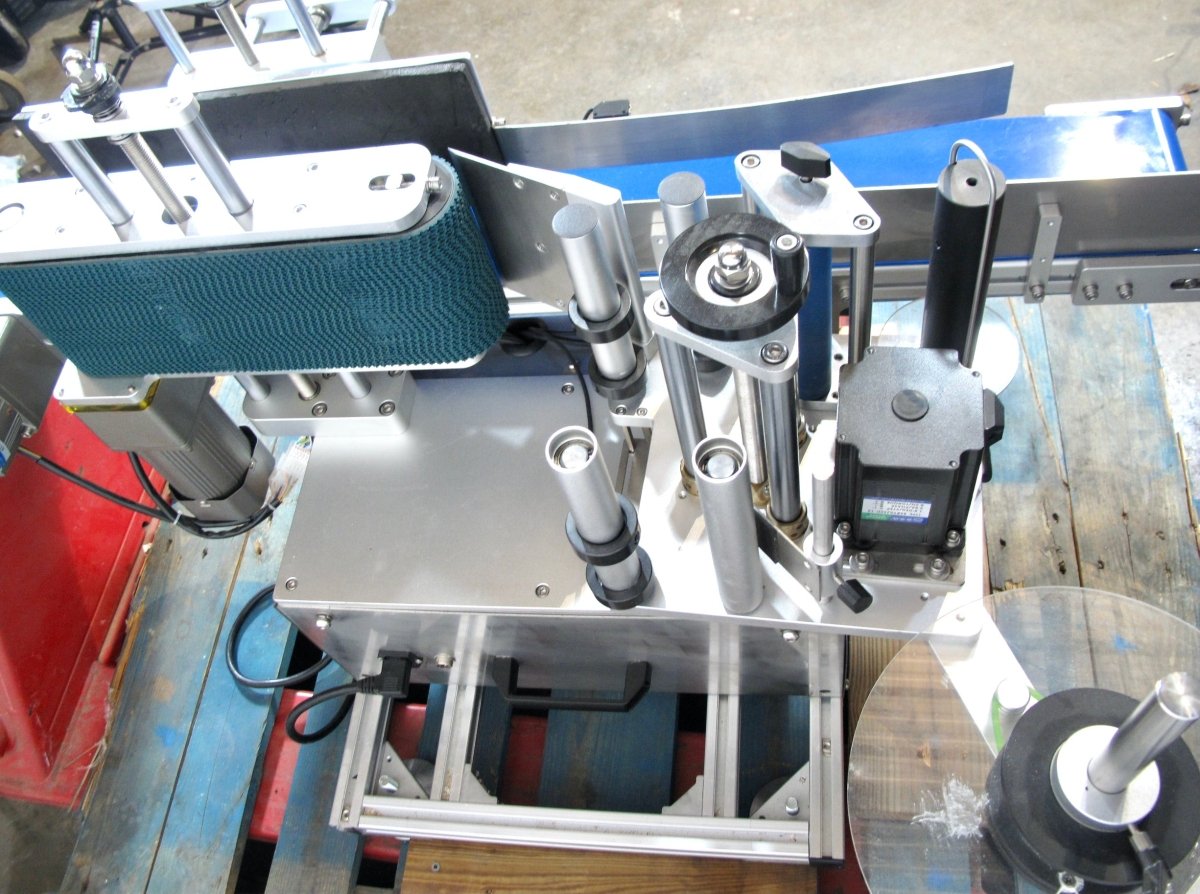

This round bottle labeling is mostly suitable for labeling round object with label length that covers less than half of the bottle circumference, due to the mechanical structure building of this machine, it’s not very good at the labeling long labels that covers all around bottle. You can still use it if you don’t care too much about the miss alignment of the head and tail of the label, usually it will result in 1~2mm miss-alignment. For better alignment accuracy of labeling long labels, please choose another machine with bottle clamping mechanism.

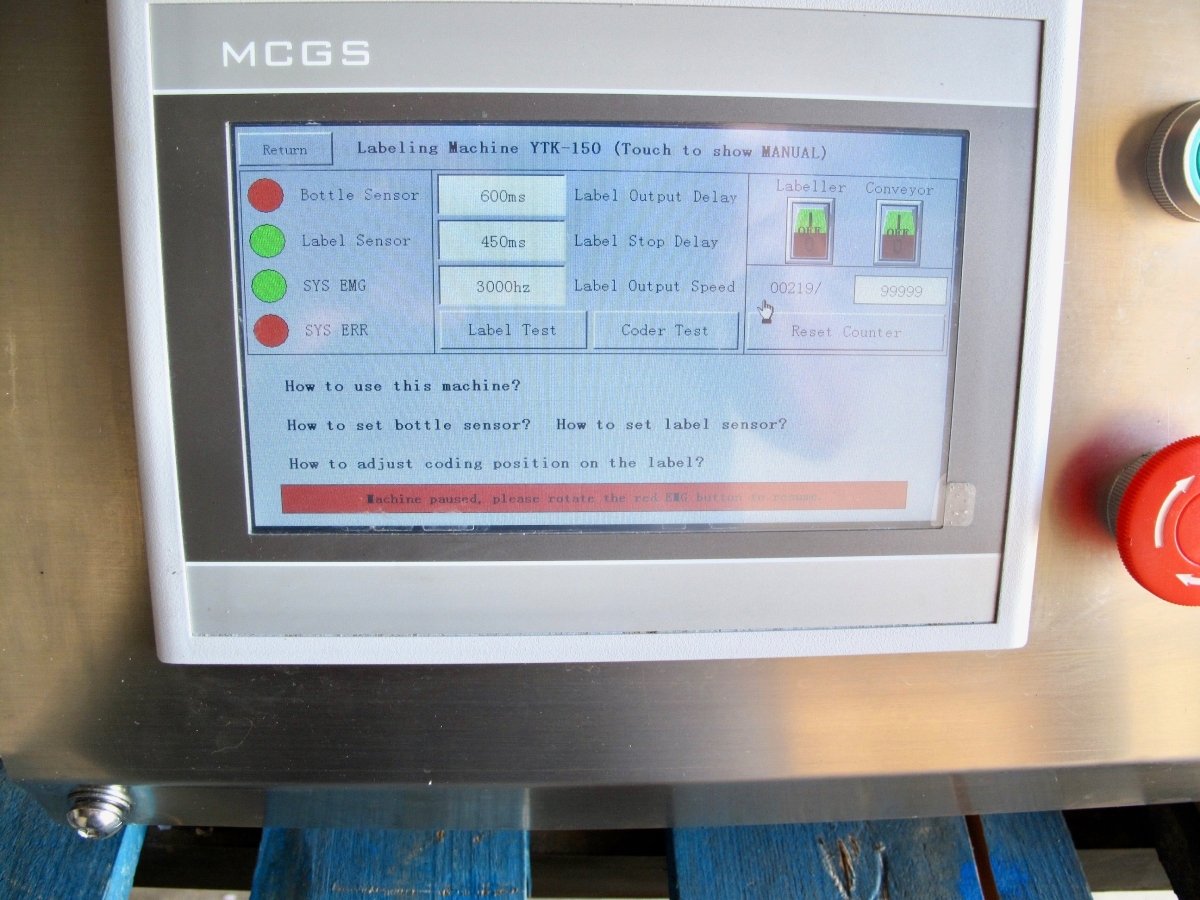

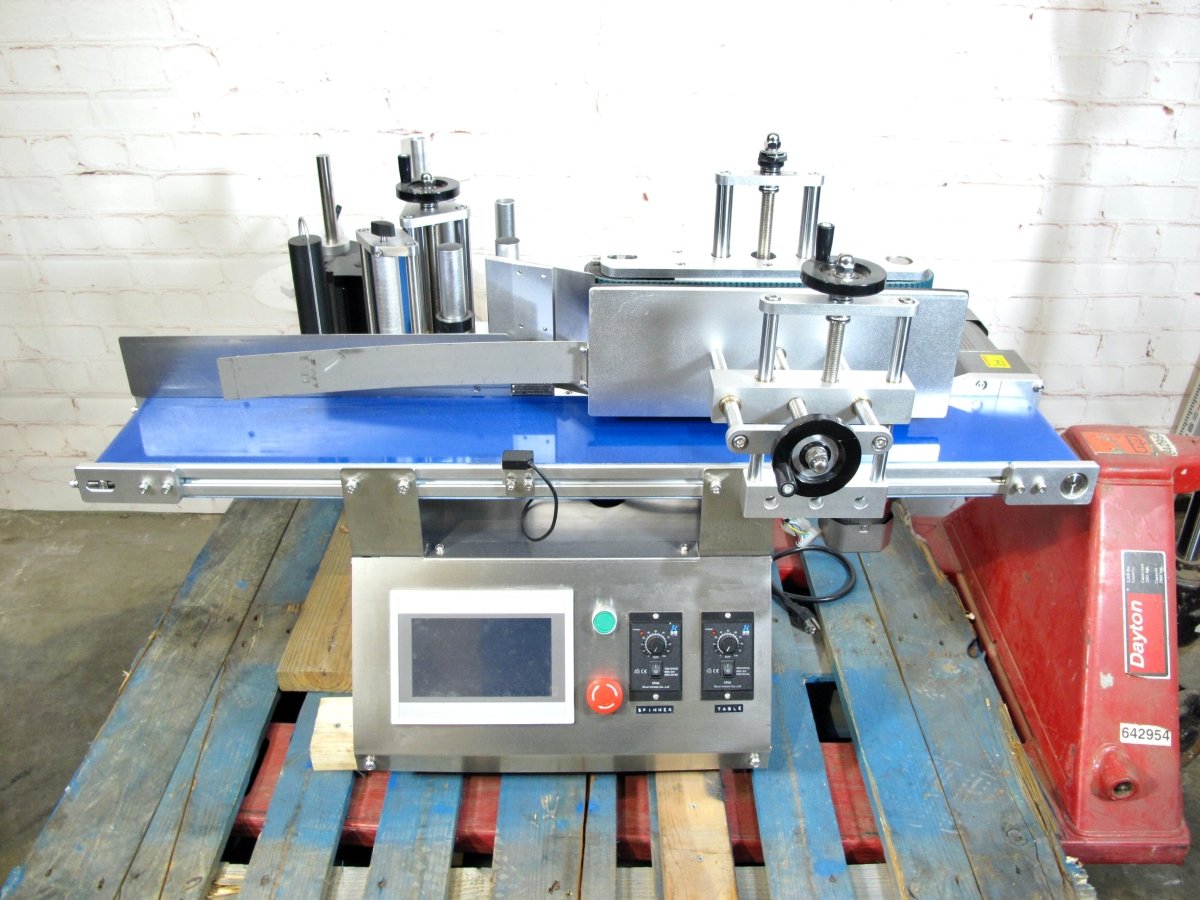

Bottle Sensor Indicator
This indicator will be on when the bottle passing by or block the bottle sensor, after that, it will send signal to the label motor to output the label if the Labeller switch is on.
Label Sensor Indicator
This indicator showing the label sensor status, it will be on when the sensor sees the gap between each sensor, then it sends signal to the label motor to stop output label.
This sensor needs to be set with your own label, for this part, please referring to How To Set Label Sensor at the end of this manual.
SYS EMG
If this is on, that means the EMG button is pressed and machine will stop all actions, you can rotate the red button to resume. You should always press down this emergency button if the machine is doing something wrong or not working as expected.
SYS ERR
If this is on, that means machine itself has some issue, you can try to reboot the machine to clear this error, If the errors still persist, please contact us for
support. Our technician will help you diagnose and provide solutions.
When bottle sensor sees a bottle, it'll signal label motor to dispense
label. We use this setting to delay this process to avoid premature
label output.
Labeller Switch
This switch controller whether if the label motor should output label or not when the bottle sensor is triggered. Keep this switch off when you’re adjusting the bottle sensor, otherwise you’ll wasting labels and get messy.

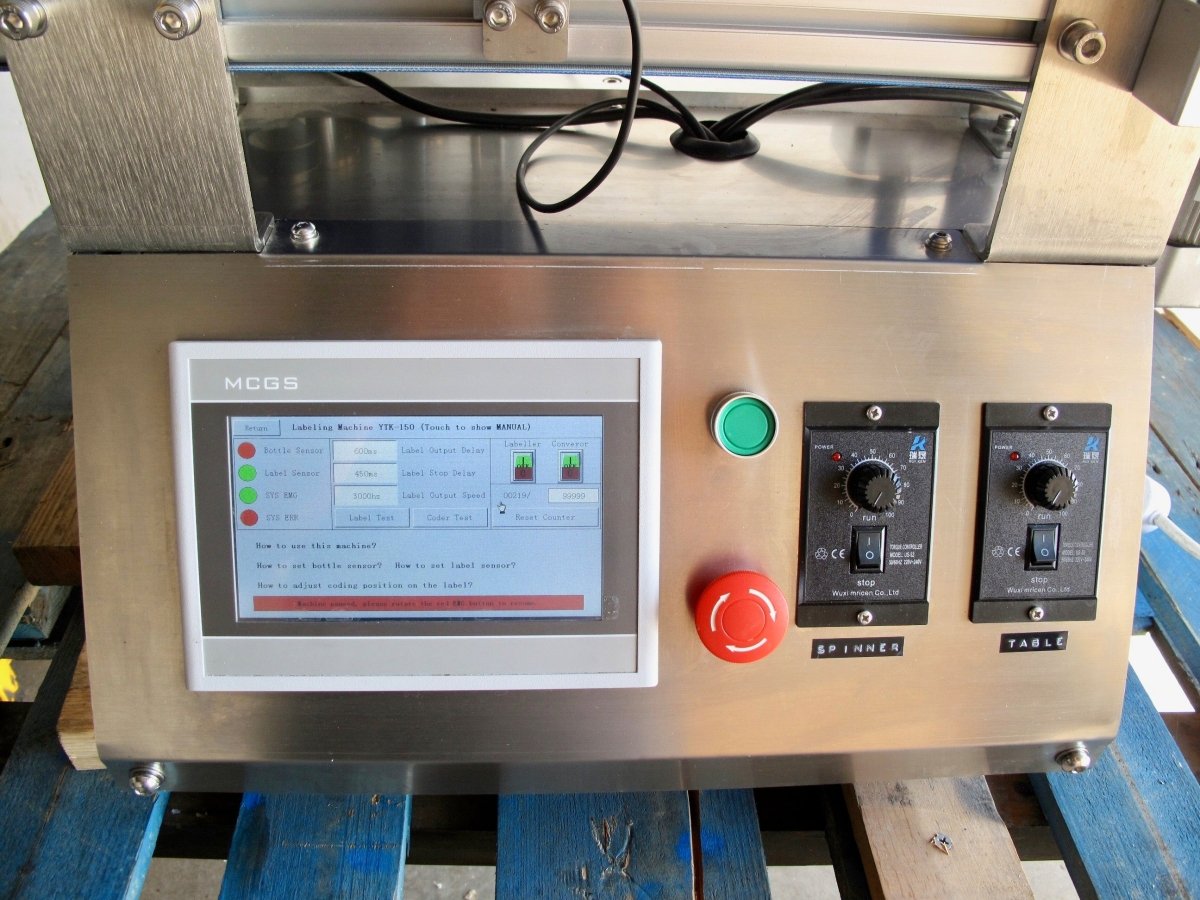

Conveyor Switch

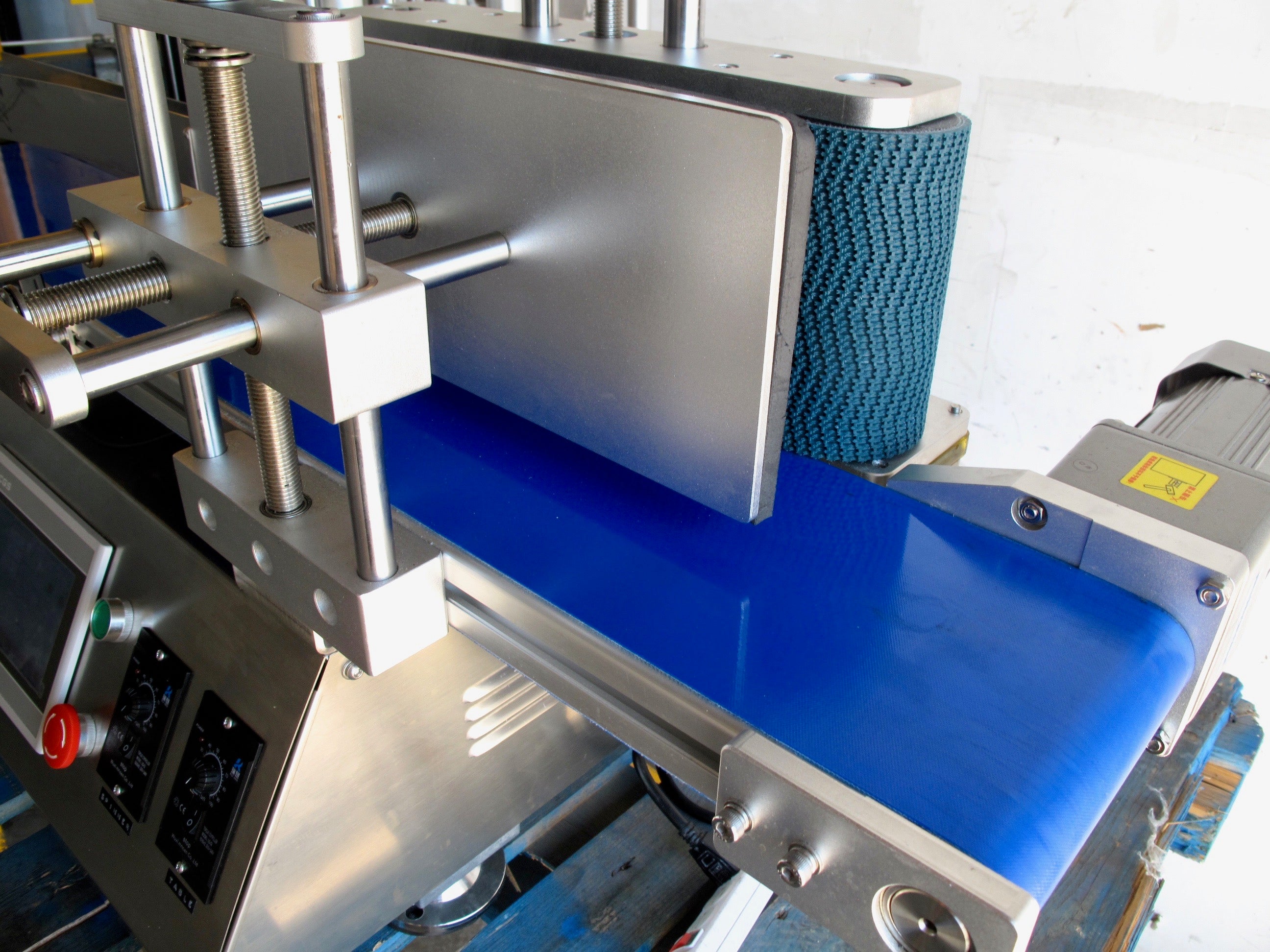

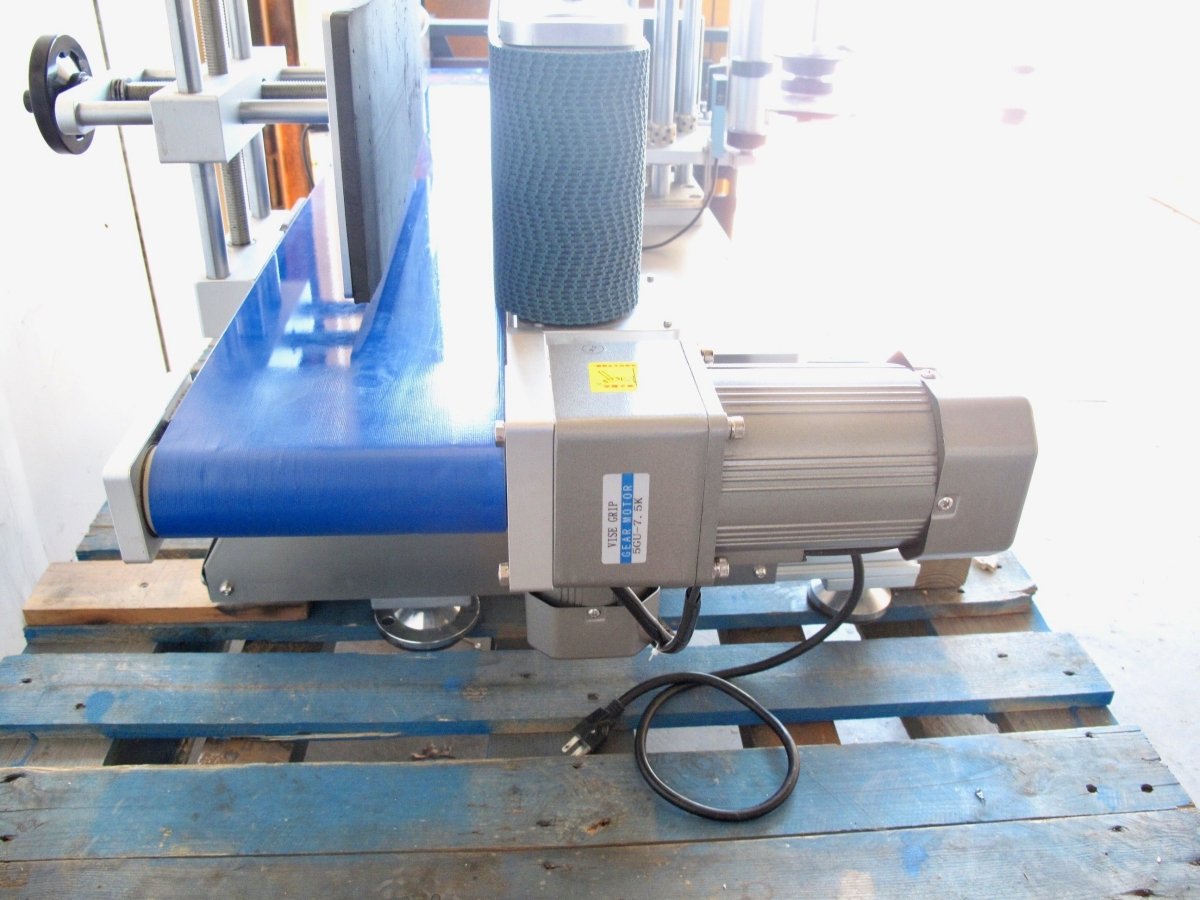

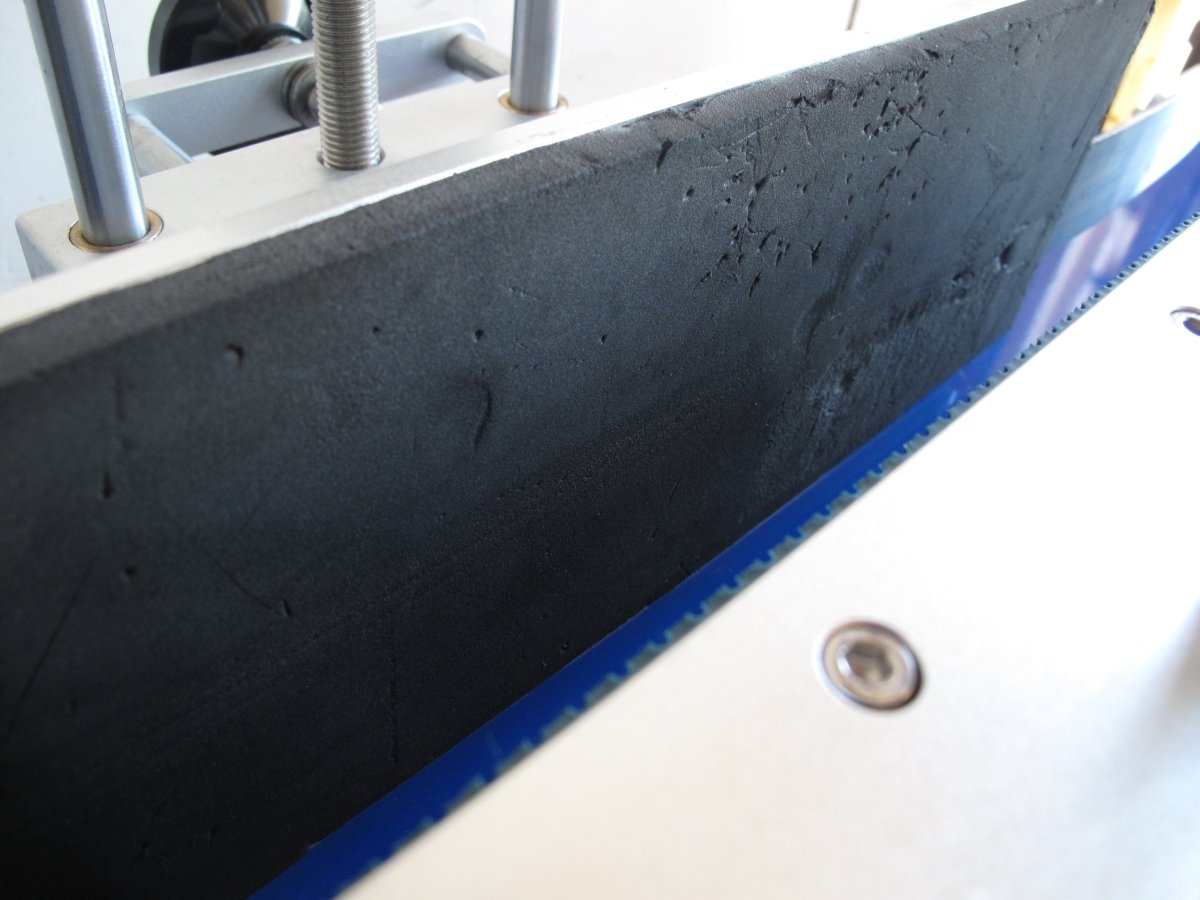

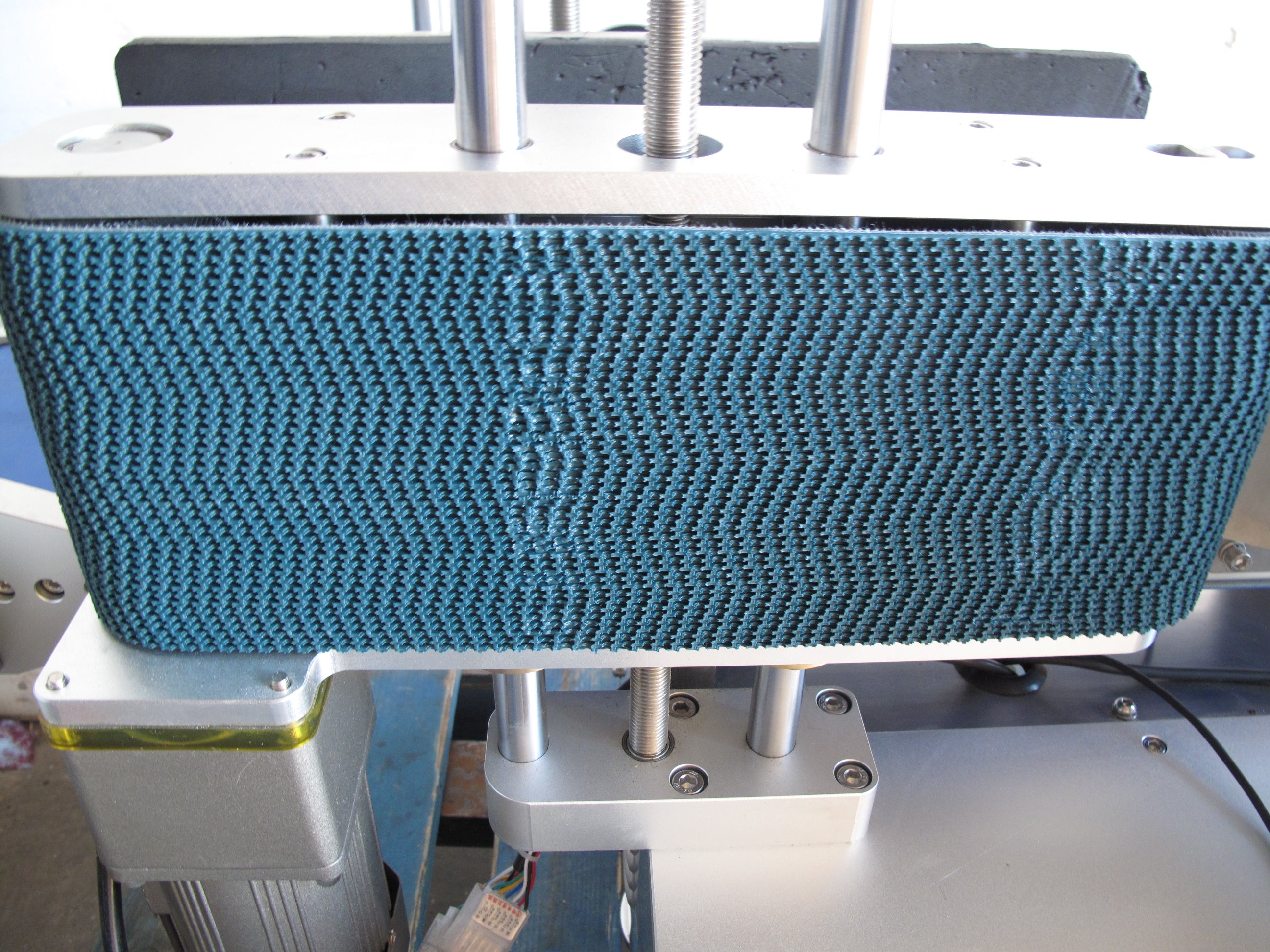

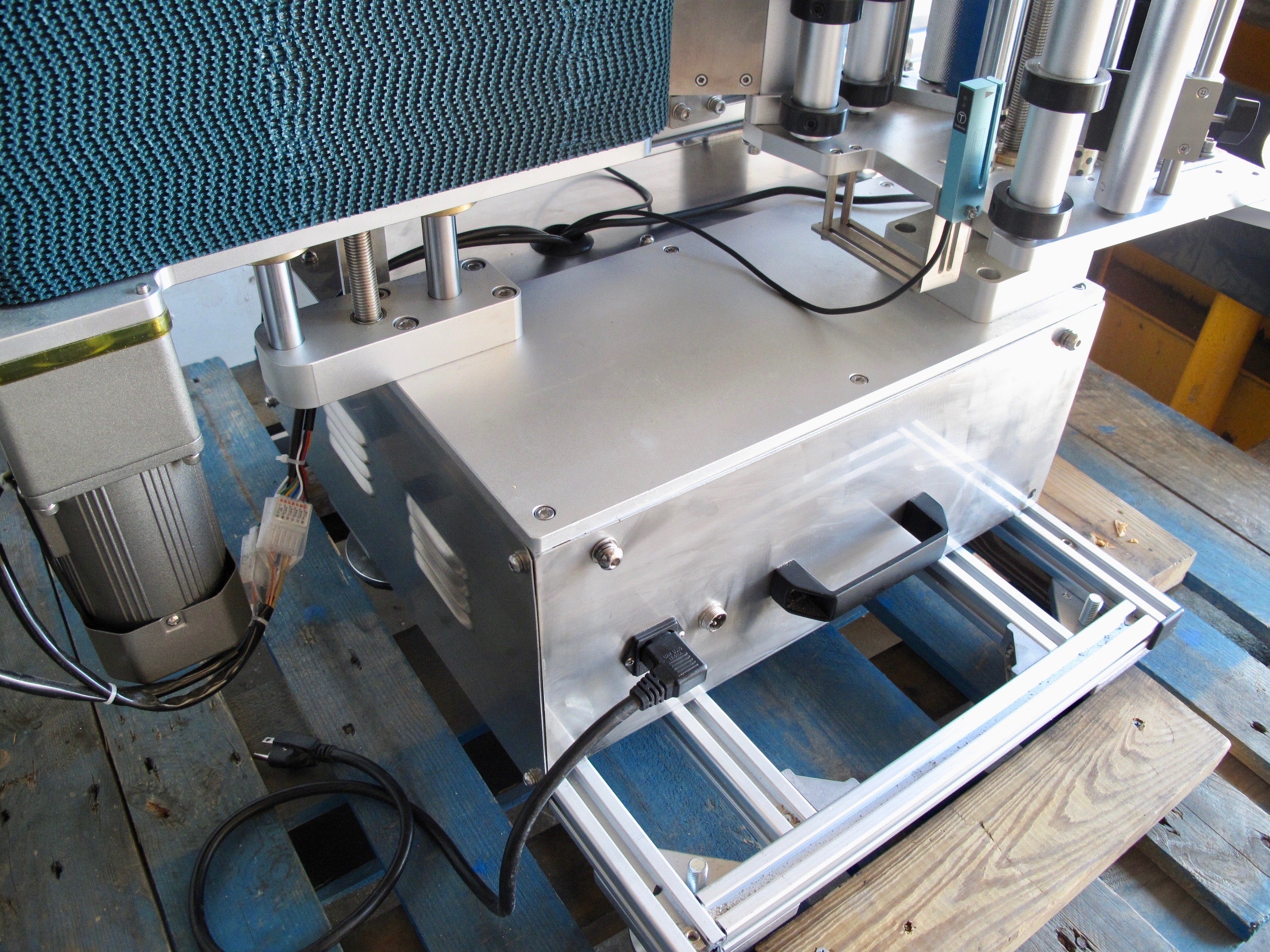

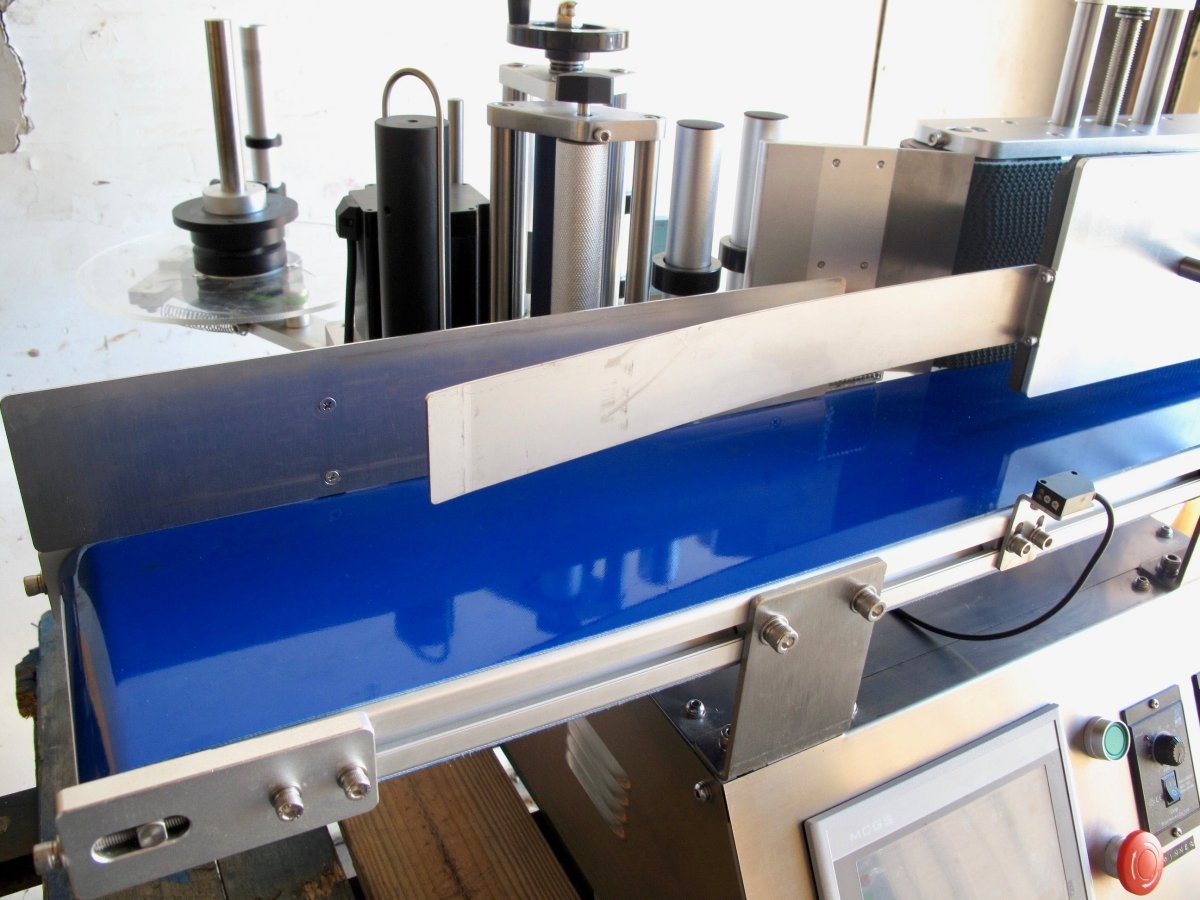

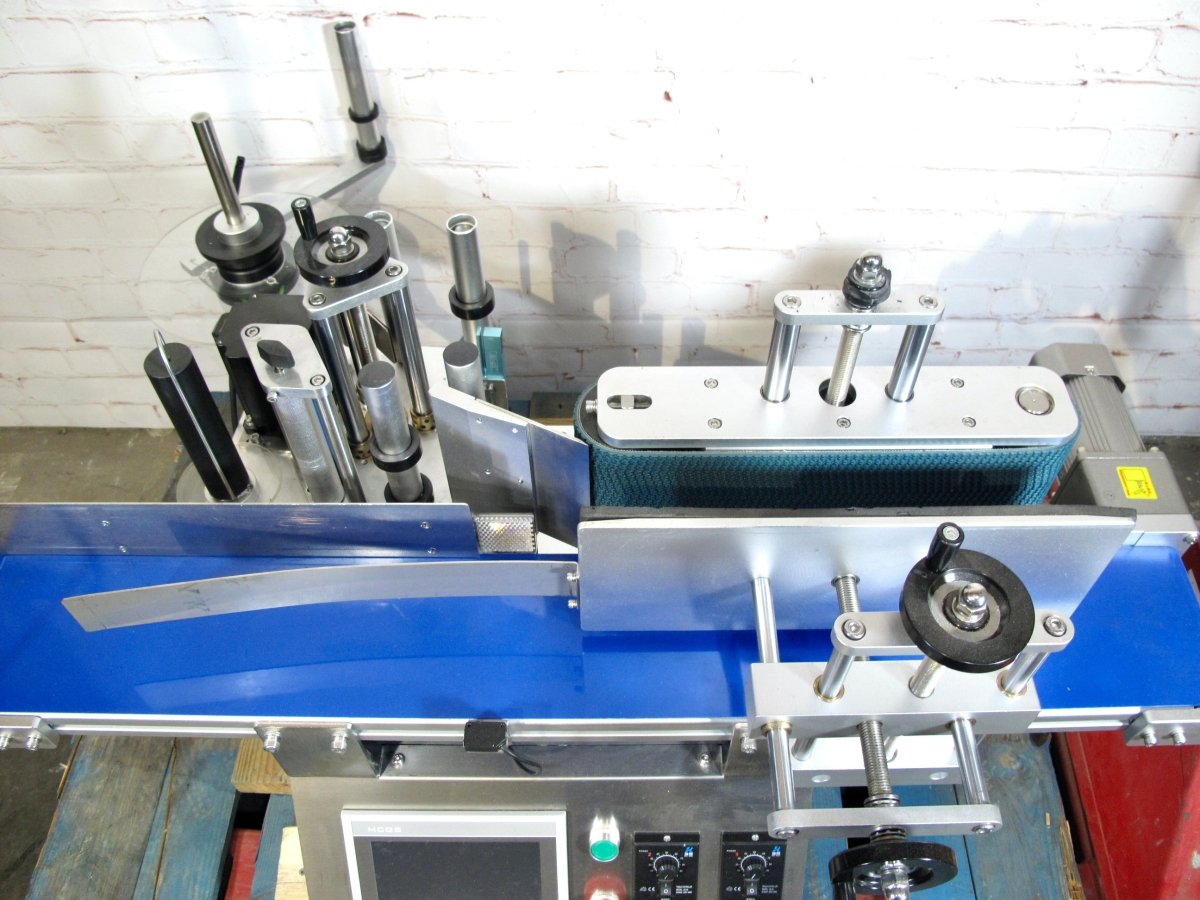

This switch controls the power of the two speed controllers on the panel which controls two conveyors on the machine. The horizontal conveyor is responsible for conveying bottles, the vertical one is for rubbing against the bottle and make the bottle rotating.
Counter
We have a counter which shows current and max counting number, you can use this function to manage your production. The reset button will reset the current counting to zero.
|
Model
|
YTK-150
|
|
Voltage
|
AC220V/110V 50-60HZ
|
|
Power
|
450W
|
|
Product
|
Round bottle
|
|
Labeling speed
|
10-40 times/min
|
|
Labeling accuracy
|
±1mm
|
|
Min.label roll inner diameter
|
76mm
|
|
Max. label roll out diameter
|
φ260mm
|
|
Product size (Bottle diameter)
|
Φ20-125mm
|
|
Label size
|
W: 10-150mm, L:0-200mm，H：0-220mm
|
|
Machine size
|
1135*650*720mm
|
|
Machine weight
|
138 kg
|
