Audison SR 1Dk Monoblock 1200W RMS Power Amplifier with Crossover

Description

SR 1Dk is a powerful mono Digital amplifier representing maximum expandability in terms of power and configuration capability. Featuring a PRE OUT recreated from the hi-level speakers inputs and by-passable full configurable crossover along with its ability to operate in "cascade" mode linking many amplifiers together, its extreme versatility makes it a premium product
  • Nominal power (RMS) @12 VDC; 1% THD :
  • 1 Ch @ 4 Ω 420 W x 1
  • Output power (RMS) @14.4 VDC; 1% THD:
  • 1 Ch @ 4 Ω 600 W x 1
  • 1 Ch @ 2 Ω 940 W x 1
  • 1 Ch @ 1 Ω 1200 W x 1
  • Dimensions: WxHxD (inches) 8”7/16 x 2”1/8 x 16”1/16
  • PRE-OUT pass-through from high level SPEAKERS-IN input
  • Fully by-passable crossover FILTERS
  • Removable panel to hide and protect controls
  • Monoblock aluminium heatsink construction
  • Fanless convection cooling system
  • Built-in SUBWOOFER volume control module, requires only the connection of optional VCRA controller
  • Strip fuse located on the control panel for easy replacement
  • Connections: Power supply terminals accepts 7 mm diameter (4 AWG) cable, Speaker terminals accepts 4.5 mm diameter (8 AWG) cables, Hi Level speaker and remote turn-on terminals equipped
  • with removable connectors with screw fastening
  • “D” class topology, delivering 600W at 4 ohms and 1200W
  • power at 1 ohm
  • Ability to “bridge” with another SR 1Dk for increased power output up 2400 W @ 2 ohms
  • “Amp Chain Mode” function to connect amplifiers together using only the first as the “master” for amplifier controls
  • Continuously adjustable phase control
  • Adjustable Subsonic Filter
  • Frequency and level adjustable parametric equalizer
  • Adjustable LO-pass filter 24 dB

Power Supply:

  • Power supply voltage: 11÷15 VDC
  • Idling current: 2 A
  • Switched off: < 0.01 mA
  • Remote IN voltage: 7÷15 VDC (1 mA)
  • Remote OUT voltage: 11÷15 VDC (15 mA)
  • Internal fuse (AFS): 80 A
  • Consumption @ 14.4 VDC, 1 Ω,
  • Max Musical Power: 70 A

Amplifier Stage:

  • Distortion - THD (100 Hz @ 4 Ω): 0.3 %
  • Bandwidth (-3 dB): 18 ÷ 550 Hz
  • S/N ratio (A weighted, 1 V): 85 dB
  • Damping factor (100 Hz @ 4 Ω): 150
  • Input sensitivity (PRE IN): 0.3 ÷ 5 VRMS
  • Input sensitivity (Speaker In): 1 ÷ 15 VRMS
  • Input impedance (PRE IN): 15 kΩ
  • Input impedance (Speaker In): 100 Ω
  • Load impedance (Min):
  • 1 Ch 1 Ω

Inputs / Filters:

  • Inputs Pre IN / Speaker IN
  • Output Pre OUT / MASTER / SLAVE
  • Filter LO-pass ON/OFF 50 ÷ 220 Hz @ 24 dB/oct
  • Subsonic OFF ÷ 40 Hz @ 24 dB/oct
  • Equalizer 0 ÷ + 9 dB @ 40 ÷ 90 Hz
  • Phase Continuos 0° ÷180°
  • Sub remote volume control OFF ÷ + 6dB

Audison SR 1Dk Monoblock 1200W RMS Power Amplifier with Crossover

Product form

$249.99

1 in stock 4-7 business day delivery

SR 1Dk is a powerful mono Digital amplifier representing maximum expandability in terms of power and configuration capability. Featuring a... Read more

ConditionUsed… Read more

Model: SR 1Dk

Working Status - Full Functionality - This item is in full working order with all features operational.

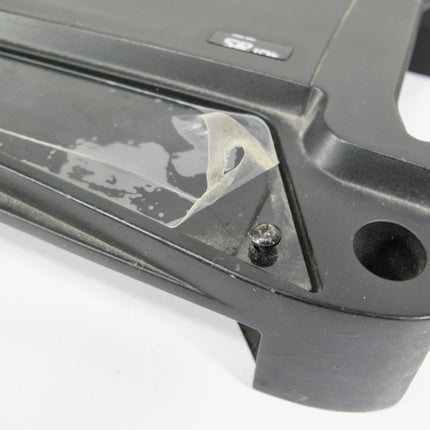

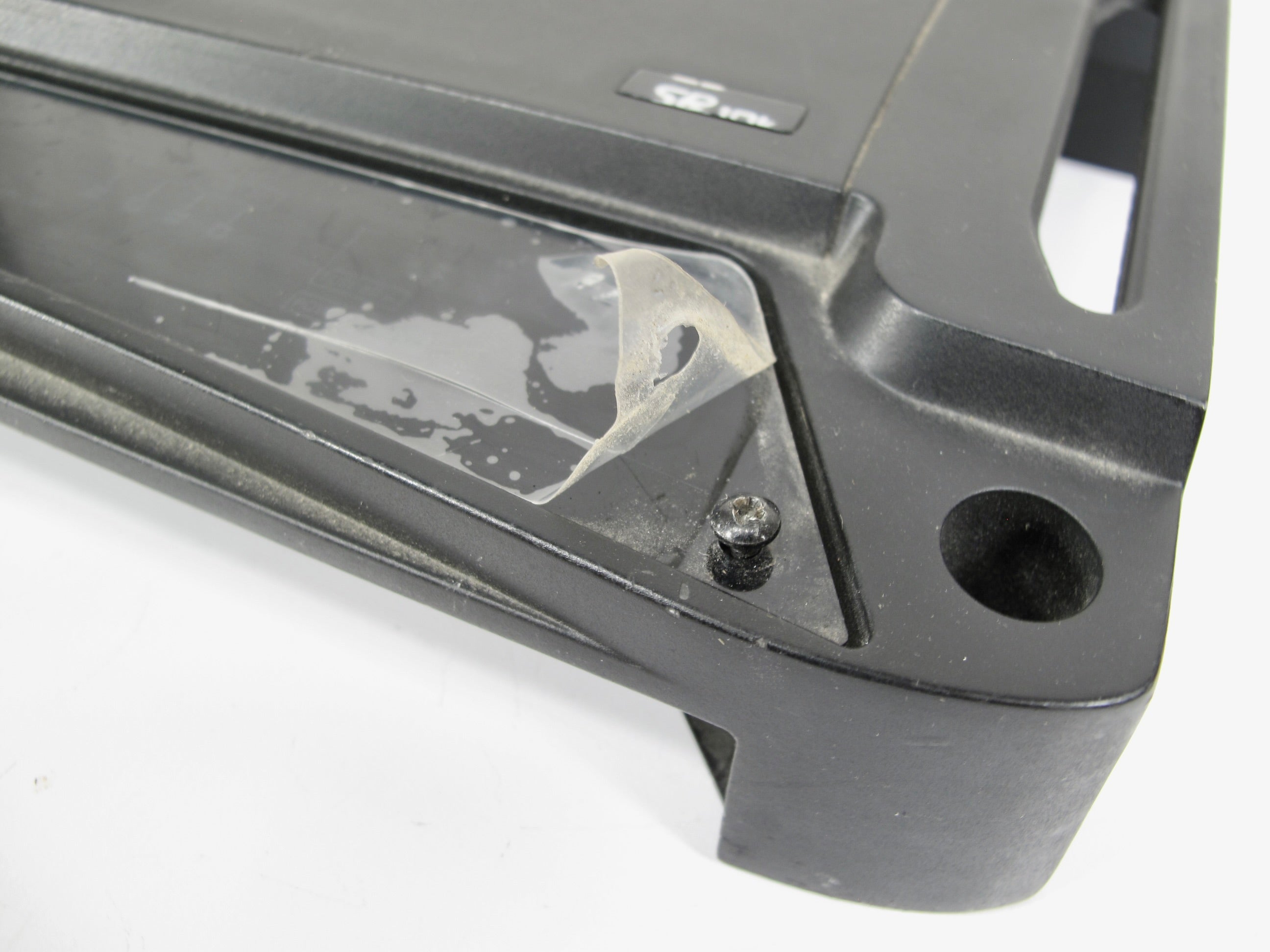

Cosmetics - Average - It looks to be in average cosmetic shape for an item of this type with a typical amount of cosmetic wear to a comparable item of its age and use as shown.

Included items - SR 1Dk amp only

  • Free shipping from the US

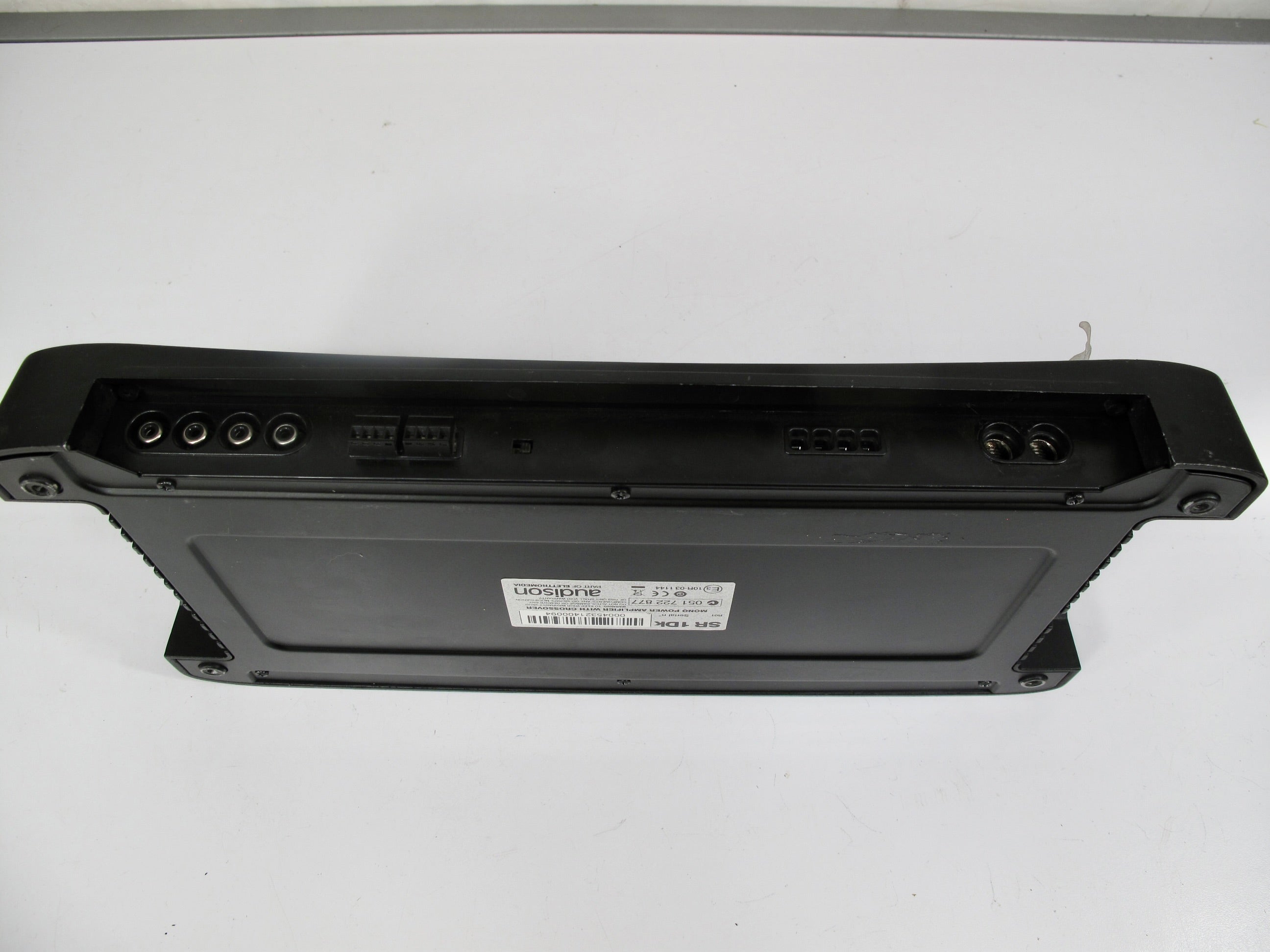

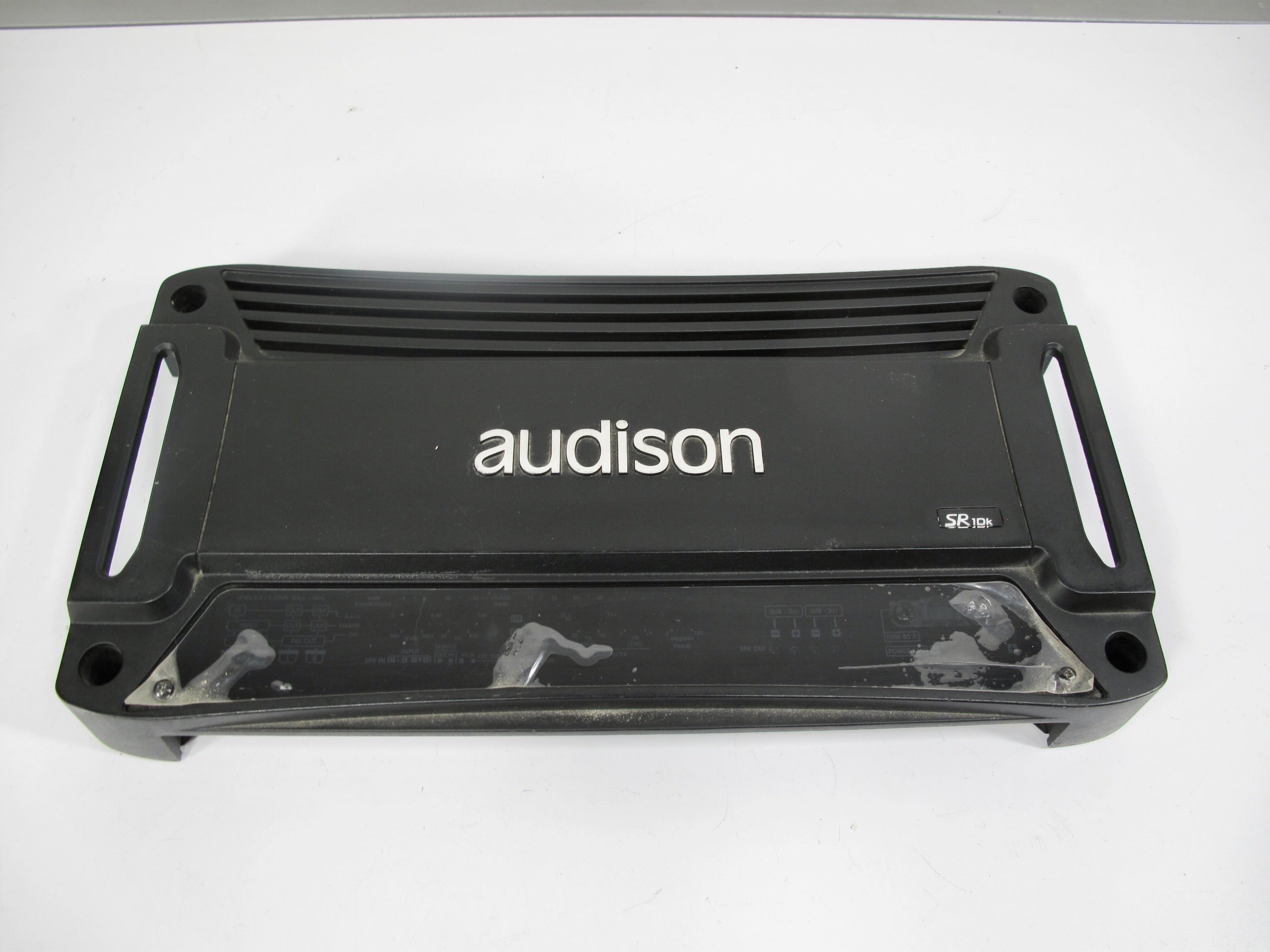

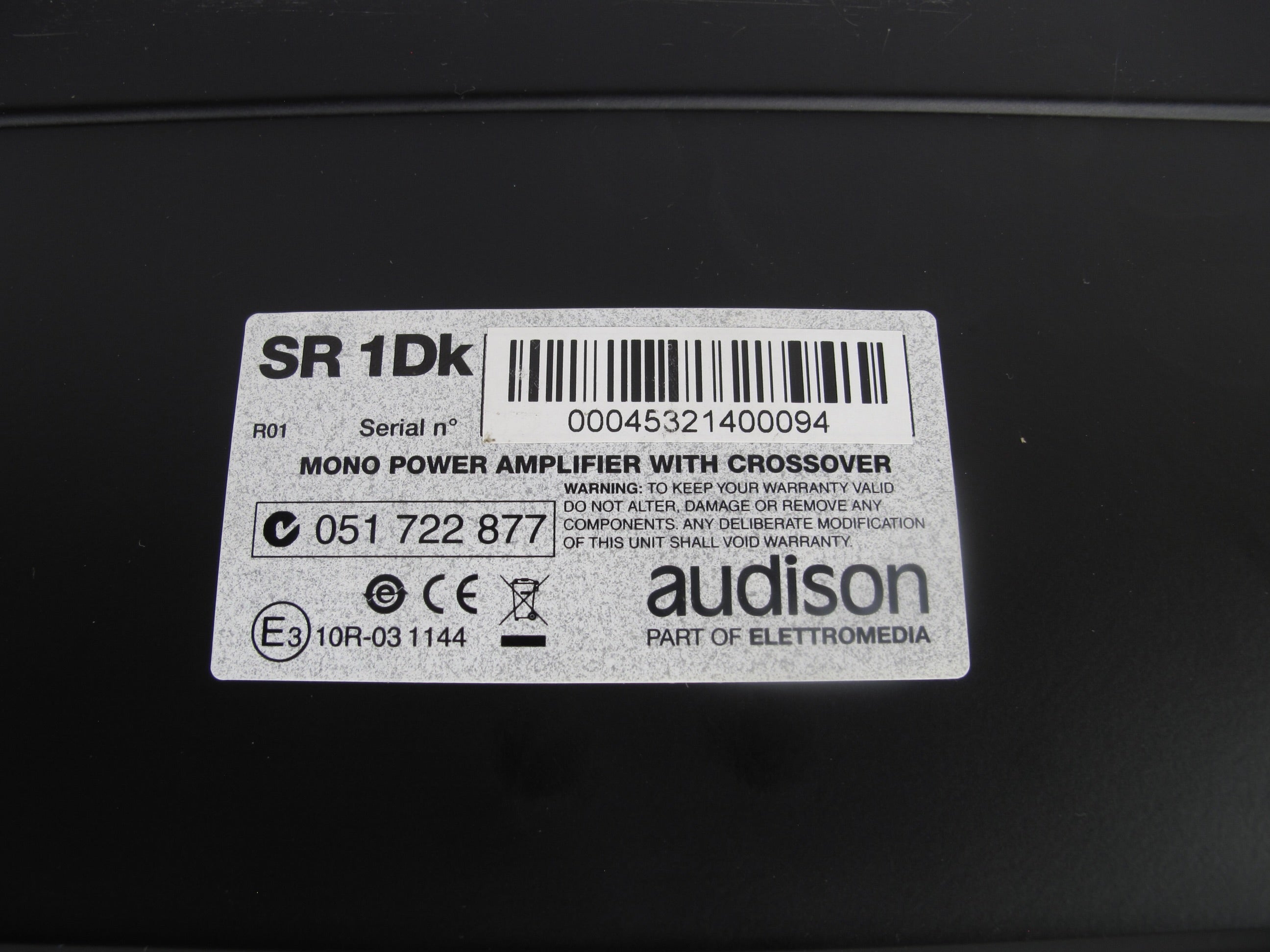

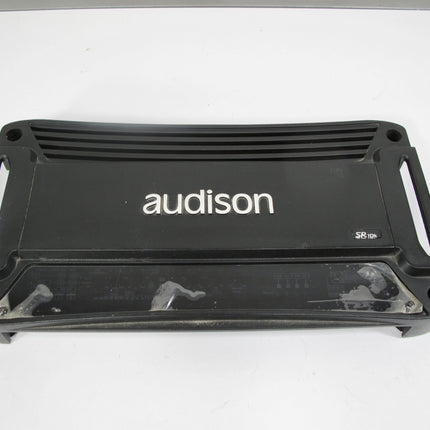

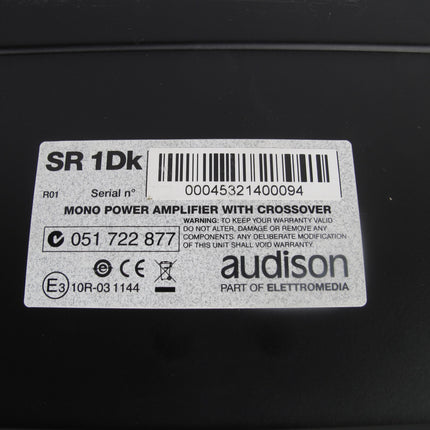

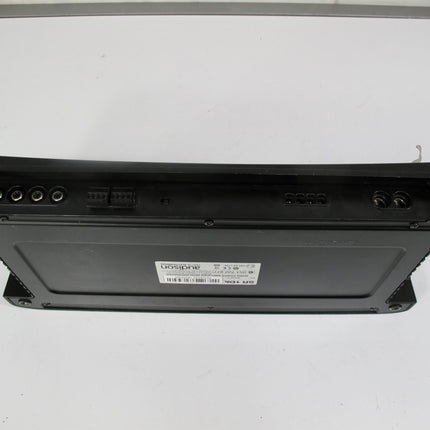

  • Photos shown of actual item.

    • Guaranteed secure & safe checkout.

    Available now, with no guarantee we’ll ever get another.

    Product identifiers
    GTIN/UPC/EAN - 8018823089999

    Description

    SR 1Dk is a powerful mono Digital amplifier representing maximum expandability in terms of power and configuration capability. Featuring a PRE OUT recreated from the hi-level speakers inputs and by-passable full configurable crossover along with its ability to operate in "cascade" mode linking many amplifiers together, its extreme versatility makes it a premium product
    • Nominal power (RMS) @12 VDC; 1% THD :
    • 1 Ch @ 4 Ω 420 W x 1
    • Output power (RMS) @14.4 VDC; 1% THD:
    • 1 Ch @ 4 Ω 600 W x 1
    • 1 Ch @ 2 Ω 940 W x 1
    • 1 Ch @ 1 Ω 1200 W x 1
    • Dimensions: WxHxD (inches) 8”7/16 x 2”1/8 x 16”1/16
    • PRE-OUT pass-through from high level SPEAKERS-IN input
    • Fully by-passable crossover FILTERS
    • Removable panel to hide and protect controls
    • Monoblock aluminium heatsink construction
    • Fanless convection cooling system
    • Built-in SUBWOOFER volume control module, requires only the connection of optional VCRA controller
    • Strip fuse located on the control panel for easy replacement
    • Connections: Power supply terminals accepts 7 mm diameter (4 AWG) cable, Speaker terminals accepts 4.5 mm diameter (8 AWG) cables, Hi Level speaker and remote turn-on terminals equipped
    • with removable connectors with screw fastening
    • “D” class topology, delivering 600W at 4 ohms and 1200W
    • power at 1 ohm
    • Ability to “bridge” with another SR 1Dk for increased power output up 2400 W @ 2 ohms
    • “Amp Chain Mode” function to connect amplifiers together using only the first as the “master” for amplifier controls
    • Continuously adjustable phase control
    • Adjustable Subsonic Filter
    • Frequency and level adjustable parametric equalizer
    • Adjustable LO-pass filter 24 dB

    Power Supply:

    • Power supply voltage: 11÷15 VDC
    • Idling current: 2 A
    • Switched off: < 0.01 mA
    • Remote IN voltage: 7÷15 VDC (1 mA)
    • Remote OUT voltage: 11÷15 VDC (15 mA)
    • Internal fuse (AFS): 80 A
    • Consumption @ 14.4 VDC, 1 Ω,
    • Max Musical Power: 70 A

    Amplifier Stage:

    • Distortion - THD (100 Hz @ 4 Ω): 0.3 %
    • Bandwidth (-3 dB): 18 ÷ 550 Hz
    • S/N ratio (A weighted, 1 V): 85 dB
    • Damping factor (100 Hz @ 4 Ω): 150
    • Input sensitivity (PRE IN): 0.3 ÷ 5 VRMS
    • Input sensitivity (Speaker In): 1 ÷ 15 VRMS
    • Input impedance (PRE IN): 15 kΩ
    • Input impedance (Speaker In): 100 Ω
    • Load impedance (Min):
    • 1 Ch 1 Ω

    Inputs / Filters:

    • Inputs Pre IN / Speaker IN
    • Output Pre OUT / MASTER / SLAVE
    • Filter LO-pass ON/OFF 50 ÷ 220 Hz @ 24 dB/oct
    • Subsonic OFF ÷ 40 Hz @ 24 dB/oct
    • Equalizer 0 ÷ + 9 dB @ 40 ÷ 90 Hz
    • Phase Continuos 0° ÷180°
    • Sub remote volume control OFF ÷ + 6dB
