Aviom AN-16/i 16 Channel Analog Input Module w/ Power Supply

Description

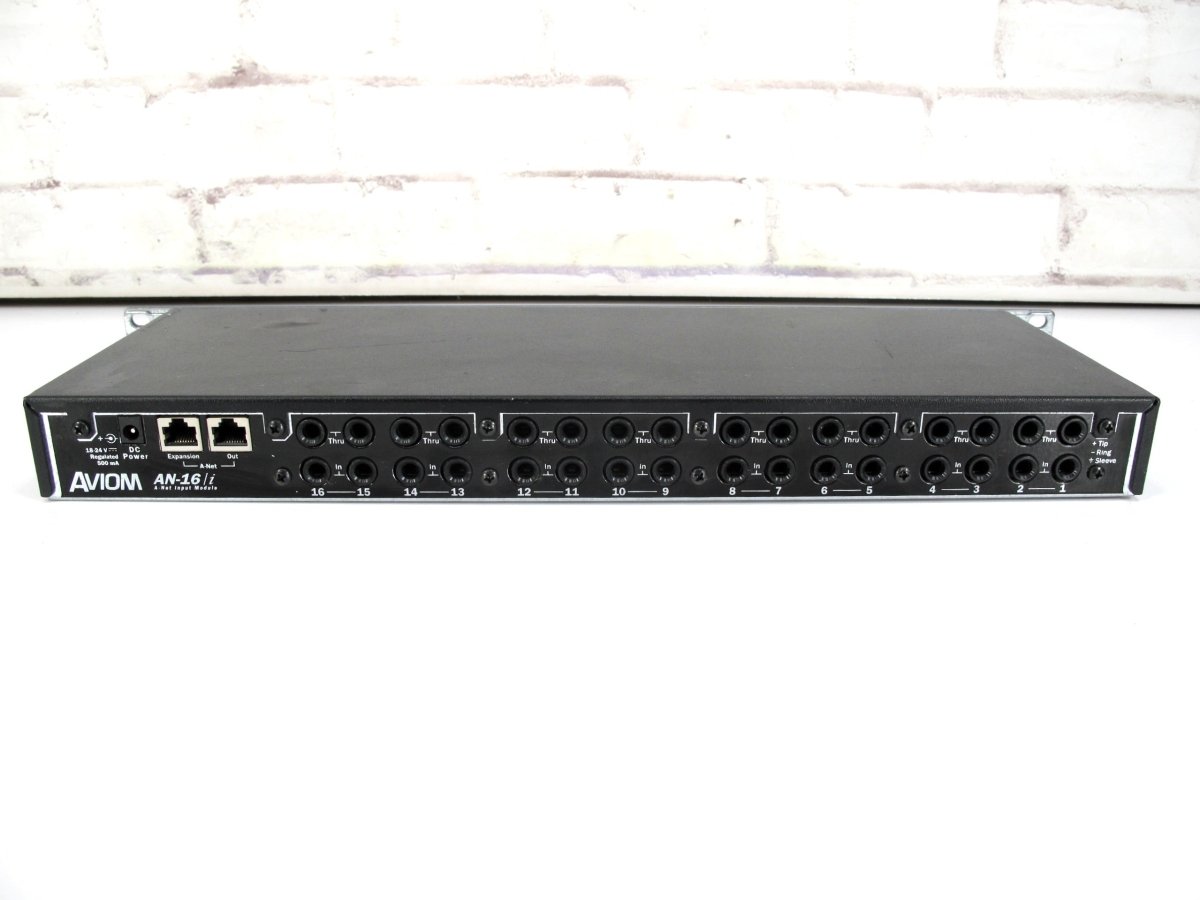

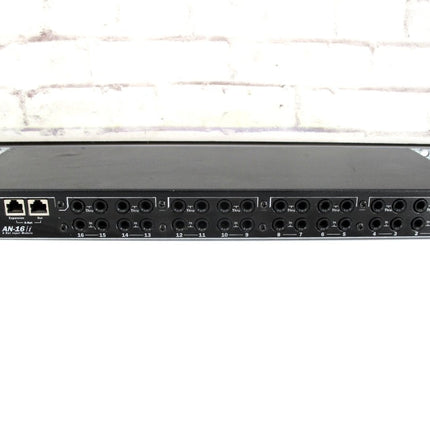

The AN-16/i features 16 1/4" rear panel TRS inputs, each with a separate front panel Stereo Link switch, 4-position Gain switch, Signal Present LED, and Clip LED indicators. There is an additional rear panel row of 16 1/4" TRS Thru jacks , which provided exact copies if the input channels, for insertion into an existing audio signal path. The 1/4" connectors accept unbalanced signals as well.

Up to 4 AN-16/i modules may be used, in support of the maximum 64 channels of audio, sending data to any combination of AN-series monitoring components, over a single Category-5 cable.

The AN-16/i, and the entire A-Net series, represents a genuinely innovative development in wired personal monitoring technology, for the benefit of live music performance and studio recording, commercial and institutional installations, theater installations, and houses of worship, at a breakthrough price point.

Rackmount 16-channel audio distributor Input Module with 24-bit A/D conversion and 1/4" TRS connectors for Aviom A-Net personal monitoring system
16 Balanced inputs available with 1/4" or Euroblock connectors
16 balanced Thru jacks on TRS version available per input, allow insertion in existing audio signal chain
1/4" connectors accept balanced or unbalanced signals
A-Net Output and Expansion Category-5 connectors; all connectors rear mounted
Uncompressed, full bandwidth 48 kHz/24-bit audio sent over standard Category-5 computer network cable
A-Net Expansion jack combines data from multiple units into single Category-5 cable transmission
Imperceptible 880 microsecond latency
Stereo Link switching for each channel pair
4-position Gain Switch with -10, 0, +4, +22 dB settings available for each channel pair
Dedicated Clip and Signal Present indicators available per channel

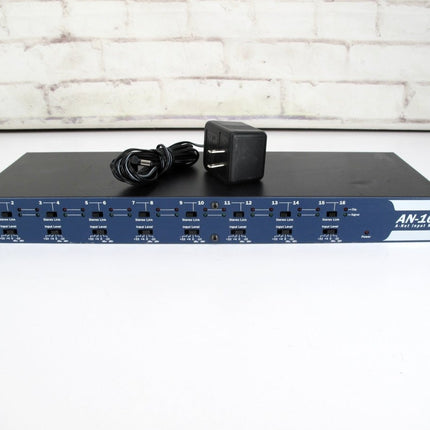

Front panel access for all switches and indicators

Aviom AN-16/i 16 Channel Analog Input Module w/ Power Supply

Product form

$199.99  $190.05

Out of stock, Unknown restock estimate.

The AN-16/i features 16 1/4" rear panel TRS inputs, each with a separate front panel Stereo Link switch, 4-position Gain... Read more

ConditionUsed… Read more

Model: AN-16/i

Working Status - Full Functionality - This item is in full working order with all features operational.

Cosmetics - Above Average - The item shows a less than average amount of wear for its age.

Included items - Power adapter

  • Free shipping from the US
  • Photos shown of actual item.

    • Guaranteed secure & safe checkout.
    Product identifiers
    GTIN/UPC/EAN - 850007957094

    Description

    The AN-16/i features 16 1/4" rear panel TRS inputs, each with a separate front panel Stereo Link switch, 4-position Gain switch, Signal Present LED, and Clip LED indicators. There is an additional rear panel row of 16 1/4" TRS Thru jacks , which provided exact copies if the input channels, for insertion into an existing audio signal path. The 1/4" connectors accept unbalanced signals as well.

    Up to 4 AN-16/i modules may be used, in support of the maximum 64 channels of audio, sending data to any combination of AN-series monitoring components, over a single Category-5 cable.

    The AN-16/i, and the entire A-Net series, represents a genuinely innovative development in wired personal monitoring technology, for the benefit of live music performance and studio recording, commercial and institutional installations, theater installations, and houses of worship, at a breakthrough price point.

    Rackmount 16-channel audio distributor Input Module with 24-bit A/D conversion and 1/4" TRS connectors for Aviom A-Net personal monitoring system
    16 Balanced inputs available with 1/4" or Euroblock connectors
    16 balanced Thru jacks on TRS version available per input, allow insertion in existing audio signal chain
    1/4" connectors accept balanced or unbalanced signals
    A-Net Output and Expansion Category-5 connectors; all connectors rear mounted
    Uncompressed, full bandwidth 48 kHz/24-bit audio sent over standard Category-5 computer network cable
    A-Net Expansion jack combines data from multiple units into single Category-5 cable transmission
    Imperceptible 880 microsecond latency
    Stereo Link switching for each channel pair
    4-position Gain Switch with -10, 0, +4, +22 dB settings available for each channel pair
    Dedicated Clip and Signal Present indicators available per channel
    Front panel access for all switches and indicators
