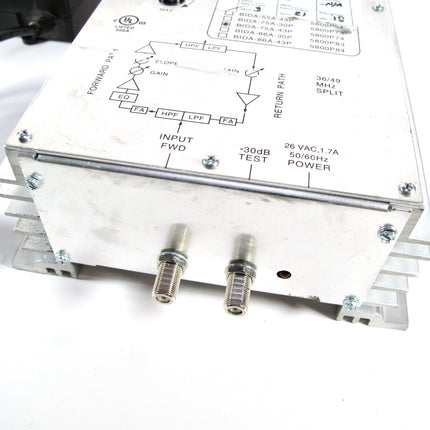

Blonder Tongue BIDA 75A-43 Two-Way Broadband Indoor Distribution Amplifier

Description

he BIDA 75A-43 amplifier is configured for two-way operation with a passive sub-channel return path for 5 to 36MHz bandpass. The return gain is about 20dB when it is in active mode. Lower operating gains can be achieved by adjusting the variable attenuator. This model can be attenuated over a range of 10dB in the forward path and 18dB in the return path. Gain and slope controls are located on the front panel for easy set-up and adjustment. Two -30dB back-matched test points are provided to allow testing without service interruption.

In applications where input signals are too high or where greater cable equalization is necessary, this BIDA active return path amplifier can be reconfigured by using optional plug-in fixed attenuators (forward and return) and cable slope equalizers (forward) to meet particular requirements. Push-pull hybrid IC modules enable the amplifier to operate at high output levels while retaining low distortion characteristics. The aluminium chassis is designed to provide excellent heat dissipation thus allowing operation at high ambient temperatures with no degradation of performance.

The unit features a 36/49MHz split for passive return path operation. It can be re-configured to active return path operation by re-positioning 3 internal jumpers. An optional BIDA-FA plug-in fixed attenuator can be used for reducing forward and/or return gain from 1 to 20dB in 1dB steps. The amplifier is powered by means of an external 26VAC transformer, which also enables it to be remotely powered via low voltage AC wiring.

Provides two-way capability with an active or passive return path set by field-changeable jumpers
Hybrid IC circuitry for high output with low distortion

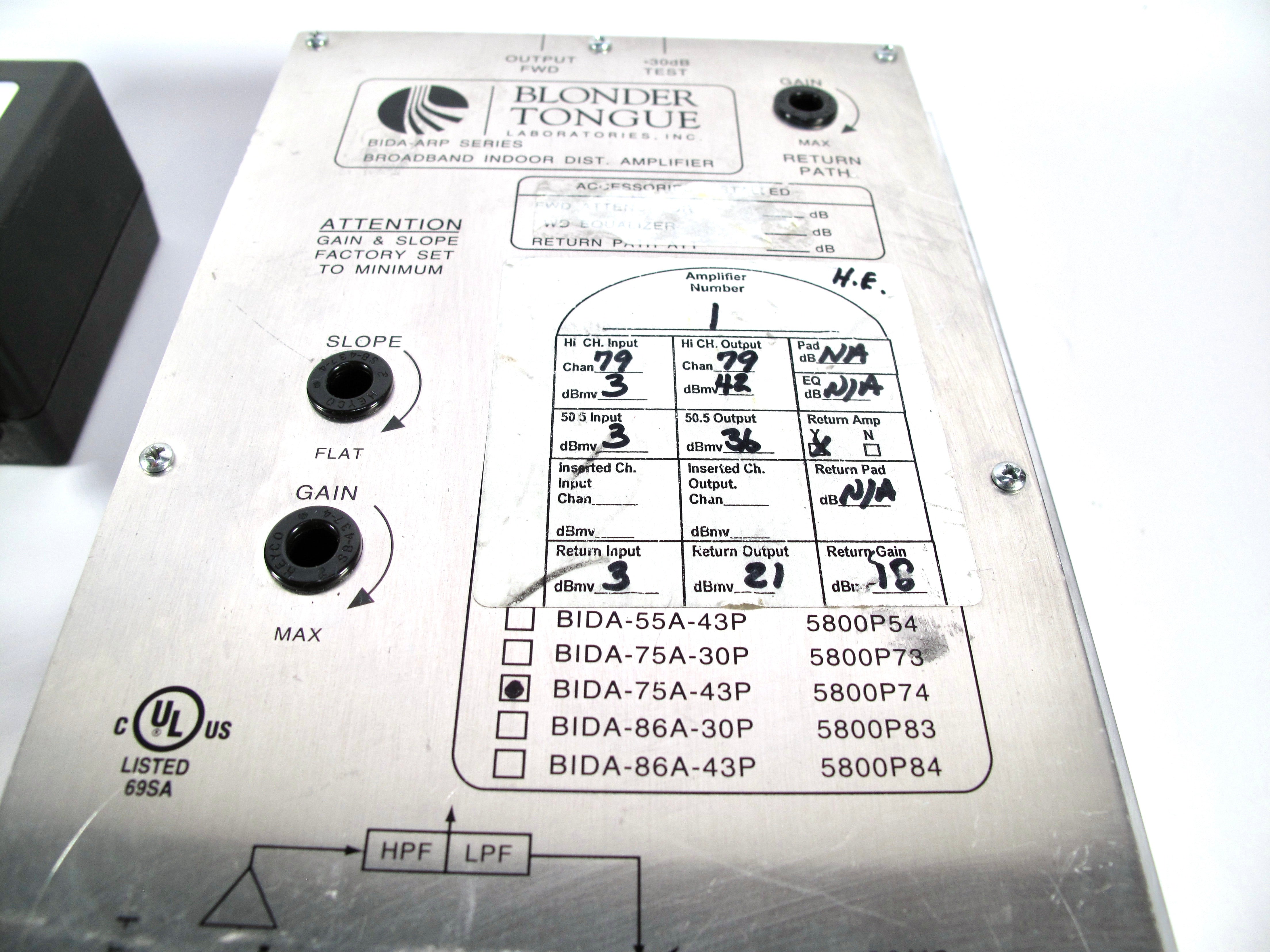

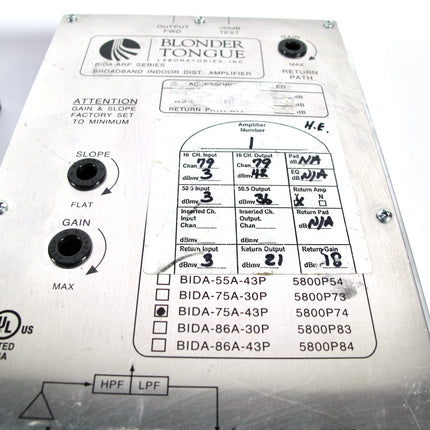

Front panel gain and slope controls for easy adjustments
Sockets for hybrid IC to make a hybrid IC change in the field
Forward path input-side plug-in fixed attenuator and cable equalizer (not included)
Return path output-side fixed attenuator
Externally accessible test points permit in-service testing
Exceeds FCC specs for both conducted and radiated interference at full output level
External UL listed power transformer

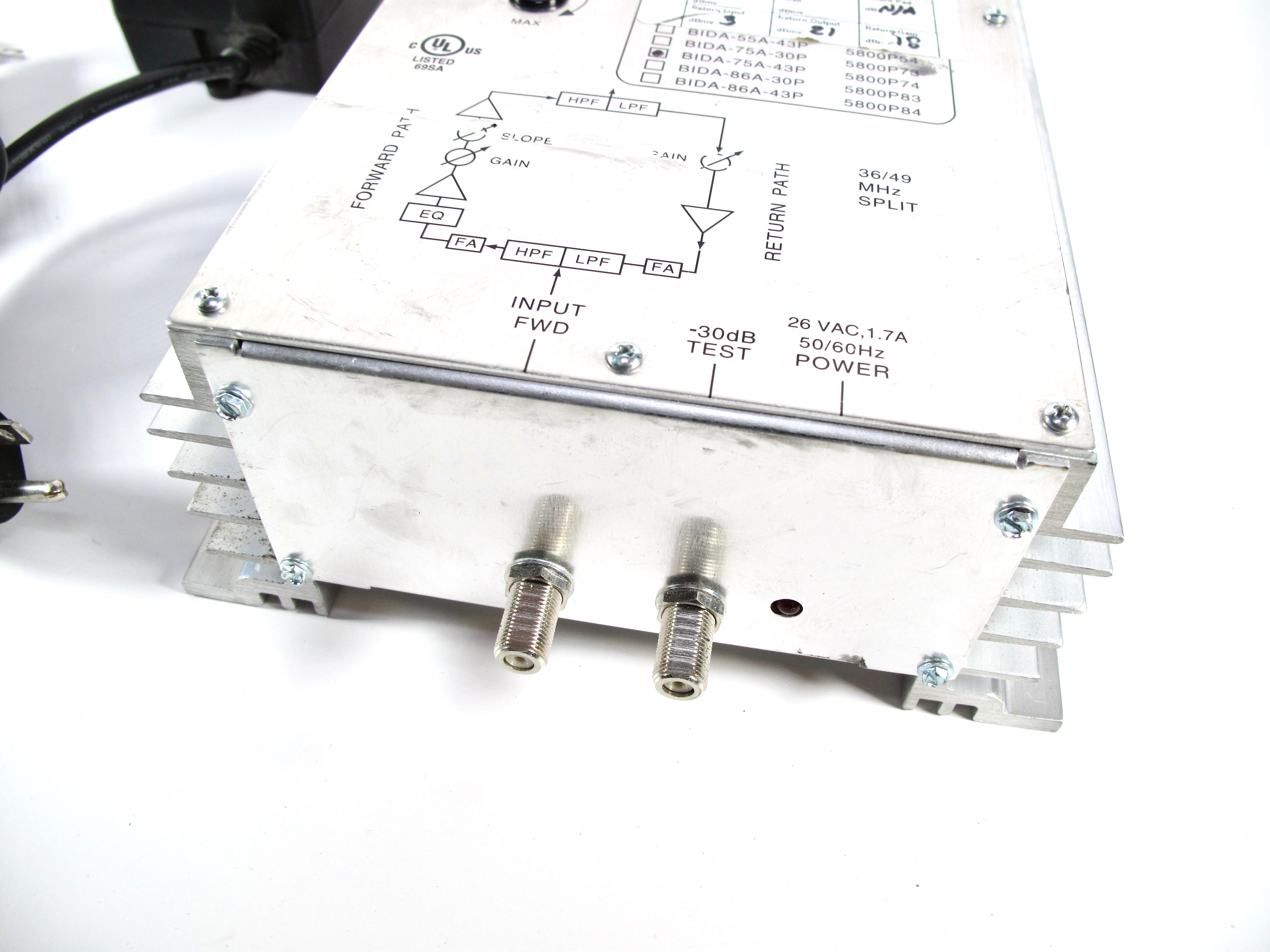

Input and output test ports
Large heat sinks for efficient heat dissipation

Blonder Tongue BIDA 75A-43 Two-Way Broadband Indoor Distribution Amplifier

Product form

$99.99  $80.20

Out of stock, Unknown restock estimate.

he BIDA 75A-43 amplifier is configured for two-way operation with a passive sub-channel return path for 5 to 36MHz bandpass.... Read more

ConditionUsed… Read more

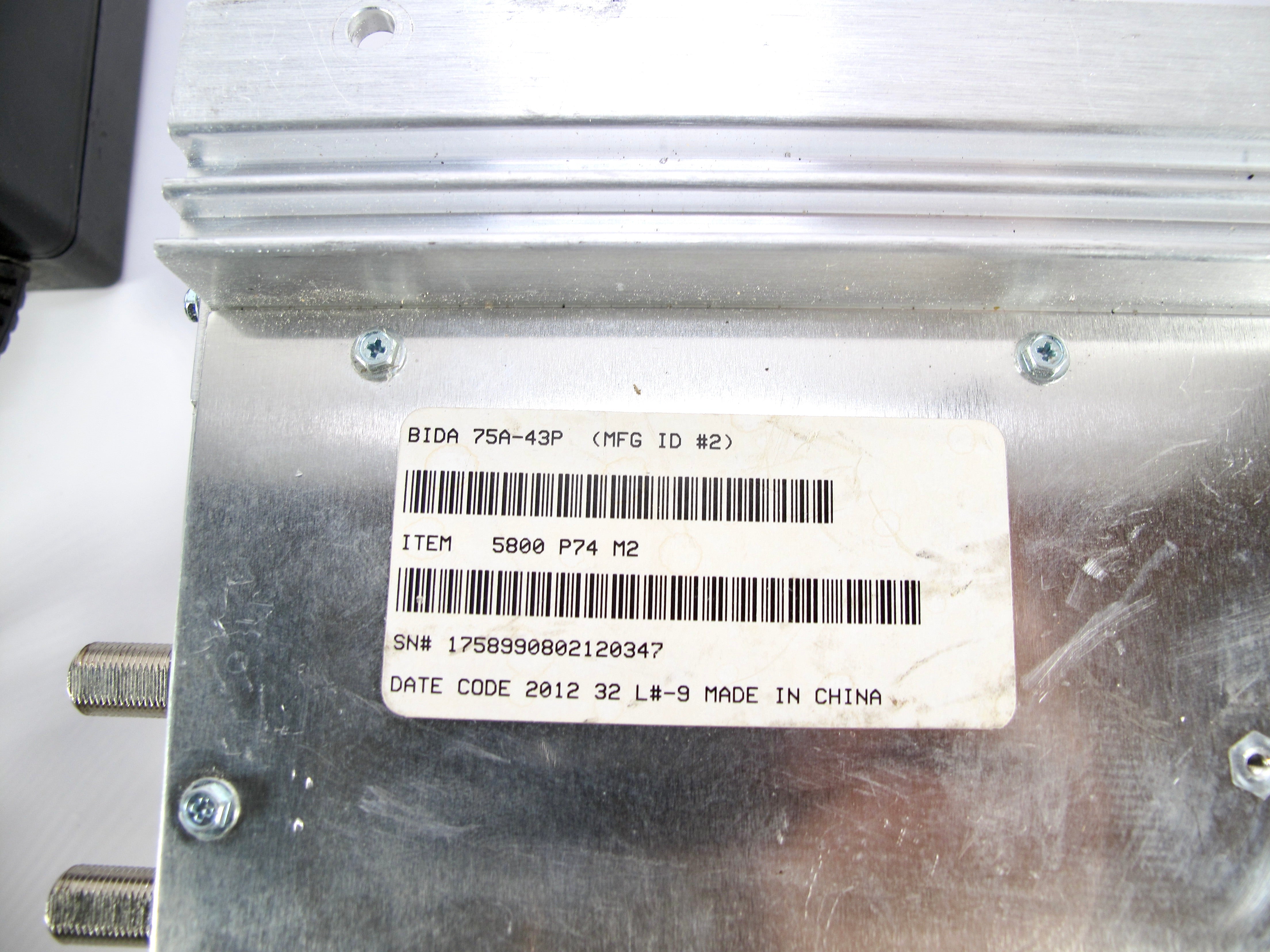

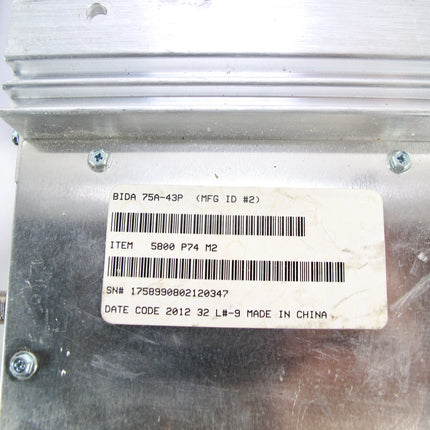

Model: BIDA 75A-43

Working Status - Full Functionality - This item is in full working order with all features operational.

Cosmetics - Average - It looks to be in average cosmetic shape for an item of this type with a typical amount of cosmetic wear to a comparable item of its age and use as shown.

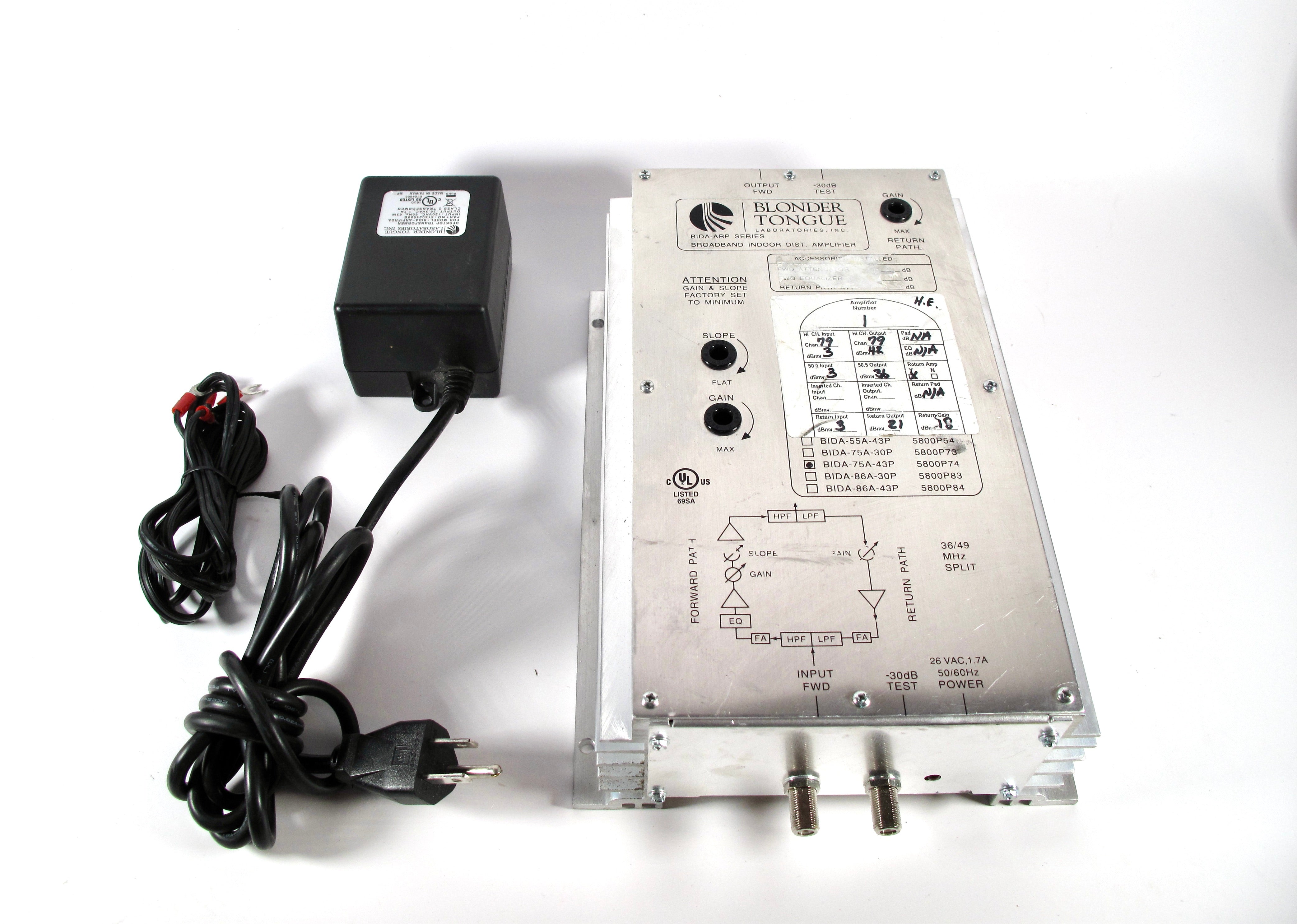

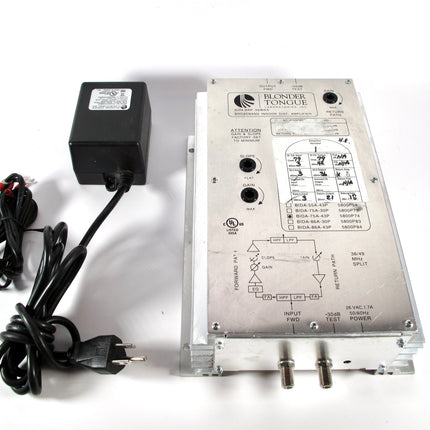

Included items - power supply

  • Free shipping from the US
  • Photos shown of actual item.
    • Guaranteed secure & safe checkout.

    Product identifiers

    Description

    he BIDA 75A-43 amplifier is configured for two-way operation with a passive sub-channel return path for 5 to 36MHz bandpass. The return gain is about 20dB when it is in active mode. Lower operating gains can be achieved by adjusting the variable attenuator. This model can be attenuated over a range of 10dB in the forward path and 18dB in the return path. Gain and slope controls are located on the front panel for easy set-up and adjustment. Two -30dB back-matched test points are provided to allow testing without service interruption.

    In applications where input signals are too high or where greater cable equalization is necessary, this BIDA active return path amplifier can be reconfigured by using optional plug-in fixed attenuators (forward and return) and cable slope equalizers (forward) to meet particular requirements. Push-pull hybrid IC modules enable the amplifier to operate at high output levels while retaining low distortion characteristics. The aluminium chassis is designed to provide excellent heat dissipation thus allowing operation at high ambient temperatures with no degradation of performance.

    The unit features a 36/49MHz split for passive return path operation. It can be re-configured to active return path operation by re-positioning 3 internal jumpers. An optional BIDA-FA plug-in fixed attenuator can be used for reducing forward and/or return gain from 1 to 20dB in 1dB steps. The amplifier is powered by means of an external 26VAC transformer, which also enables it to be remotely powered via low voltage AC wiring.

    Provides two-way capability with an active or passive return path set by field-changeable jumpers
    Hybrid IC circuitry for high output with low distortion
    Front panel gain and slope controls for easy adjustments
    Sockets for hybrid IC to make a hybrid IC change in the field
    Forward path input-side plug-in fixed attenuator and cable equalizer (not included)
    Return path output-side fixed attenuator
    Externally accessible test points permit in-service testing
    Exceeds FCC specs for both conducted and radiated interference at full output level
    External UL listed power transformer
    Input and output test ports
    Large heat sinks for efficient heat dissipation
