Working Condition - Fair
This item was tested & found to be in mostly functioning condition but does have a few quirks, issues or might be missing minor pieces. To be specific, here is what we noticed: Needs a new seal as it leaks from the top.Cosmetic Condition - Good
This item is in good cosmetic condition with average wear for this type of item. It will likely have minor to average wear for an item of this type. Be sure to check out the photos for more details. Be sure to check the photos, but if any out of the ordinary flaws stood out to us, we'll make note of it here:
Accessories

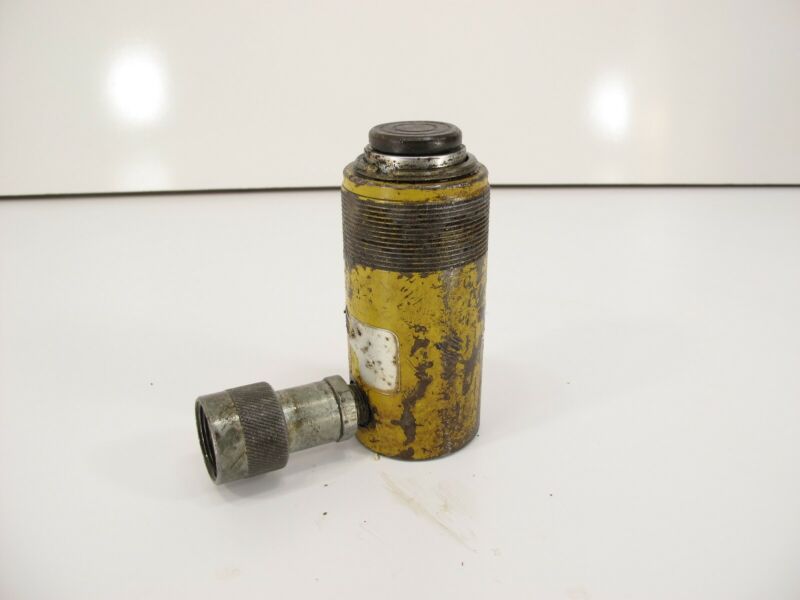

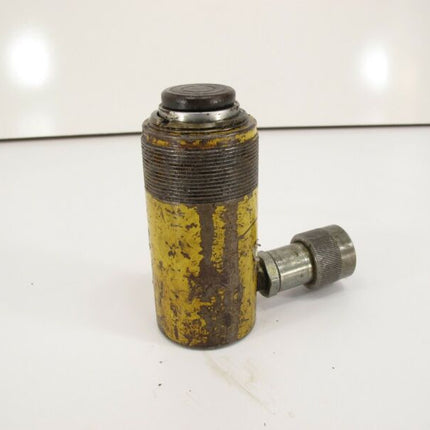

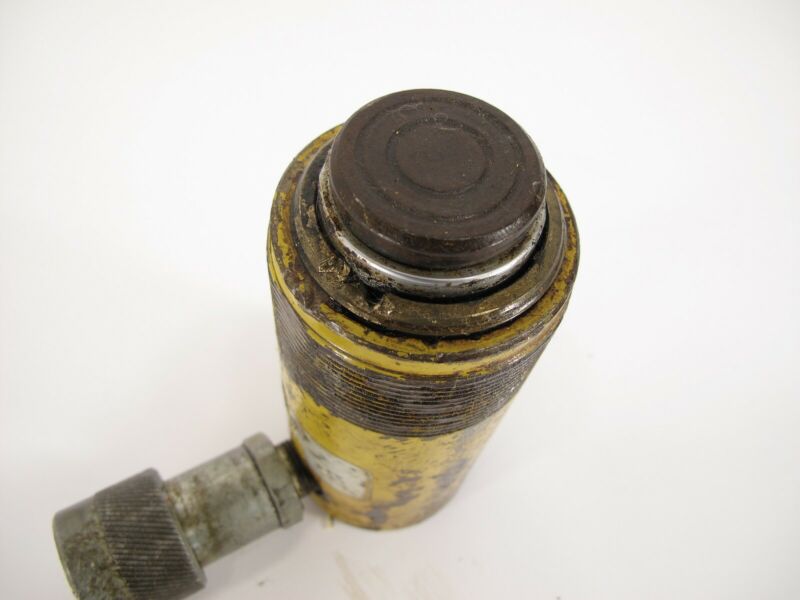

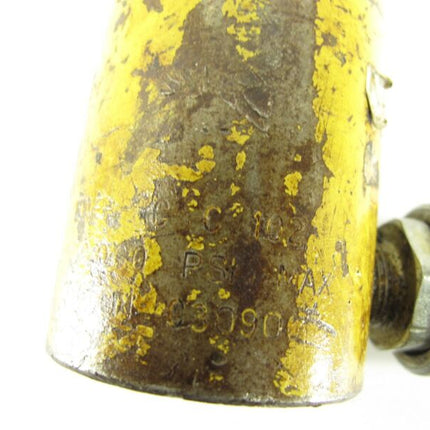

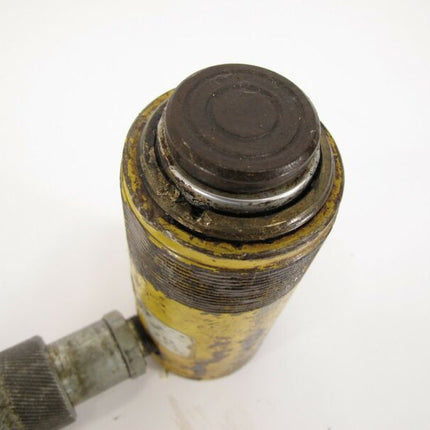

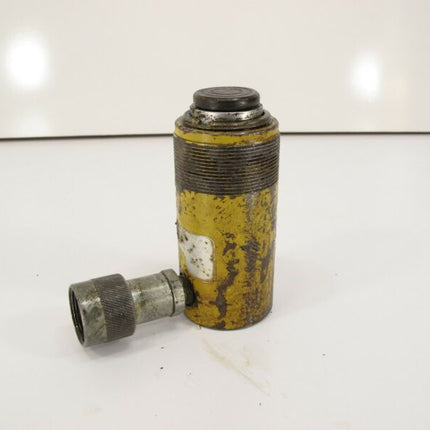

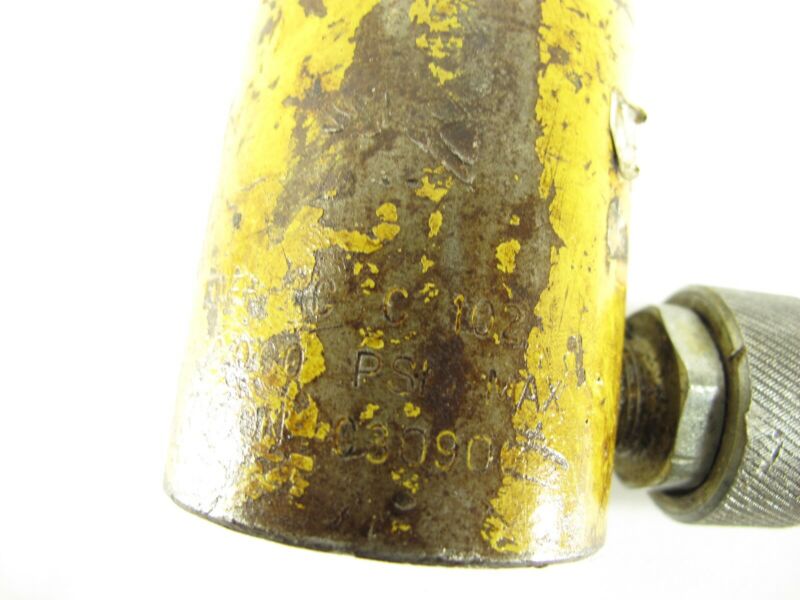

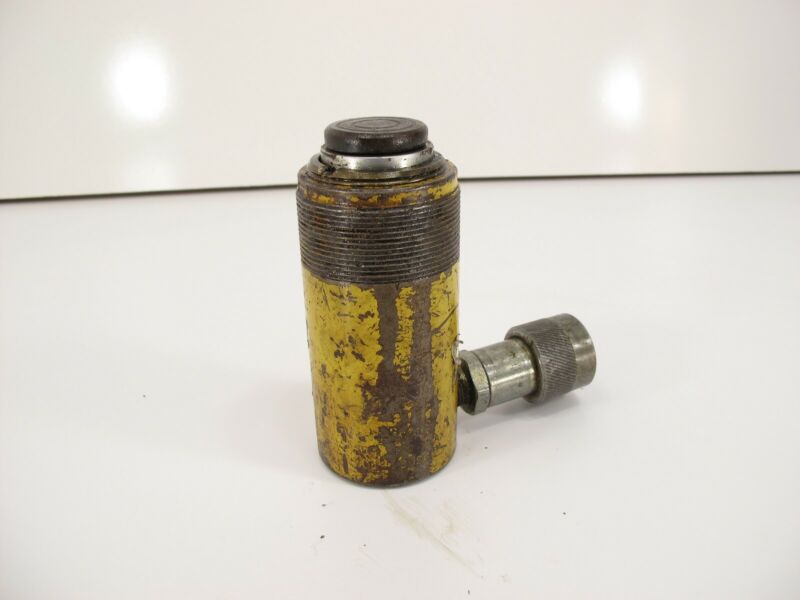

- Cylinder as shown
Details & Specs
This information is to be used for reference only. Accessories or warranties mentioned may not apply to this listing. Please check the accessories section and photos to see everything that comes with this item.
- Single-acting hydraulic cylinder with one port and pretensioned spring return of piston rod after 2.13" stroke
- Round body with single piston rod for use in general purpose applications in any position
- High-strength alloy steel with baked enamel finish for corrosion resistance
- 10-ton cylinder capacity for lifting or pushing
- Quick-connect CR-400 female coupler for connection to a CH-604 male coupler (sold separately)
This Enerpac RC-102 single-acting alloy steel hydraulic cylinder with 10-ton capacity has a round body with one port and spring-return of the single piston rod with 2.13" stroke for use in general-purpose applications in any position. The single-acting hydraulic cylinder uses liquid pumped through its single port for rod extension and a pretensioned internal spring for expedited rod retraction to produce continued movement. A built-in stop ring prevents the plunger from extending beyond the stroke length, assists in absorbing side loads, and can endure the full capacity of the cylinder. The plunger wiper helps inhibit contamination in the cylinder, and the removable grooved plunger saddle covers the plunger mounting threads and protects the plunger during lifting operations. The GR2 bearings reduce wear and help prevent jamming and rod over-extension by absorbing eccentric load stresses. The port is a quick-connect CR-400 female coupler for use with a CH-604 male coupler (sold separately), and the included dust cap covers the port when not in use. The high-strength alloy steel body has a baked enamel finish for corrosion resistance in harsh environments.
