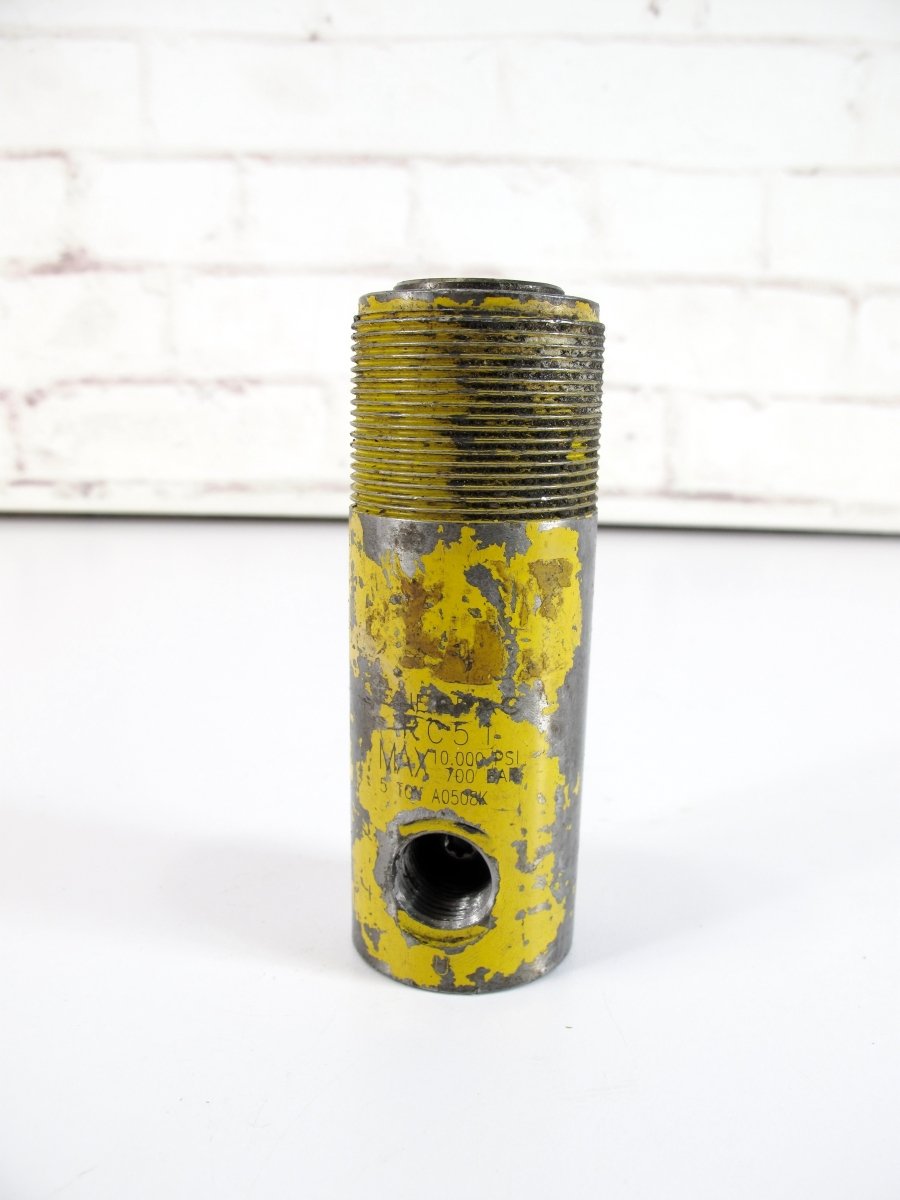

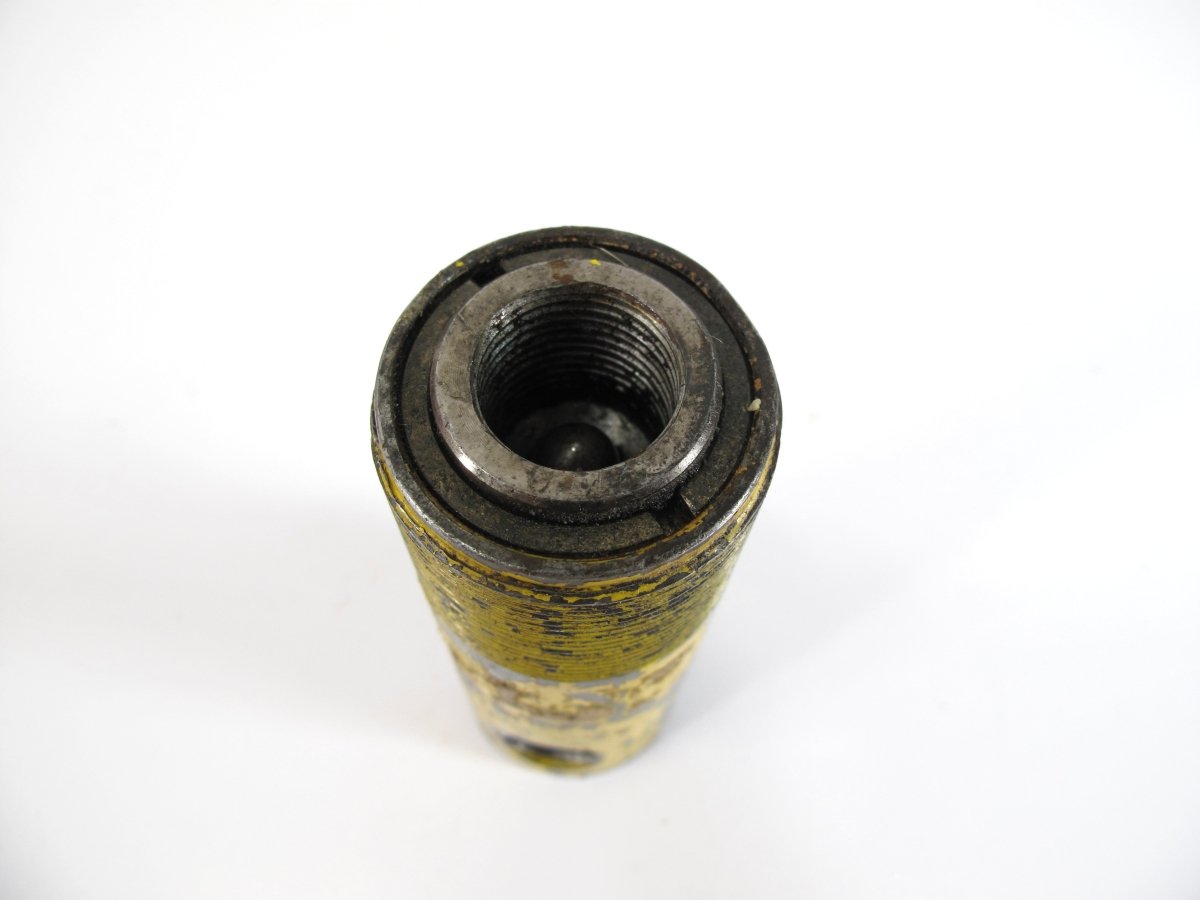

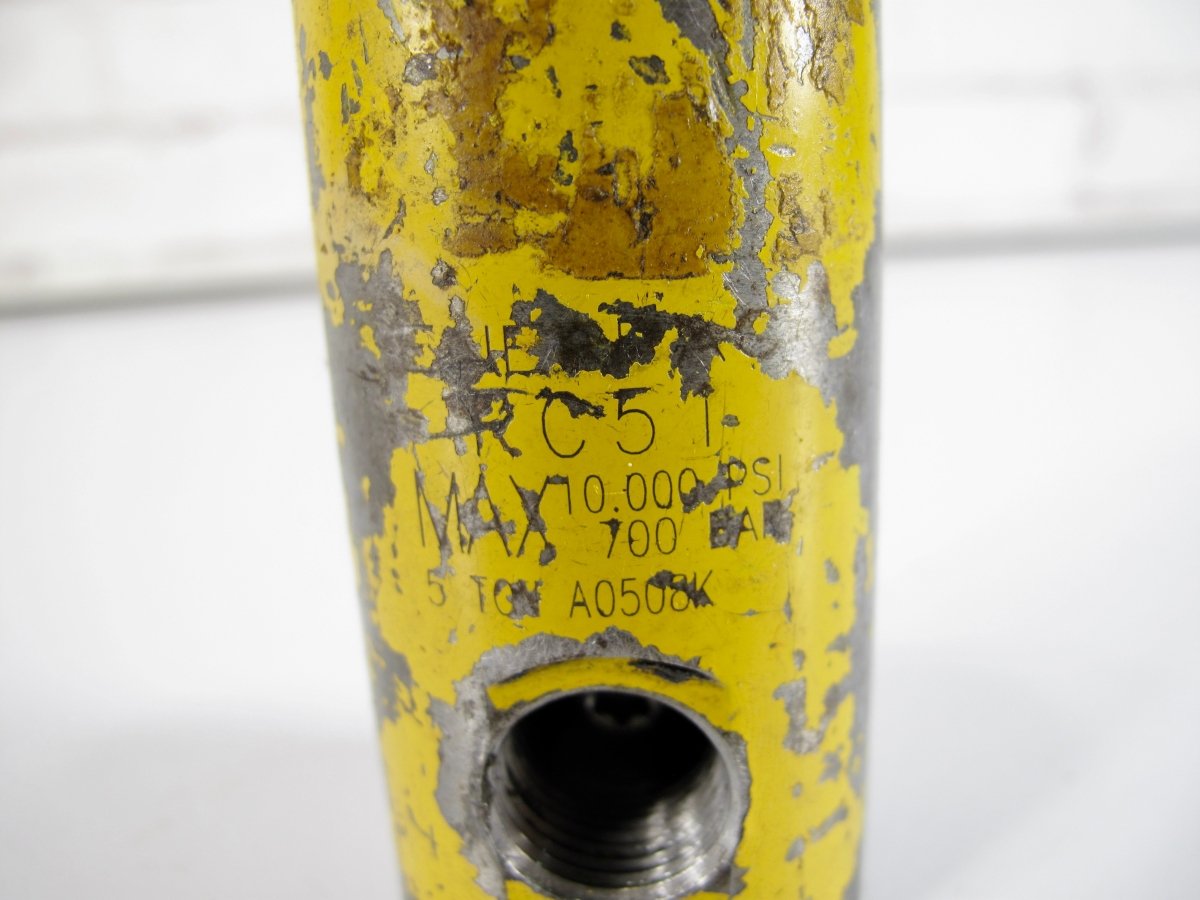

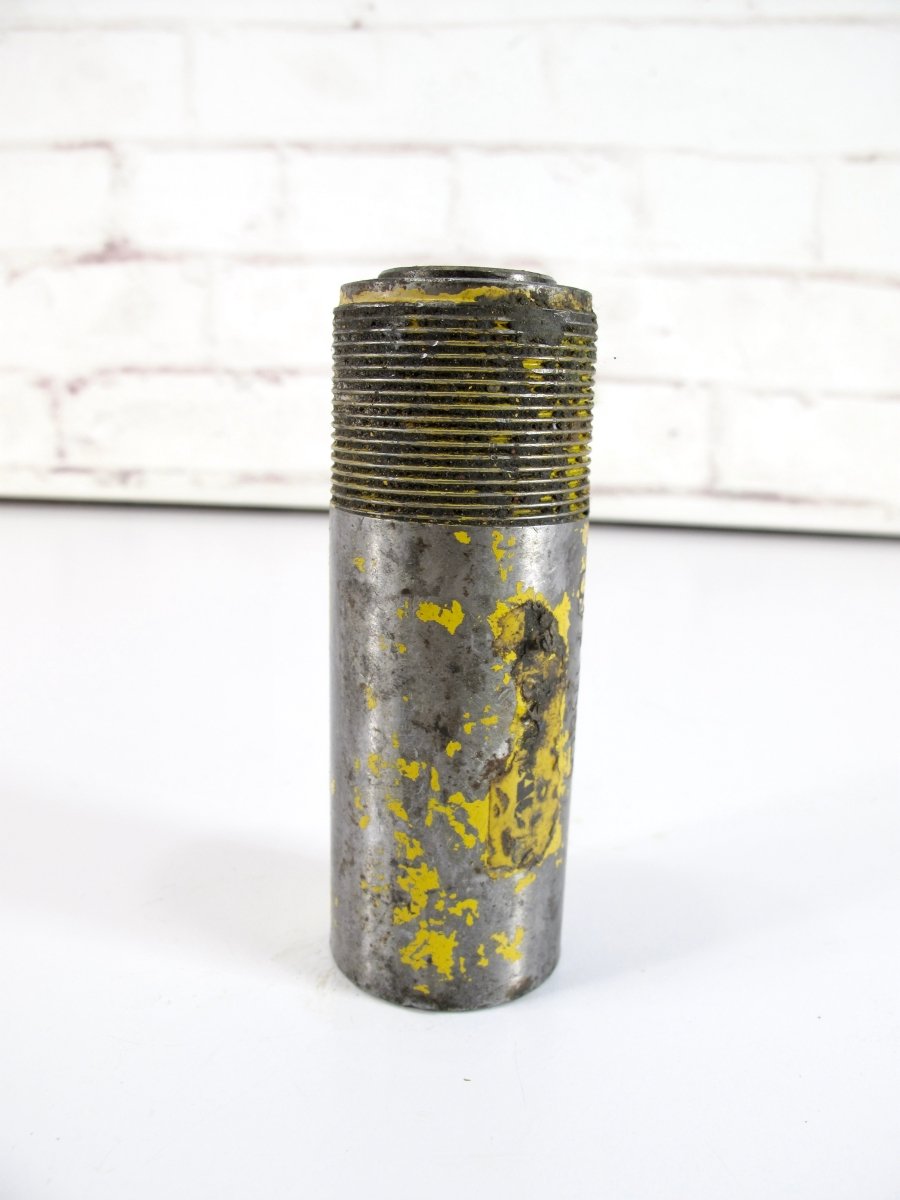

This item is pre-owned, in functional condition. Please view the condition details described below and shown in the photos.
Details and Specs
This information is to be used for reference only. Accessories or warranties mentioned may not apply to this specific item. Please check the “What's Included” section and photos to see everything that comes with this item.
- Single Acting
- 5 Ton Weight Capacity
- 10,000 PSI
- Alloy Steel Composition for Strength and Durability
- Stroke: 1.00"
- Cylinder Effective Area: 0.99"
- Oil Capacity: 0.99"
- Collapsed Height: 4.34"
- Extended Height: 5.34"
- Outside Diameter: 1.50"
- Cylinder Bore Diameter: 1.13"
- Plunger Diameter: 1.00"
- Saddle Diameter: 1.00"
- Saddle Protrusion From Plunger: .25"
- Plunger Internal Thread: 3/4"-16
- Plunger Thread Length: 0.56"
- Bolt Circle Diameter: 1.00"
- Thread Size: 1/4"-20
- Thread Depth: 0.56"
- Collar Thread: 1 1/2"-16
- Collar Thread Length: 1.13"
- Weight: 2.3 lbs.
What's Included
Functional Condition – Excellent
We checked this item out for functionality & found it to be in excellent condition. When you get the item, it will have all features and functions fully operational. Missing saddle
Cosmetic Condition – Average
Cosmetically speaking, it looks to be in average cosmetic shape for an item of this type with a typical amount of cosmetic wear to a comparable item of its age and use as shown. To be more specific, here is what we noticed: Typical signs of normal use.
