Enerpac RCS-302 Single Acting Hydraulic Cylinder 30 Ton 2.44" Stroke

Description

Maximum Operating Pressure (psi)
10,000
Capacity Class (tonnage)
30
Maximum Cylinder Capacity Advance (tons)
32.4
Stroke (in)
2.44
Collapsed Height A (in)
4.63
Extended Height B (in)
7.06
Return Type
Single-Acting, Spring Return
Plunger Type
Solid
Material
Steel
Cylinder Effective Area Advance (in2)
6.49
Oil Capacity Advance (in3)
15.82

Collapsed Height A (in)
4.63
Extended Height B (in)
7.06
Outside Diameter D (in)
4
Cylinder Bore Diameter E (in)
2.88
Plunger Diameter F (in)
2.62
Plunger Diameter F (mm)
66,5
Base to Advance Port H (in)
0.75
Saddle Protrusion from Plunger K (in)
0.13
Plunger Internal Thread O (in)
M5
Plunger Thread Length P (in)
0.32
Base Mounting Holes Bolt Circle U (in)
1.57


 _gsrx_vers_853 (GS 7.0.17 (853))

Enerpac RCS-302 Single Acting Hydraulic Cylinder 30 Ton 2.44" Stroke

Product form

$239.99  $143.99

Out of stock, Unknown restock estimate.

Maximum Operating Pressure (psi) 10,000 Capacity Class (tonnage) 30 Maximum Cylinder Capacity Advance (tons) 32.4 Stroke (in) 2.44 Collapsed Height... Read more

ConditionUsed… Read more

Model: RCS-302

Working Status - Full Functionality - This item is in full working order with all features operational.

Cosmetics - Average - It looks to be in average cosmetic shape for an item of this type with a typical amount of cosmetic wear to a comparable item of its age and use as shown.

Included items - Cylinder as shown

  • Free shipping from the US

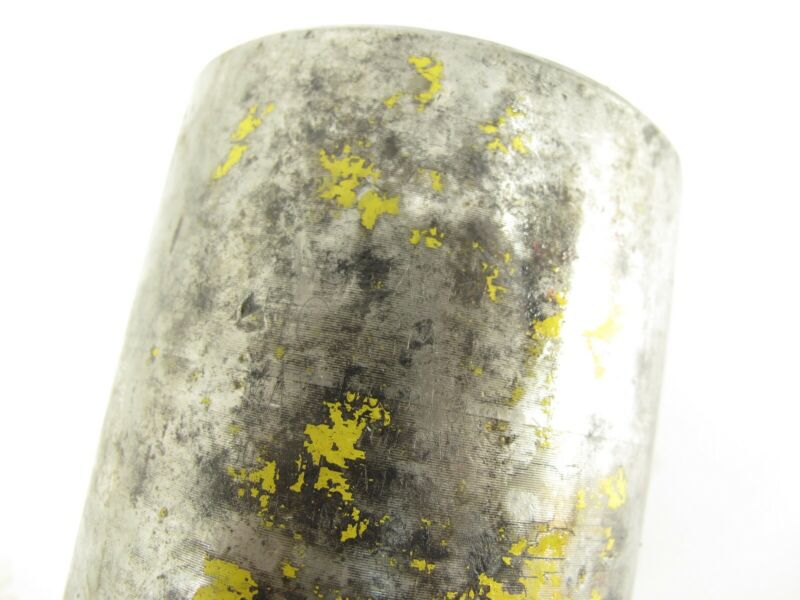

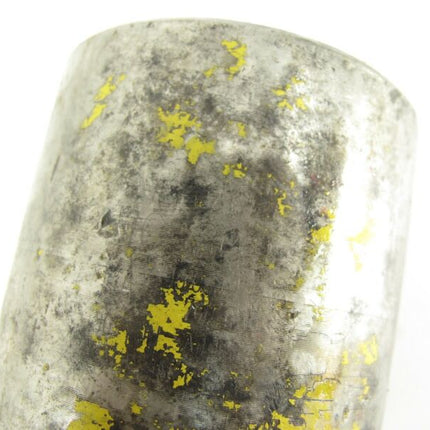

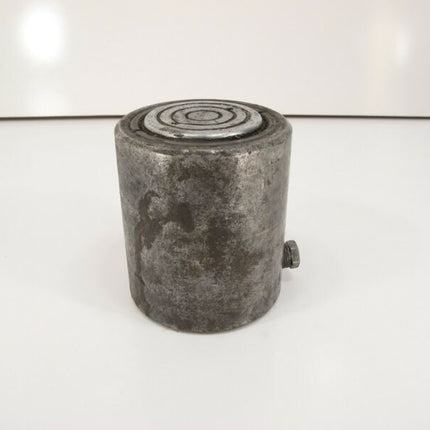

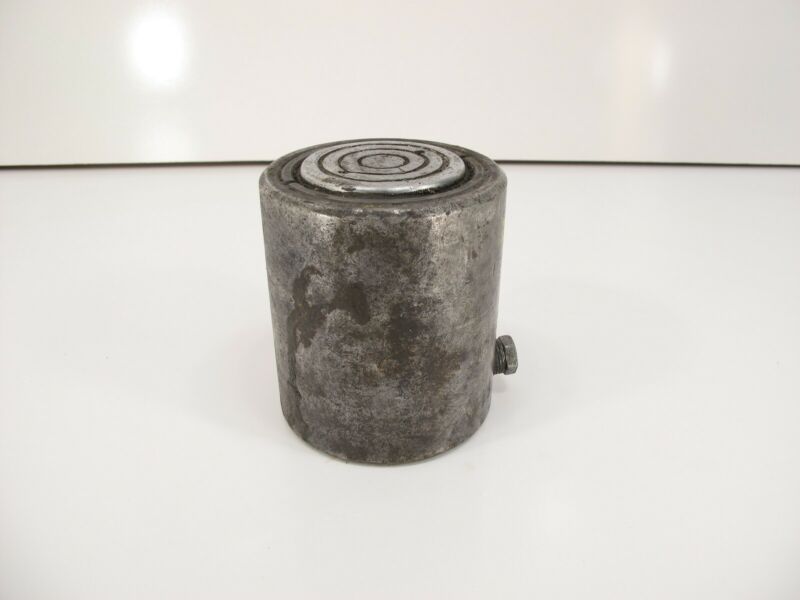

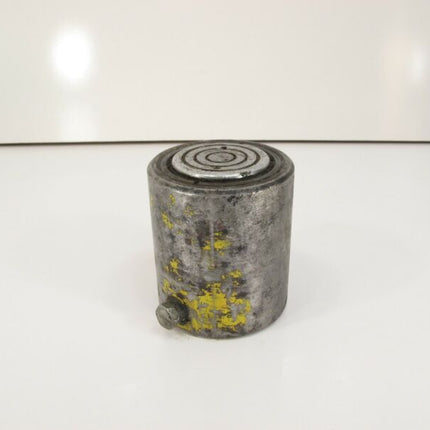

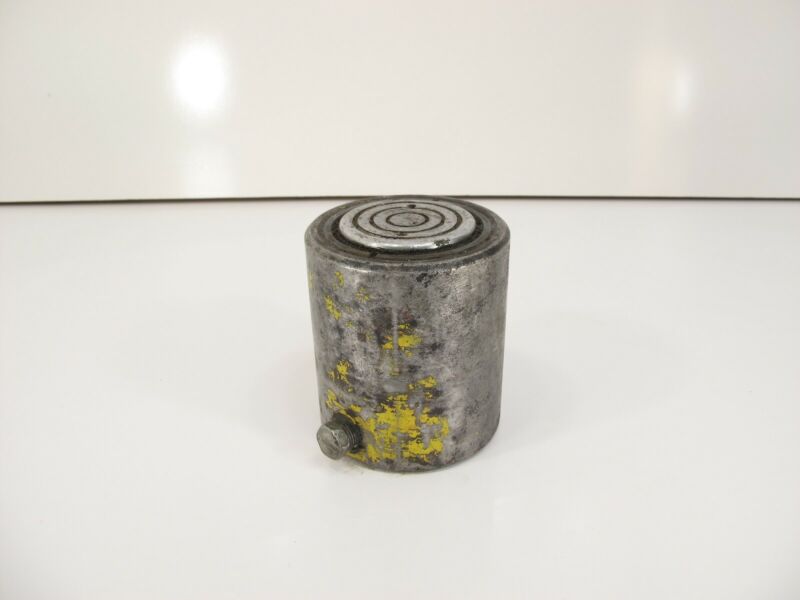

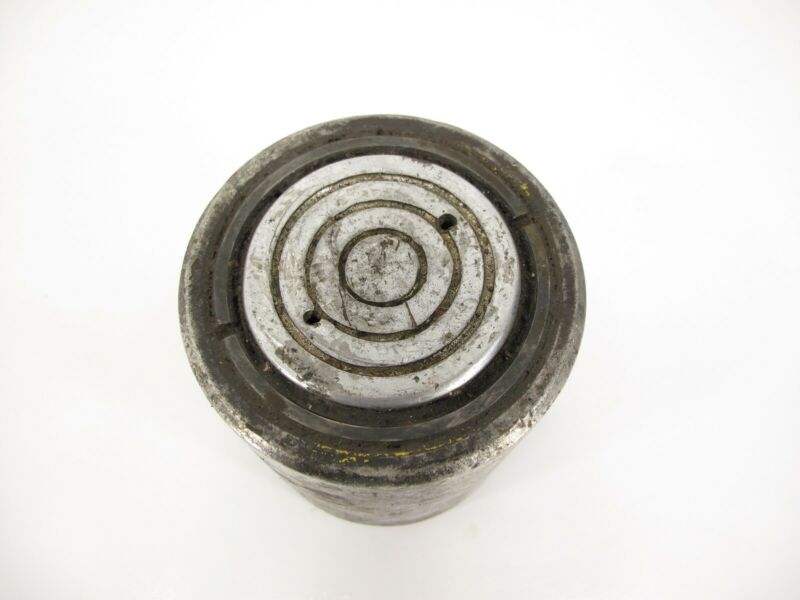

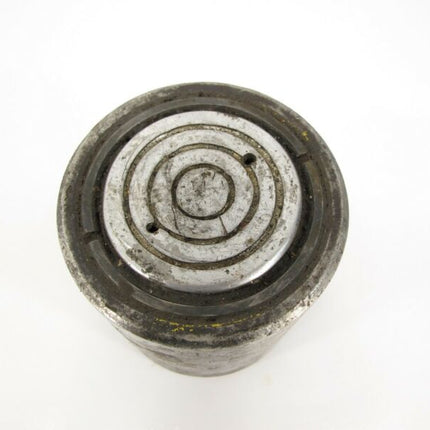

  • Photos shown of actual item.

    • Guaranteed secure & safe checkout.
    Product identifiers
    GTIN/UPC/EAN - 0094700402486

    Description

    Maximum Operating Pressure (psi)
    10,000
    Capacity Class (tonnage)
    30
    Maximum Cylinder Capacity Advance (tons)
    32.4
    Stroke (in)
    2.44
    Collapsed Height A (in)
    4.63
    Extended Height B (in)
    7.06
    Return Type
    Single-Acting, Spring Return
    Plunger Type
    Solid
    Material
    Steel
    Cylinder Effective Area Advance (in2)
    6.49
    Oil Capacity Advance (in3)
    15.82

    Collapsed Height A (in)
    4.63
    Extended Height B (in)
    7.06
    Outside Diameter D (in)
    4
    Cylinder Bore Diameter E (in)
    2.88
    Plunger Diameter F (in)
    2.62
    Plunger Diameter F (mm)
    66,5
    Base to Advance Port H (in)
    0.75
    Saddle Protrusion from Plunger K (in)
    0.13
    Plunger Internal Thread O (in)
    M5
    Plunger Thread Length P (in)
    0.32
    Base Mounting Holes Bolt Circle U (in)
    1.57


     _gsrx_vers_853 (GS 7.0.17 (853))
