Description

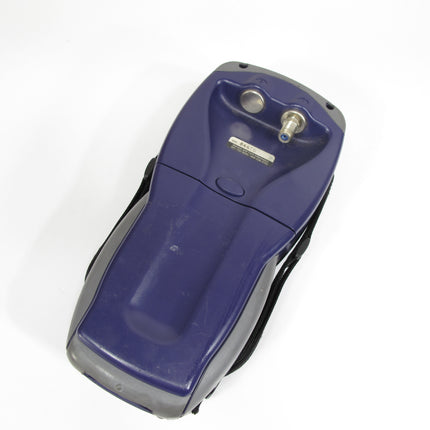

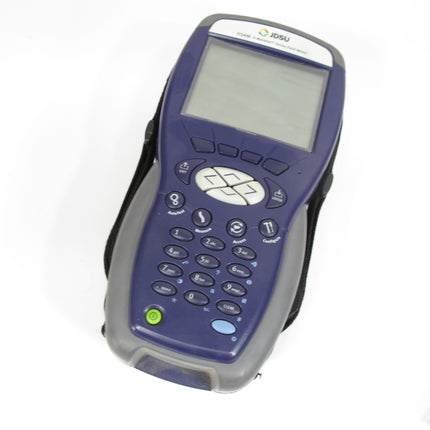

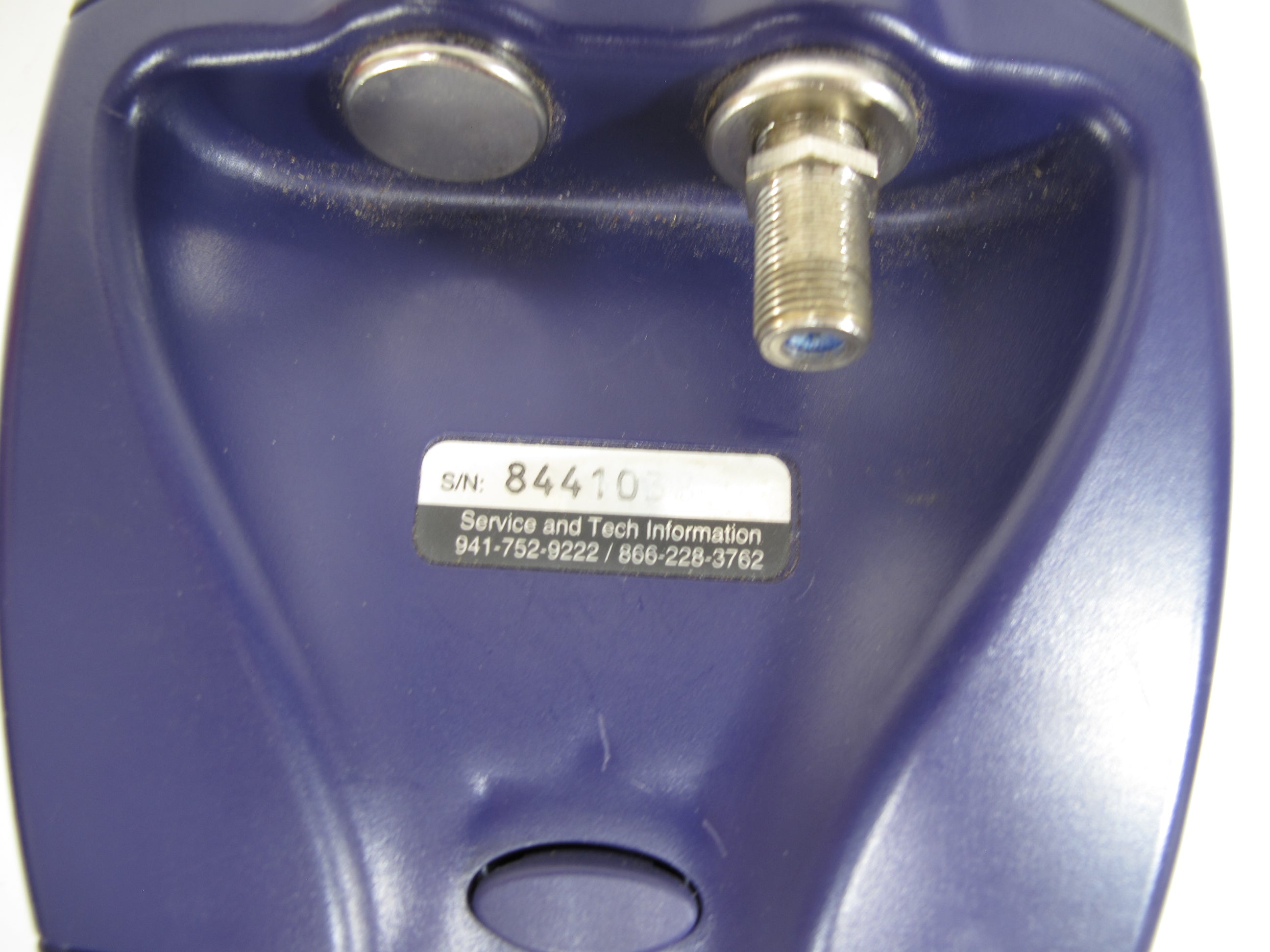

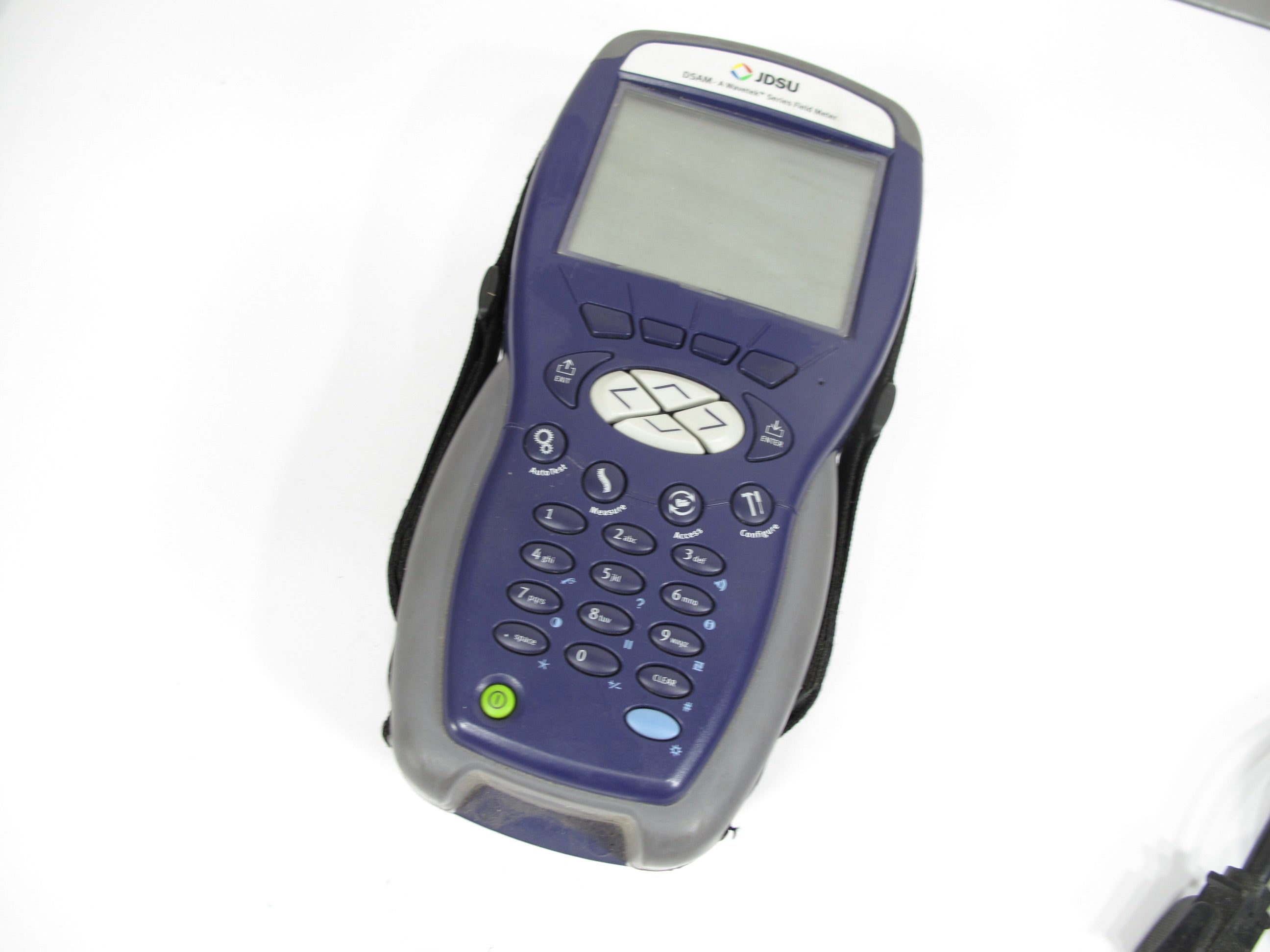

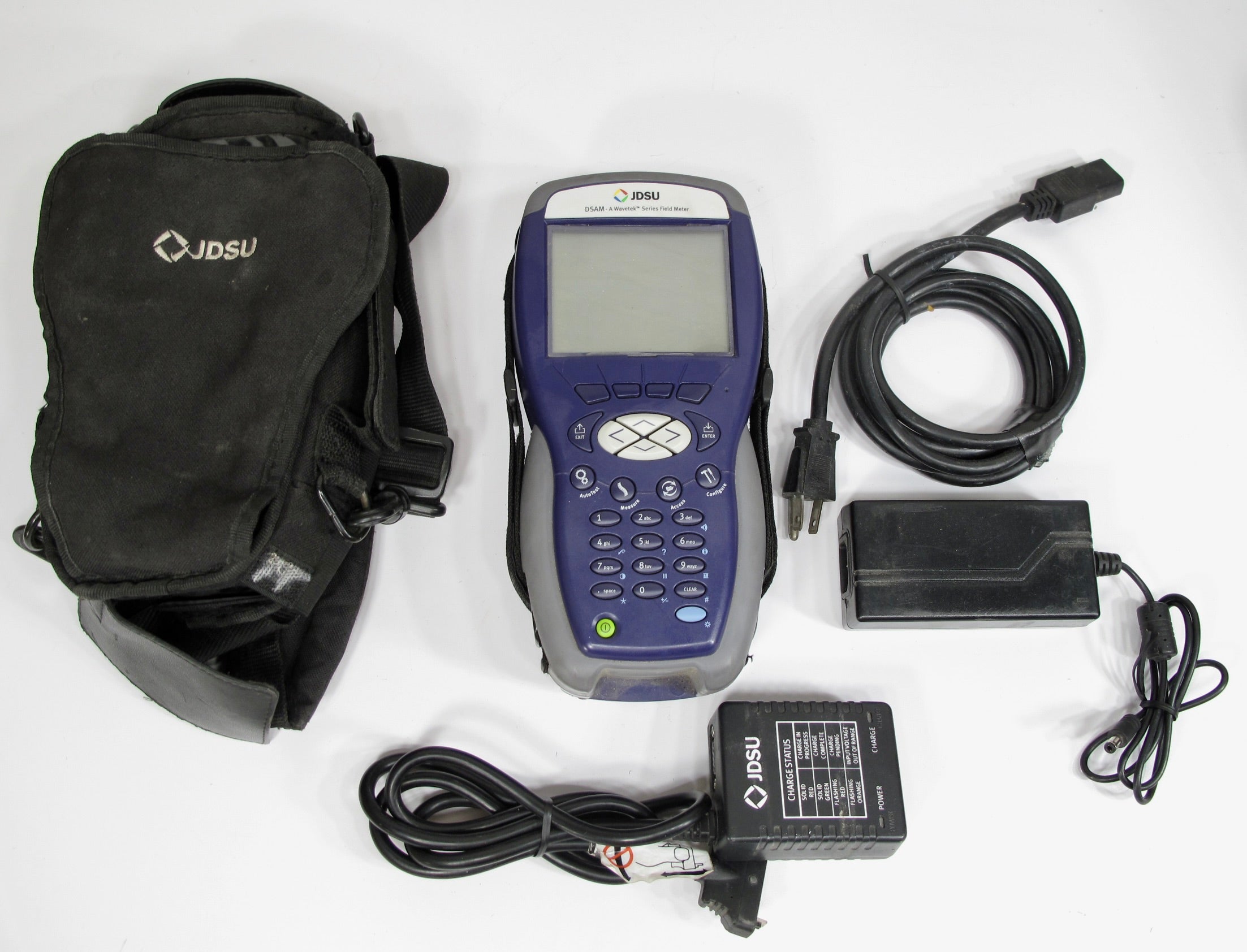

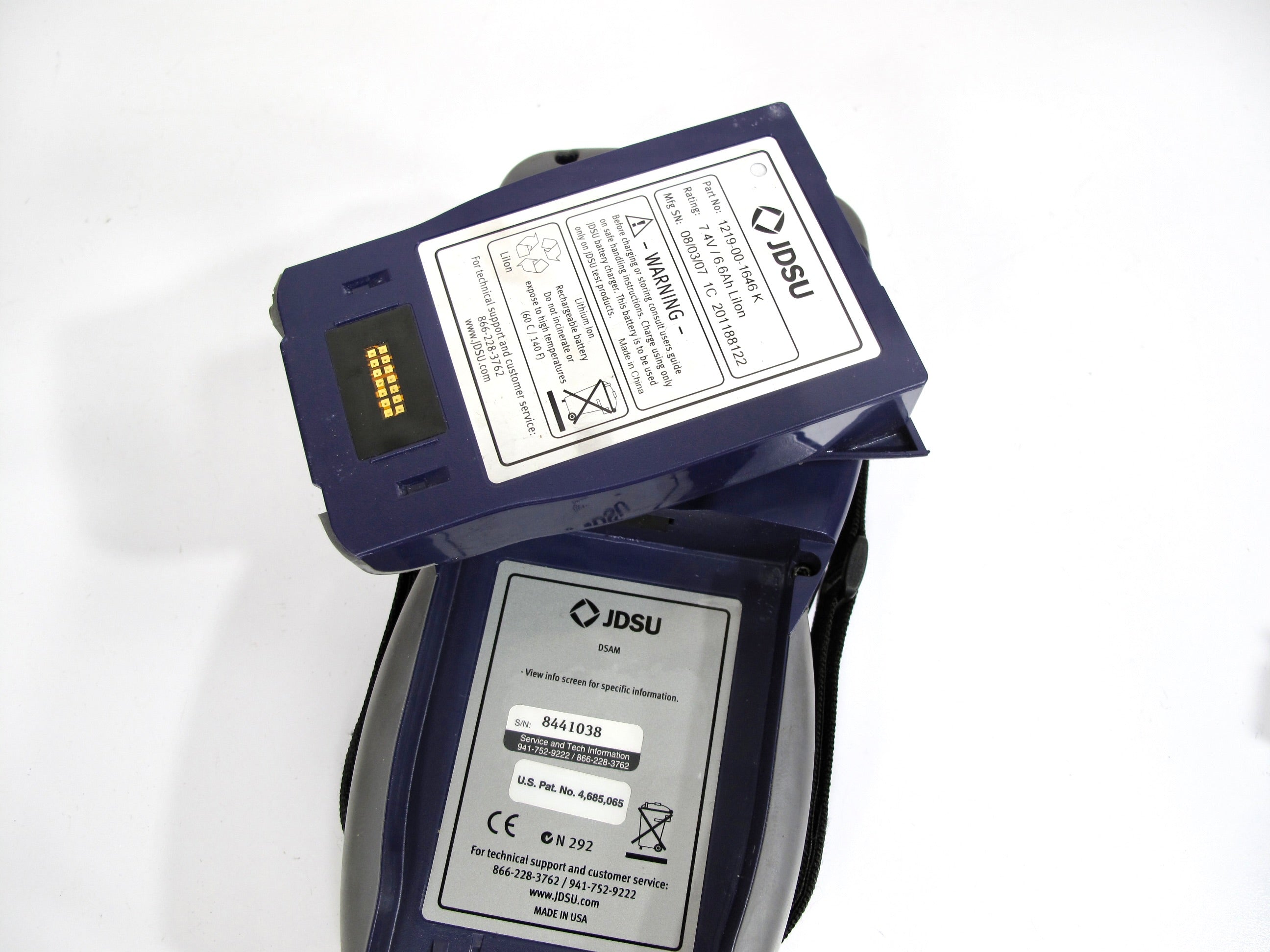

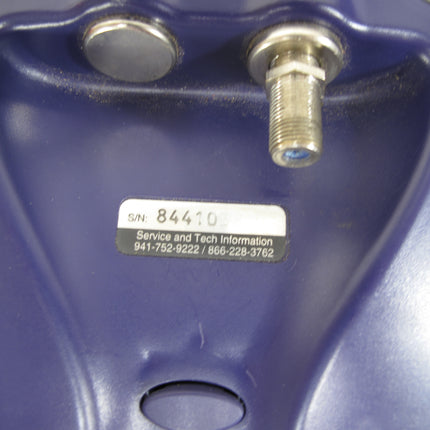

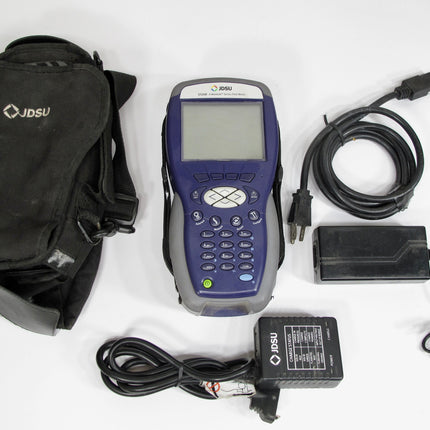

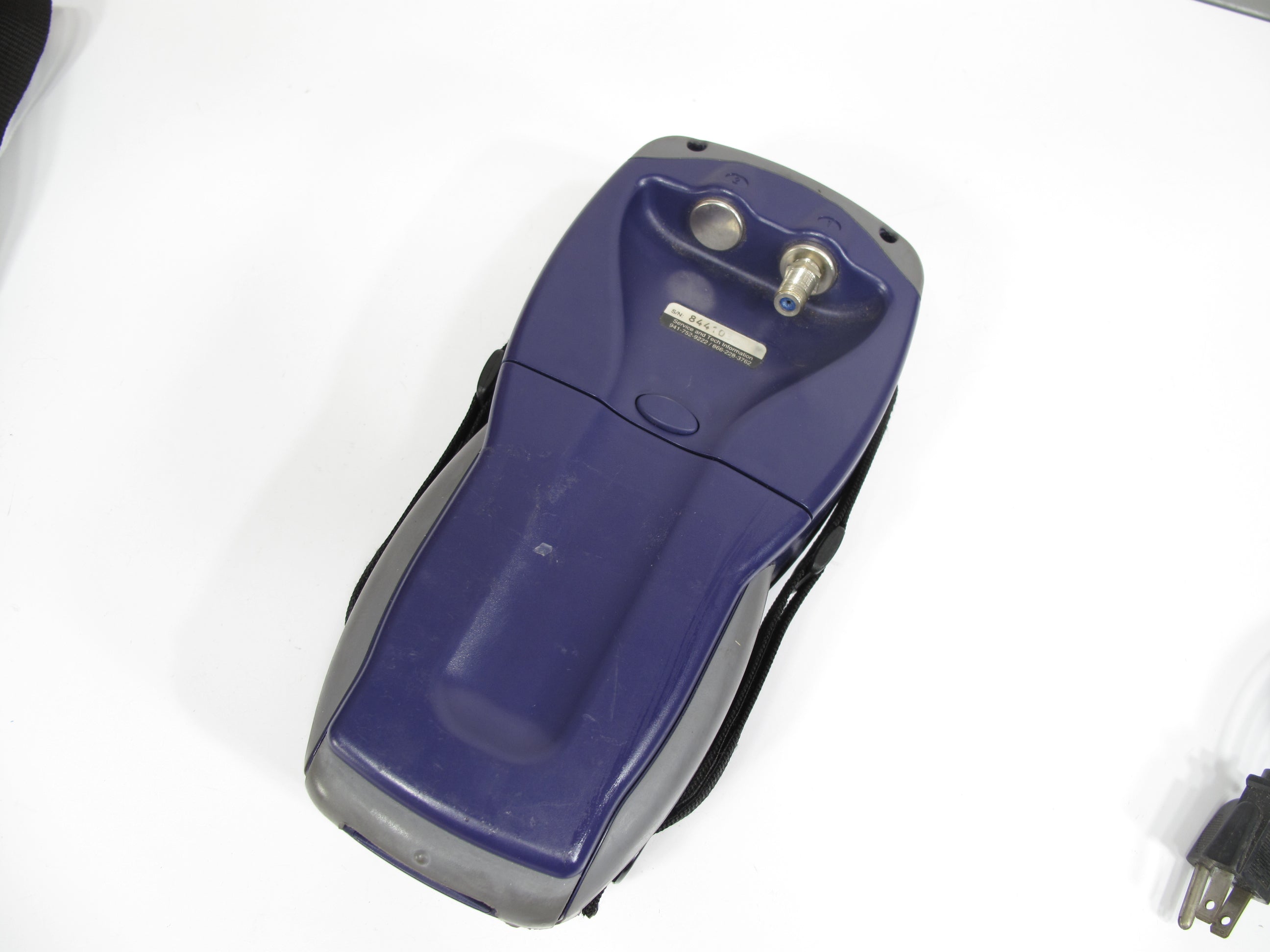

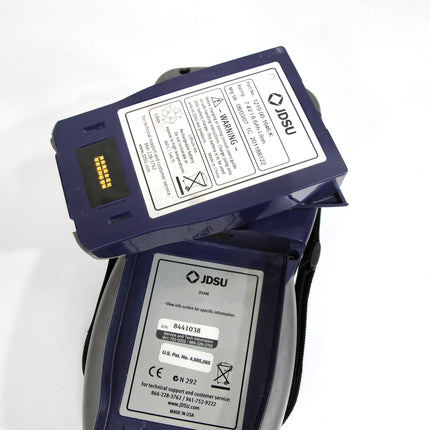

The JDSU (formerly Wavetek) DSAM-6300 combines the JDSU patented Stealth Sweep technology with the best in class combination of full DOCSIS 3.0 testing, Spectrum Analyzer, Signal Level Meter and QAM analyzer.
The Digital Services Analysis Meter (DSAM) with DOCSIS 3.0 builds on the DSAMs industry leading RF expertise and custom design. The JDSU DSAM-6300 DOCSIS 3.0 unit provides best-in-class 8 downstream by 4 upstream full DOCSIS 3.0 testing coupled with numerous digital and analog testing improvements as well as advances in Ethernet testing capability.
With a fully DOCSIS 3.0 "Gold"-compliant 8 downstream by 4 upstream solution, the DSAM-6300 DOCSIS 3.0 unit enables service providers to keep pace with service rollout plans. Testing customer equipment performance is simplified with the integrated Gigabit Ethernet (Gig-E) port and Gigabit Ethernet software option.
JDSU has enhanced the digital carrier testing capability with the DOCSIS 3.0-version DSAM-6300 that includes a standard function for testing deep interleave video carriers. Improved measurement sensitivity provides mean error ratio (MER) measurements of 40 dB typical1, with a display range of up to 45 dB MER. The DOCSIS 3.0 hardware provides the capability to perform DThe new DSAM models build upon the powerful features that are already the cornerstone of these units, including non-invasive forward and reverse sweep, Home Certification, PathTrak Field view, and more.gital Quality Index (DQI) testing as well. With an internal Multimedia over Coax Alliance (MoCA) filter, the DSAM with DOCSIS 3.0 is ready to test home network .
Features of the JDSU DSAM-6300 include:
- 8 downstream x 4 upstream DOCSIS 3.0 testing
- Throughput testing of bonded services
- Up to 304 Mbps down, 120 Mbps up (6 MHz carriers)
- Up to 400 Mbps down, 120 Mbps up (8 MHz carriers)
- Gigabit Ethernet port standard
- Optional Gig E Throughput testing available
- Improved Digital Carrier testing
- Deep interleave video BER standard
- MER range up to 45 dB
- DQI measurement capability
- MoCA compatible
- Cable Labs-compliant certificates
- Legacy support for DOCSIS 1.0, 1.1, and 2.0
- Includes all measurements and features of previous models
- Fully featured SLM (Signal Level Meter) with QAM analysis and integrated DOCSIS cable modem
- Reduce repeat truck rolls Increase productivity and with comprehensive Home Certification test
- Consistent and accurate testing and reporting powered by the Tech Complete TPP software
- Powerful troubleshooting of service impairments with DQI, QAM Ingress, and VoIP Check
- Weatherproof, rugged & lightweight to meet the demands of field technicians
- Remote meter management with consistent and accurate test reporting powered by the Tech Complete TPP software
- Powerful microprocessor and color display for fast power up and dramatic display clarity, now shipping as DSAMXT
- 4 to 1000 MHz range with optional 42 MHz, 65MHz, or 85MHz diplexers to match the return path
- Integrated Pre-Amplifier for -45dBmV ingress scans and return path troubleshooting
- Complete DOCSIS testing of carriers including MER, BER, throughput, packetloss, jitter, and delay1
- DQI Digital Quality Index to help find and eliminate intermittent problems
- Home Certification test simplifies fulfillment testing and reduces truck rolls1
- QAM Ingress - finds noise and interferers inside the QAM carrier1
- VoIP Check option - Provides MOS call quality ratings and segments HFC and IP issues
- 24 hour Proof of Performance testing including Hum, C/N, MER, BER and Power Levels
- Powerful spectrum analysis1
- Upstream 16/64 QAM generator1
- Weather and shock-resistant enclosure
- Configuration of channel plans and tests via the TechComplete TPP software
- Complete QAM analyzer and Analog tester
