Description

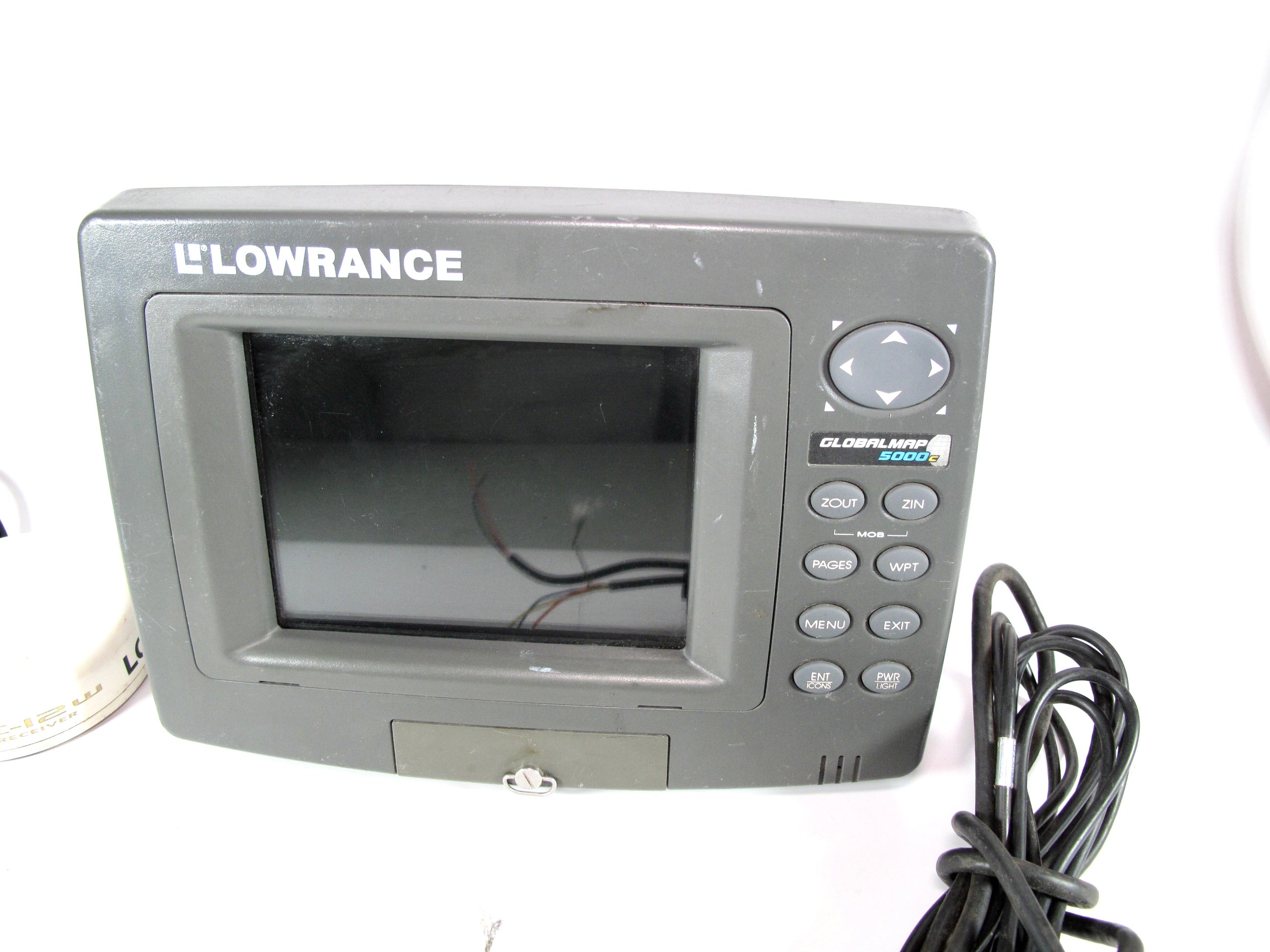

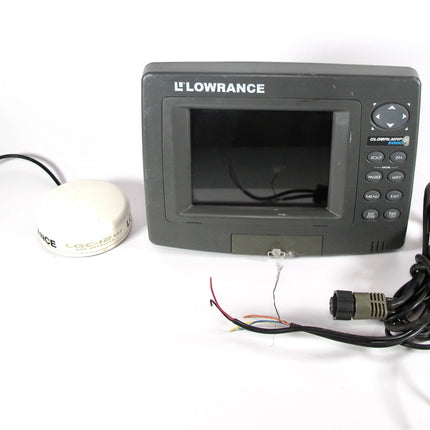

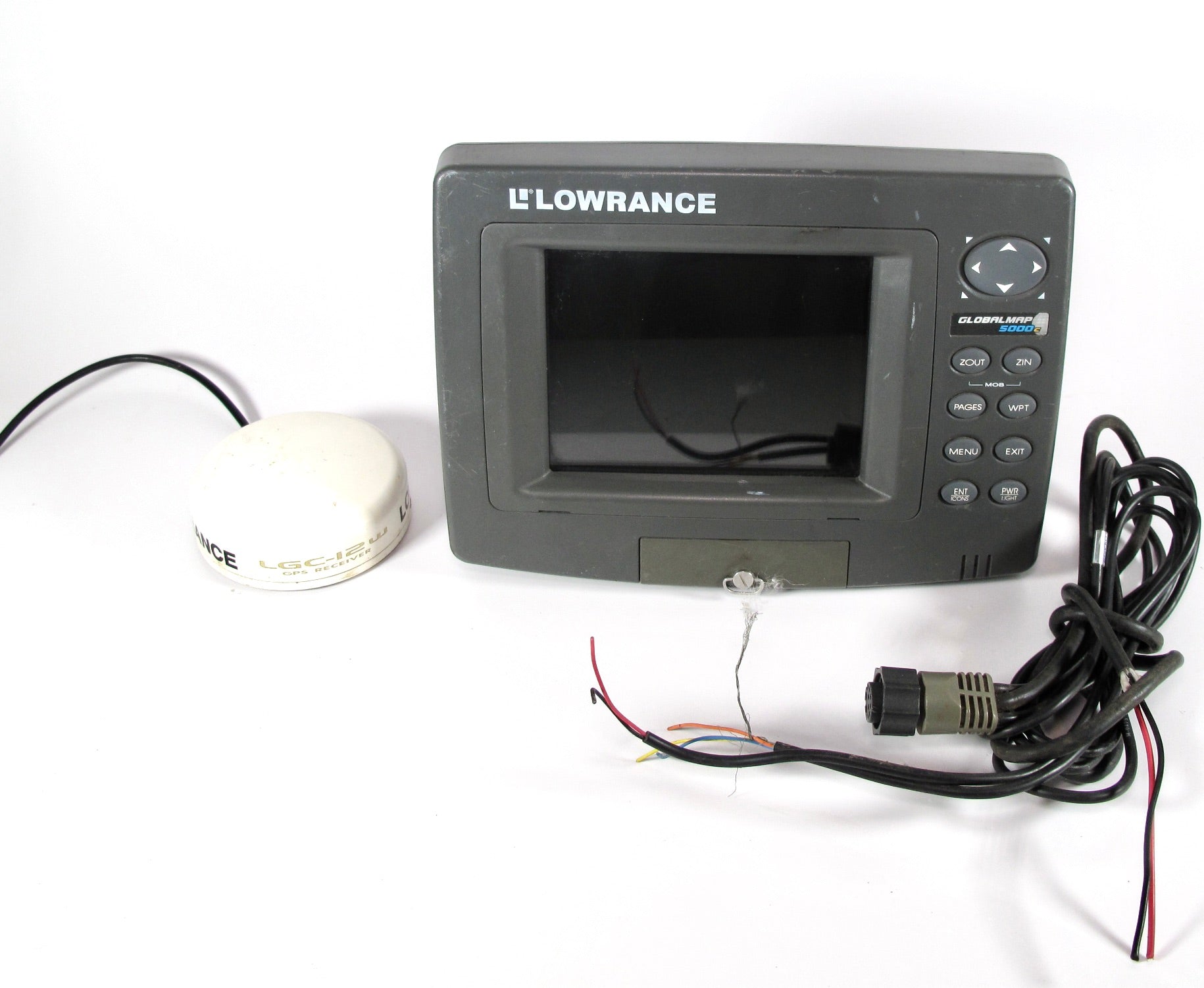

The affordable new stand-alone color recording GPS+WAAS chartplotter that stands apart in big performance at a smaller price!
Feature Components:

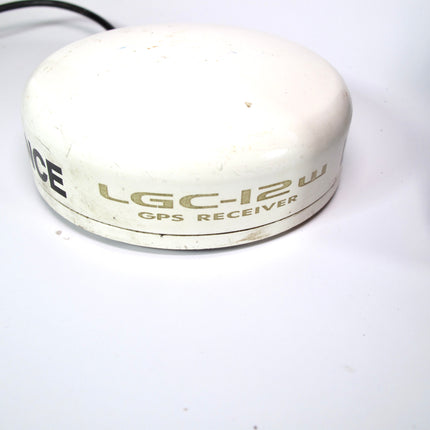

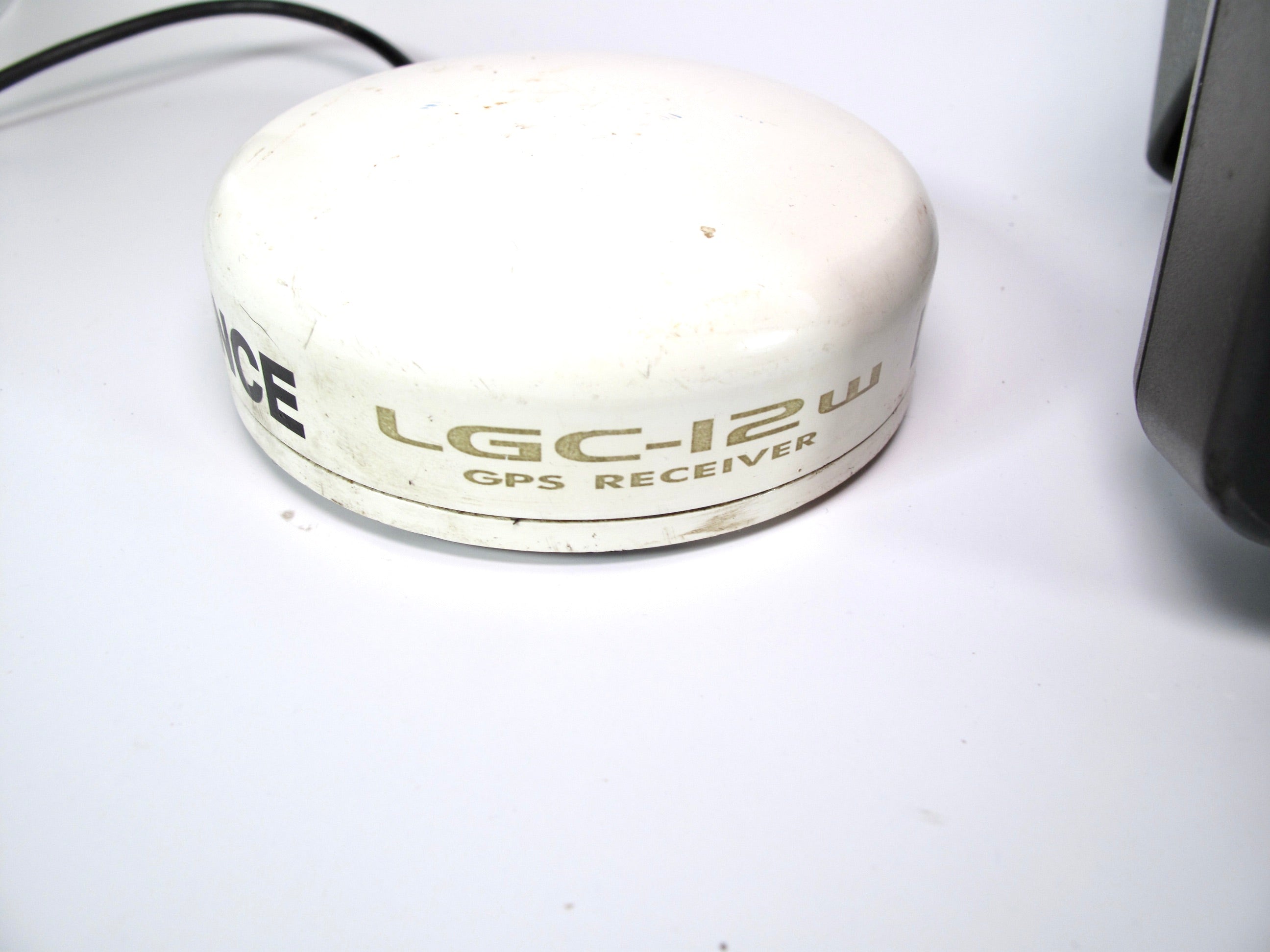

Compact LGC-12W GPS+WAAS receiver/antenna module
MMC/SD memory card reader for PC with USB connector (parallel port connector optional)
Dynamic Display:

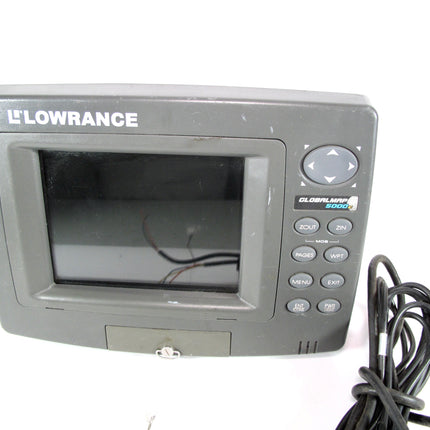

High-brightness 6" diagonal (15.2 cm), 320 x 240 pixel, 256-color, 114 VGA liquid crystal TFT display - 76,800 total pixel resolution - for sunlight viewable, super-sharp detail
Brilliant fluorescent cold cathode backlit screen and keypad for easy readability at night and in low-light conditions
Menu and Pages keys for easy on-screen features selection
Multi full-screen and split-screen navigation charts and data display combinations
Innovative Memory Card Versatility:
Waterproof drawer below the screen accepts up to two compact, rewritable Multi-Media Cards (MMC) or Secure Digital (SD) memory cards2 that allow you to:
- Record your GPS trip details - waypoints/events markers/trails/ routes - for viewing on the unit, or loading to PC for archiving with MMC/SD card reader
- Load custom electronic charts on MMC or SD cards for navigational display (see Mapping Features segment)
- Easily install the latest feature enhancements with each new operating firmware release that you can download free from the Lowrance web site
Mapping Features:
GlobalMap® 5000c features the all-new, built-in Lowrance background map with enhanced detail to include over 60,000 critical nav aids and 10,000 wrecks and obstructions in U.S. coastal and Great Lakes waters. Also includes new land-based detail such as metro areas, select major streets/highways and interstate exit services for the continental U.S. and Hawaii
Included MapCreate™ CD software1 lets you create unlimited, custom, detailed maps on MMC or SD memory cards for navigational display, and features unique, searchable database3 of over 700,000 Points-of-Interest to easily find/identify marinas, restaurants, airports, emergency services, and more
Compatible with optional Navionics® CLASSIC™ and HotMaps™ electronic charts on MMC cards for select domestic and international areas, featuring incredible detail including depth contour lines, real-time tide and current data, port locations with a searchable database of port services, and other important nav aids
GPS+WAAS Features:
12-parallel channel GPS reception with fast satellite lock-ons, precise tracking, and position updates every second
Automatic WAAS reception for enhanced position accuracy to 3 m (under 10 ft) at select locations
High-speed screen updates
Mega-memory saves up to 1 000 waypoints, 1 000 even markers, and 100 routes (up to 100 waypoints per route)
10 savable plot trails with up to 10,000 points per trail
42 graphic icons to mark your favorite spots
37 map ranges - from .05 to 4,000 miles - with easy zoom-in/out control
Selective on/off GPS alarms: Off Course, Arrival, and Anchor

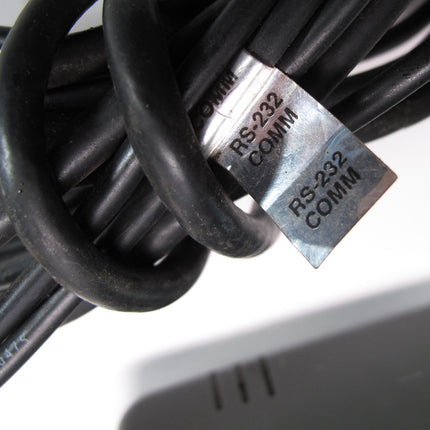

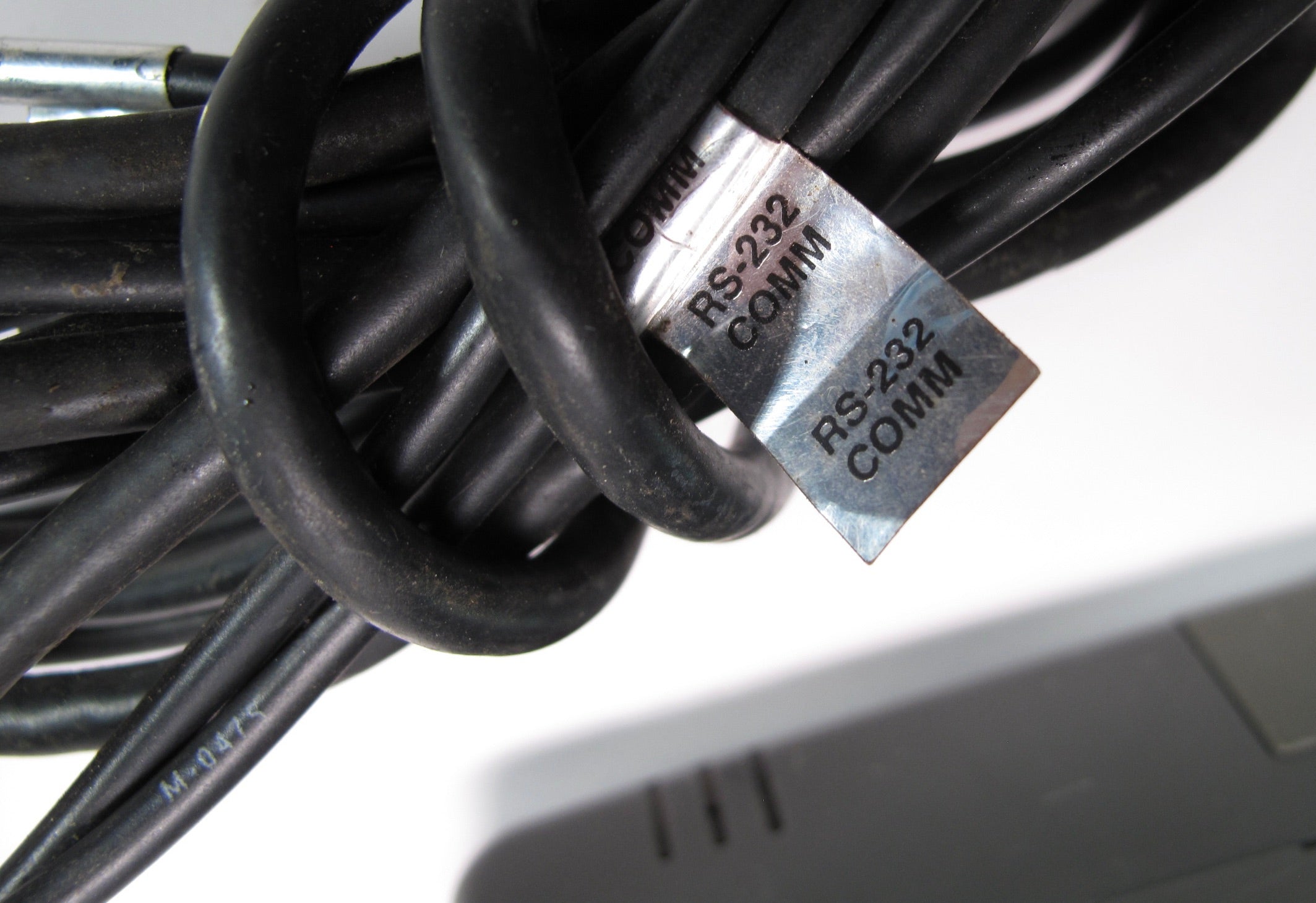

DGPS compatible; interfaces NMEA 0183
Comfort Features:
Internal back-up memory keeps stored settings and GPS data safe and accessible for years
Man Overboard feature precisely marks MOB location with special icon, and displays return distance, bearing, track, speed, and estimated time enroute
External speaker output for remote monitoring GPS alarms
High-impact cover protects screen and keypad when not in use
Completely sealed and waterproof, even for use in harsh saltwater environments
