NEC A-11 Reserve II Type BC/BU EXTREMELY RARE Stereo Integrated Amplifier

Description

High quality integrated amplifier

Power amplifier section
Circuitry All stage direct DC servo circuits
Effective output (both ch drive,
Sine wave continuous power, 20Hz - 20kHz) 140W+140W (4Ω)
70W+70W (8Ω)
All the harmonic distortion factors (at the time of effective output) 0.003% or less
Cross modulation distortion factor (at the time of effective output) 0.003% or less
Frequency characteristic 5Hz - 300kHz
Pre-amp section
Circuitry All stage direct DC servo circuits
Input sensitivity/impedance Phono MM: 2.5mV/47kΩ
CD, Tuner, AUX and Tape1, 2: 150mV/10kΩ
Output level/impedance Rec output: 150mV/100Ω
Pre-amp output: 1.23V/600Ω
signal-noise ratio Phono MM: 90dB (- 142dBV)
CD, Tuner, AUX and Tape1, 2: 110dB (- 126dBV)
RIAA deviation 10Hz - Within 100kHz ±0.2dB
Phono maximum permissible input 300mV
Input/output phase In-phase
Synthesis
Power circuit system Stage independent shunt regulator system + reserve power source
Electric power consumption 250W
External size Width 430× height 150× depth 430mm
Weight 24kg




NEC A-11 Reserve II Type BC/BU EXTREMELY RARE Stereo Integrated Amplifier

Product form

$1,199.99

Out of stock, Unknown restock estimate.

High quality integrated amplifier Power amplifier sectionCircuitry All stage direct DC servo circuitsEffective output (both ch drive,Sine wave continuous power,... Read more

ConditionUsed… Read more

Model: A-11

Working Status - Full Functionality - This item is in full working order with all features operational.

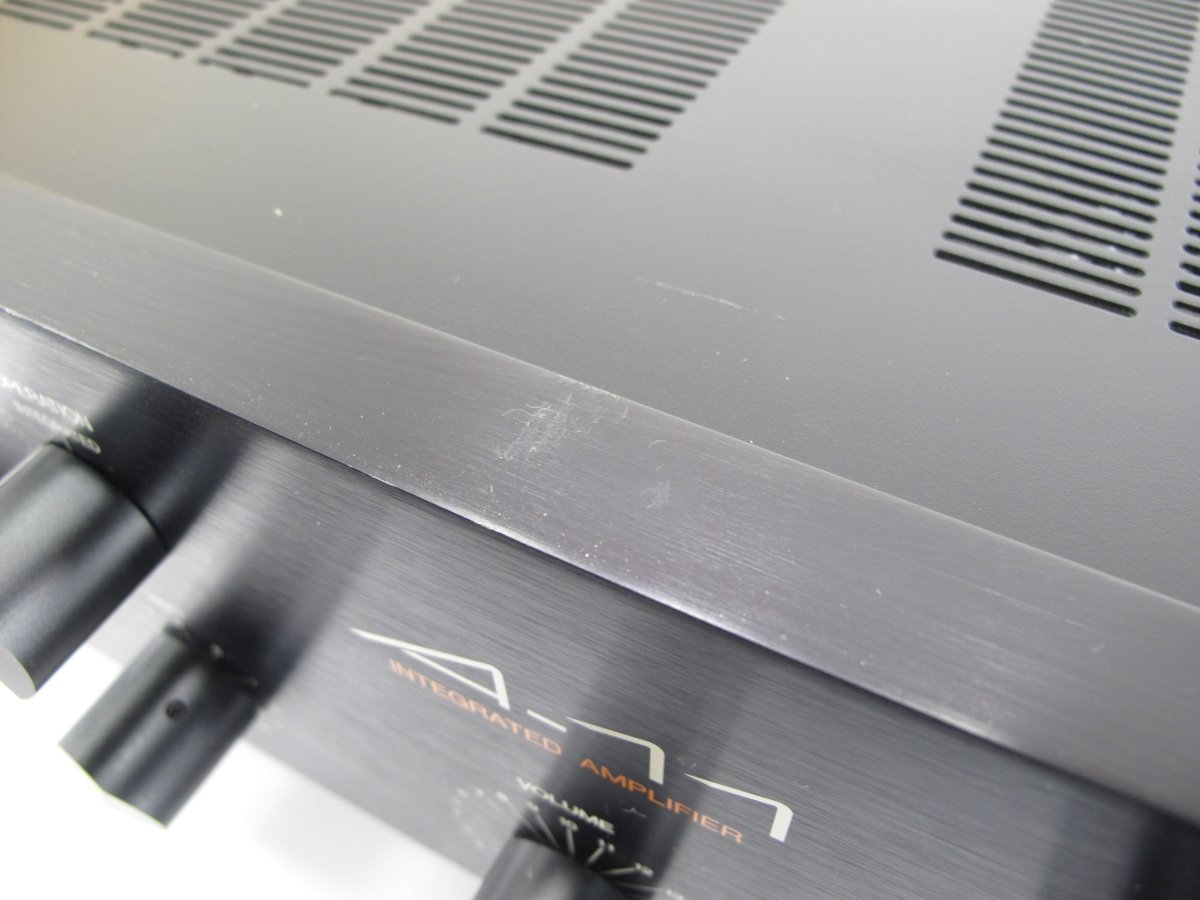

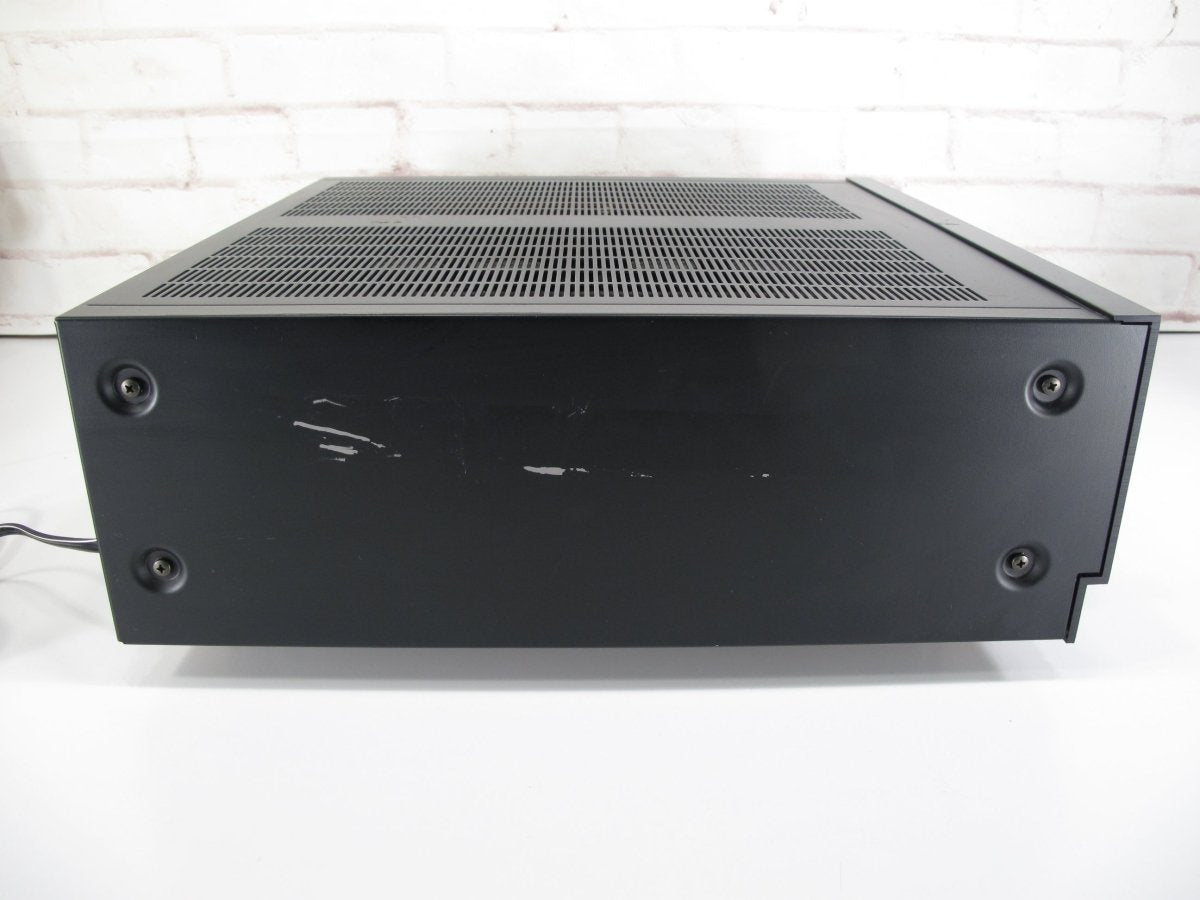

Cosmetics - Average - It looks to be in average cosmetic shape for an item of this type with a typical amount of cosmetic wear to a comparable item of its age and use as shown.

Included items - A-11 integrated amplifier only

  • Free shipping from the US
  • Photos shown of actual item.
    • Guaranteed secure & safe checkout.

    Product identifiers

    Description

    High quality integrated amplifier

    Power amplifier section
    Circuitry All stage direct DC servo circuits
    Effective output (both ch drive,
    Sine wave continuous power, 20Hz - 20kHz) 140W+140W (4Ω)
    70W+70W (8Ω)
    All the harmonic distortion factors (at the time of effective output) 0.003% or less
    Cross modulation distortion factor (at the time of effective output) 0.003% or less
    Frequency characteristic 5Hz - 300kHz
    Pre-amp section
    Circuitry All stage direct DC servo circuits
    Input sensitivity/impedance Phono MM: 2.5mV/47kΩ
    CD, Tuner, AUX and Tape1, 2: 150mV/10kΩ
    Output level/impedance Rec output: 150mV/100Ω
    Pre-amp output: 1.23V/600Ω
    signal-noise ratio Phono MM: 90dB (- 142dBV)
    CD, Tuner, AUX and Tape1, 2: 110dB (- 126dBV)
    RIAA deviation 10Hz - Within 100kHz ±0.2dB
    Phono maximum permissible input 300mV
    Input/output phase In-phase
    Synthesis
    Power circuit system Stage independent shunt regulator system + reserve power source
    Electric power consumption 250W
    External size Width 430× height 150× depth 430mm
    Weight 24kg
