Working Condition - Excellent
When you get the item, it will have all features and functions fully operational. For more information on how we checked this item (if pre-owned), read the full listing.Cosmetic Condition - Good
This item is in good cosmetic condition with average wear for this type of item. It will likely have minor to average wear for an item of this type. Be sure to check out the photos for more details. Be sure to check the photos, but if any out of the ordinary flaws stood out to us, we'll make note of it here:
Accessories

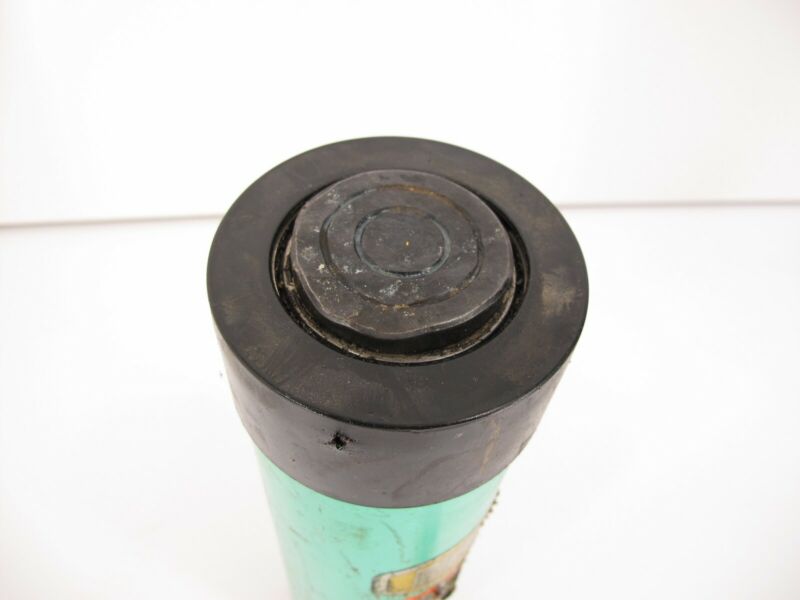

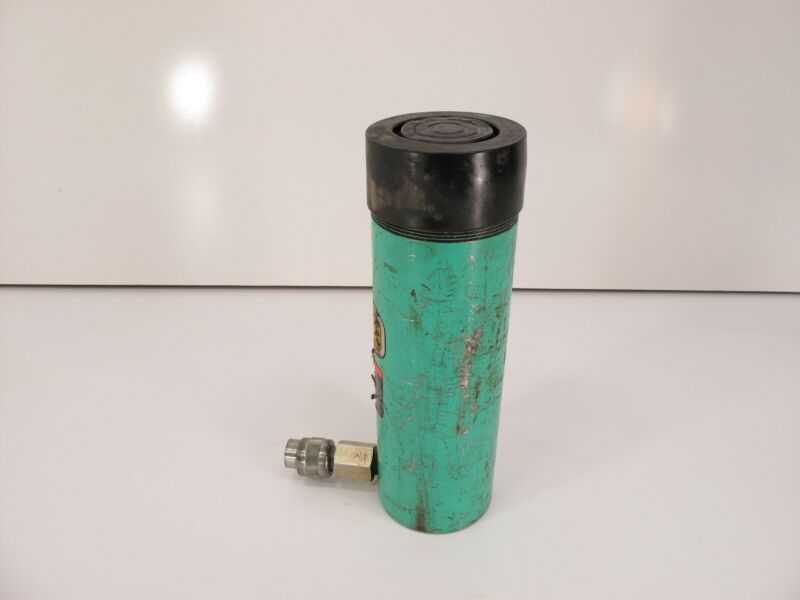

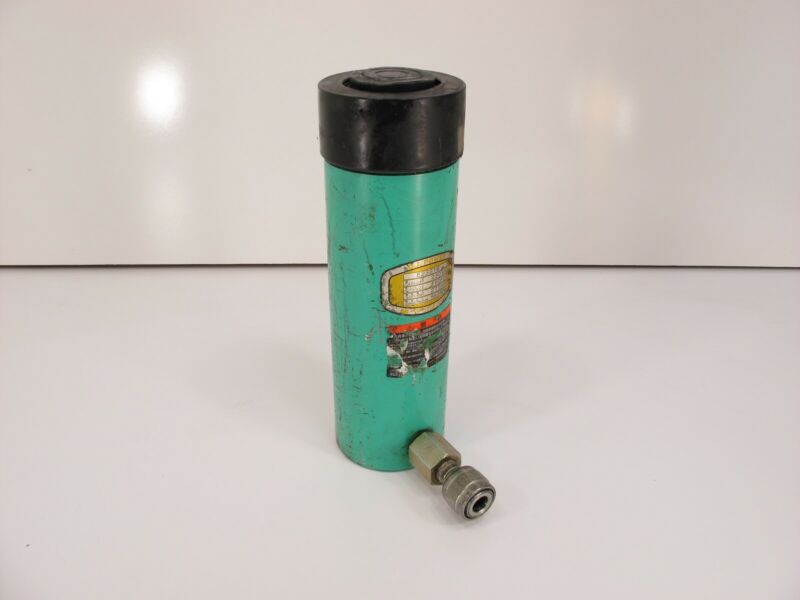

- Cylinder as shown
Details & Specs
This information is to be used for reference only. Accessories or warranties mentioned may not apply to this listing. Please check the accessories section and photos to see everything that comes with this item.

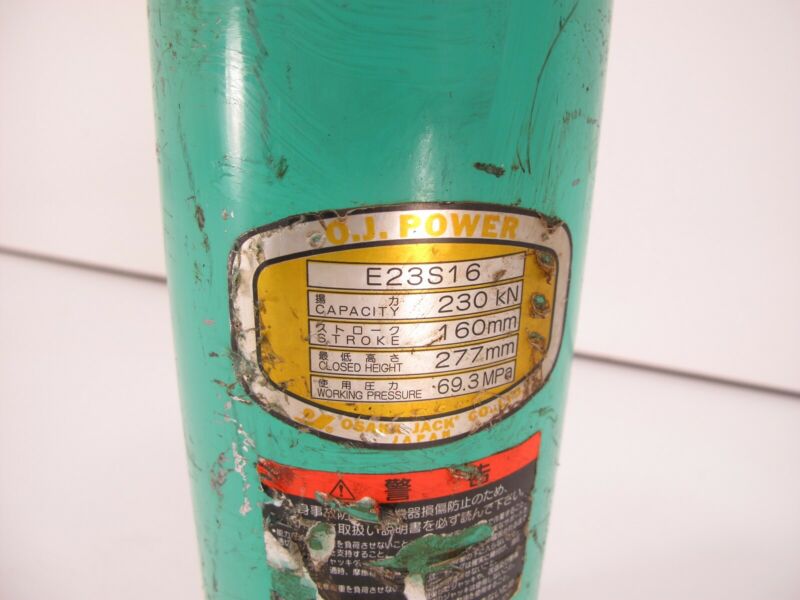

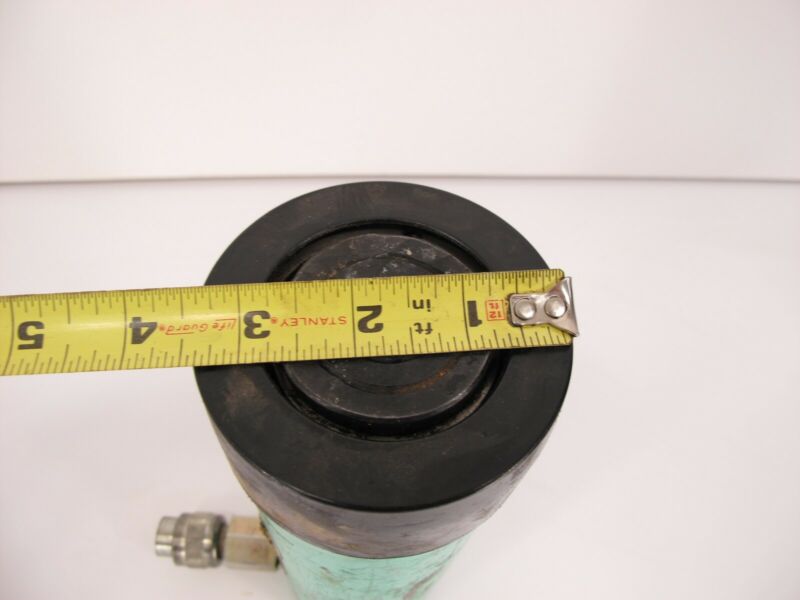

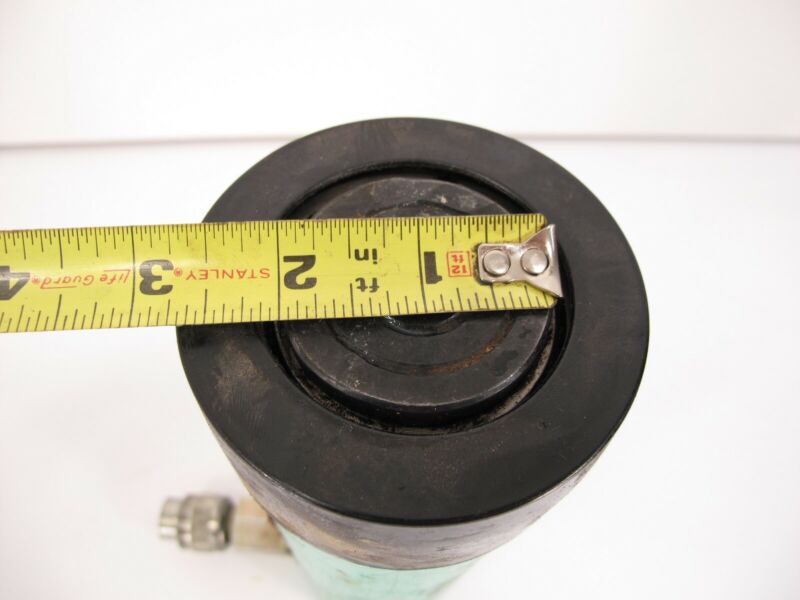

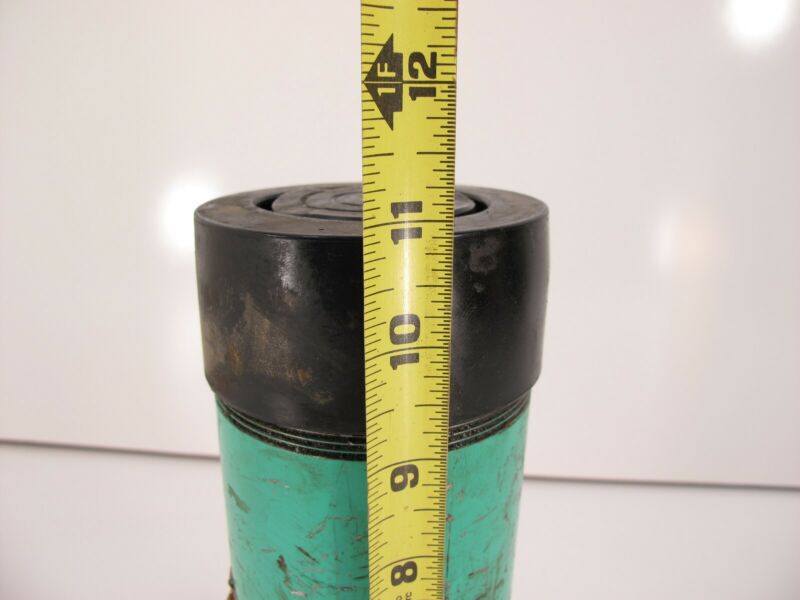

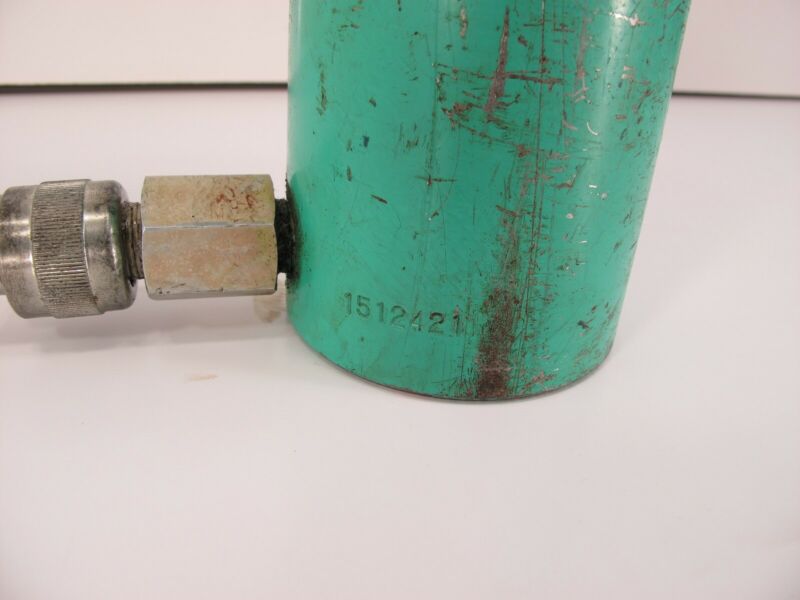

Port Screw mNPT3/8Color Screw Diameter a (mm)M85x2Stroke (mm)160Weight (kg)About 10.0 Reach Capability (mm)160Dimension t (mm)8Pressure Area (cm2)33.18Required Oil Volume (mL)531Minimum Height H (mm)277Cylinder Outer Diameter D (mm)85Cylinder Inner Diameter d (mm)65Attached CouplersB-6JGColor Screw Length j (mm)40Rod screw diameter b(mm)M40x2Rod screw length k(mm)25Base screw diameter c(mm)4-M10 x 15L (pitch phi55)Rod Diameter f (mm)56Saddle Diameter o (mm)50Height to Port L (mm)22Lifting Power (kN [tf])230[23]Height to Coupler L (mm)22
