This item is pre-owned.
Working Condition - Good
We checked out this item for functionality & found to be in good condition. When you get the item, it will have all features and functions fully operational with the following quirk: The roll pin & handle are not included/missing.Cosmetic Condition - Fair

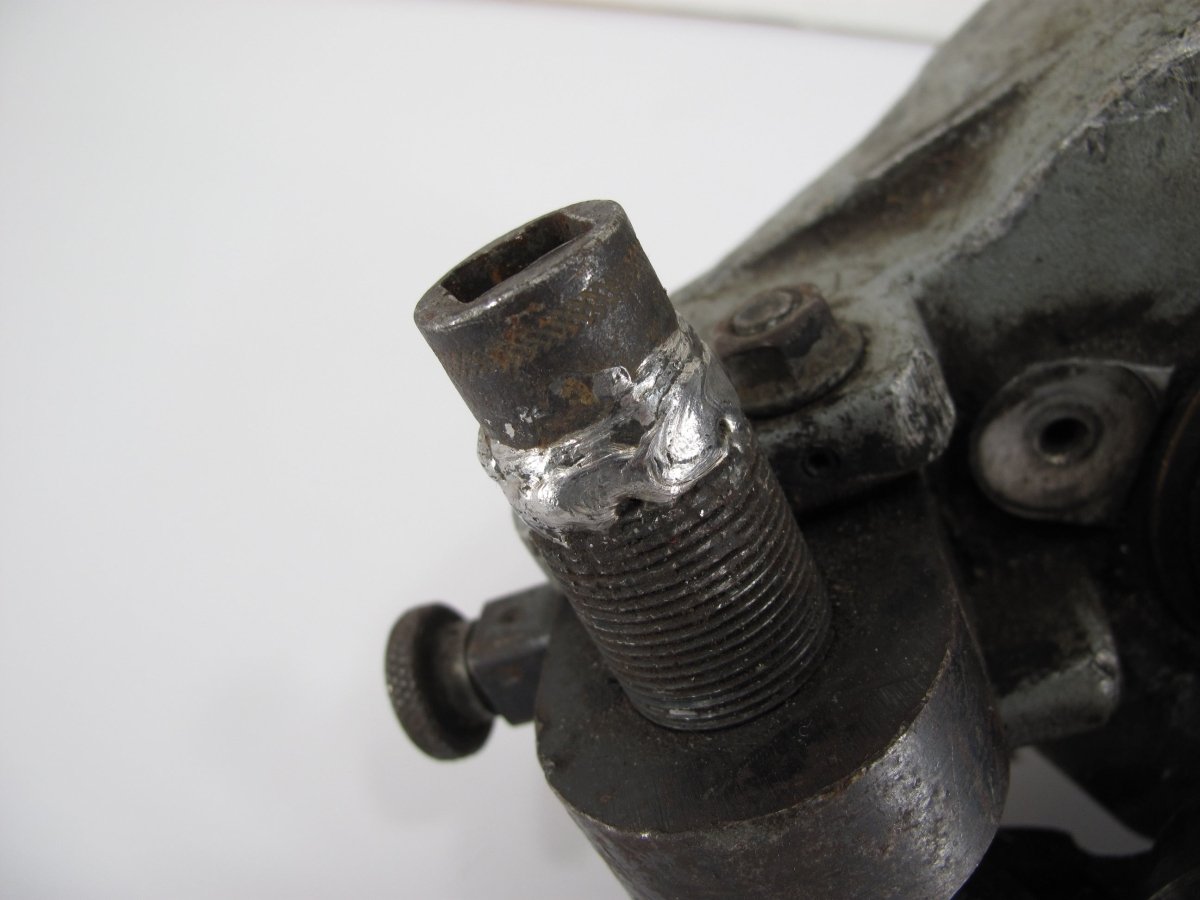

Cosmetically speaking, it looks to be in fair cosmetic condition with an average amount of flaws. However, we did notice the following: There is some solder at the top of the feed screw. It doesn't seem to have an effect on functionality when tested under load.
Accessories
- 914 roll feed only
Details & Specs
This information is to be used for reference only. Accessories or warranties mentioned may not apply to this listing. Please check the accessories section and photos to see everything that comes with this item.
The RIDGID No. 914 Roll Groover is designed to man- ually form standard roll grooves on pipe or copper tube that is installed. The 914 is lightweight, only 18 lbs., and capable of grooving steel, stainless steel, PVC and aluminum pipe from 11/4′′ to 6′′. The 914 can roll groove 2′′ to 6′′ copper tube (Type K, L, M, and DWV) by chang- ing the standard roll set with the optional roll set for copper. The 1/2′′ hand ratchet rotates a feed screw that advances a groove roll into the pipe/tube to form a groove that meets specifications required for mechanical coupling systems.
Pipe Capacity ................11/4′′ to 6′′ Schedule 10
11/4′′ to 4′′ Schedule 40 (see
Table II for wall thickness)
Copper Tube Capacity ..2′′ to 6′′ OD.
(Type K, L, M, DWV.)
Depth Adjustment..........Feed Screw w/1/2′′ Female Drive
Actuation ......................1/2′′ Ratchet for feed and rota- tion
Weight ..........................18.2 lbs. (8.3 kgs.)
