This item is new.

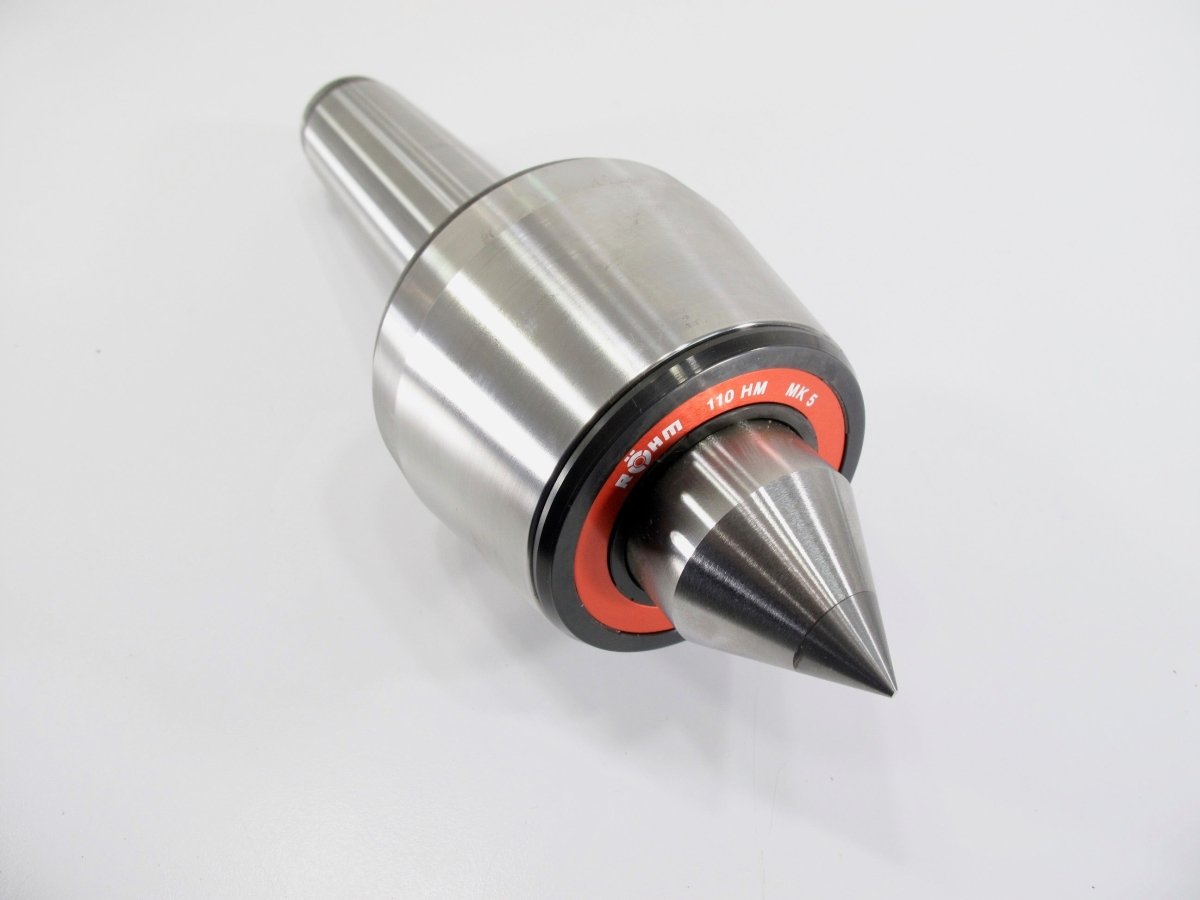

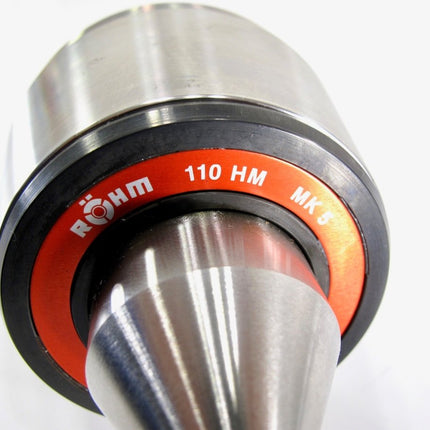

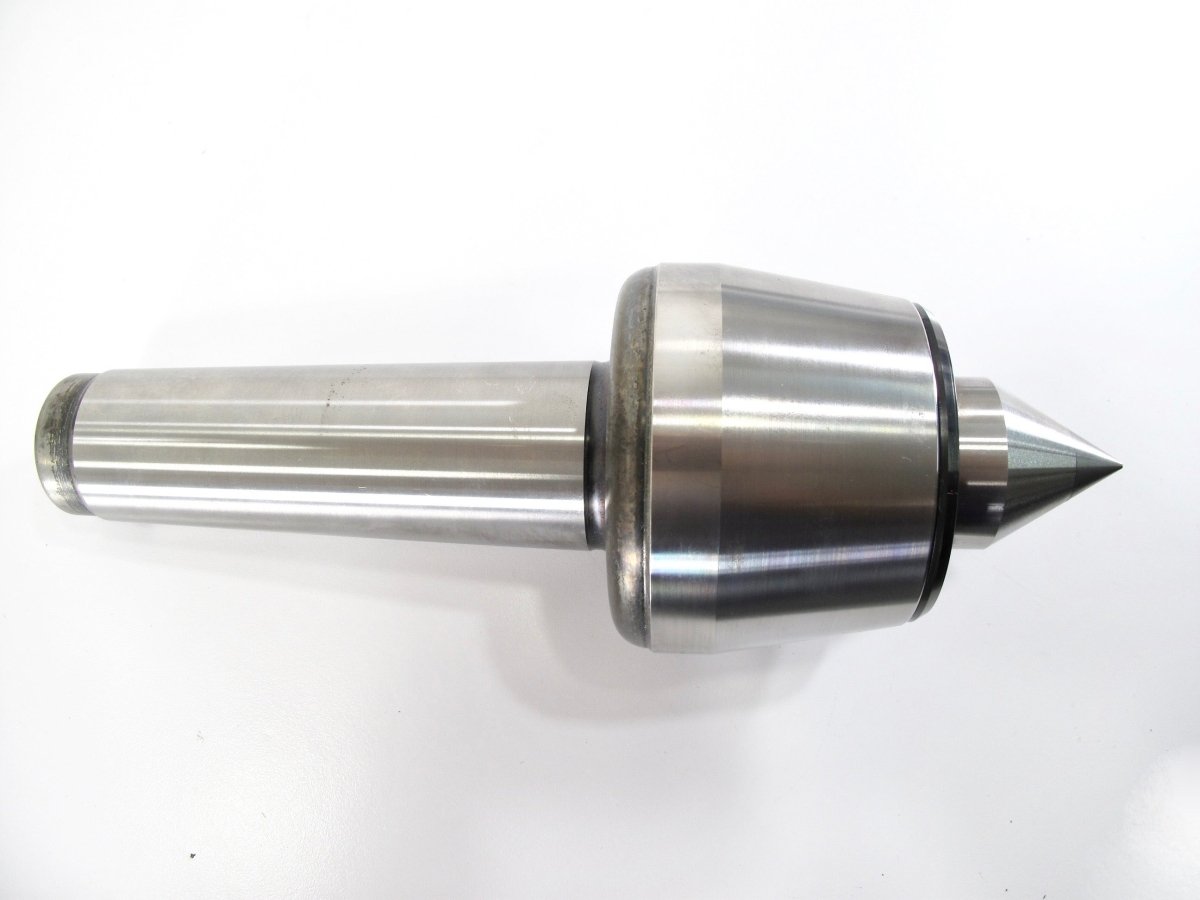

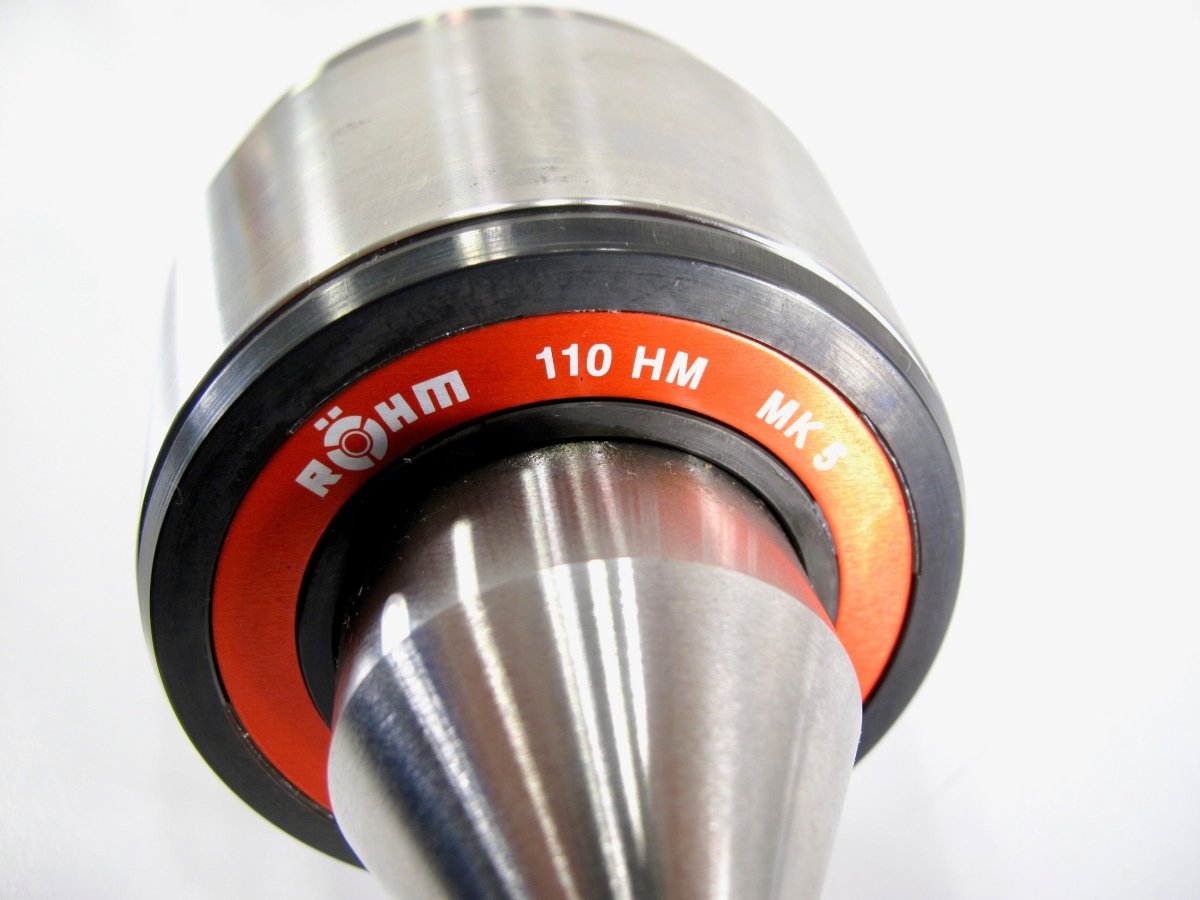

Revolving center only
Mounting: 5 Morse taper
Size: 110
Dimension A : 129 mm
Dimension B: 88.5mm
Dimension C: 18mm
Dimension D: 40mm
Dimension G : 44.399mm
Dimension K: 49.5mm
Max. radial runout tolerance: 0.005 mm
Max. workpiece weight: 1000 kg
Max. rotational speed: 3000 min-1
HGNr .: W309
Functional Condition - Excellent
We checked out this item for functionality & found to be in excellent condition. When you get the item, it will have all features and functions fully operational.Cosmetic Condition -New/Unused Flawless
Cosmetically speaking, it looks to be in new and/or flawless cosmetic condition. It is either a new, unused item or was a display model.
What's Included
Details & Specs
This information is to be used for reference only. Accessories or warranties mentioned may not apply to this listing. Please check the accessories section and photos to see everything that comes with this item.Execution: body hardened and ground, with a point angle of 60 °. Tip with wear-resistant tungsten carbide insert.Triple bearing for high axial and radial loads.Long-life solid lubricant.
Technical parameters:
