Description
Measures ohms, AC/DC volts, true-RMS AC, AC/DC amps, Hz frequency and more to cover many automotive electrical needs
• Large, white backlit display for easy reading, plus quick identification of symbols in low light conditions and with the backlight off—the best Snap-on® meter in bright daylight

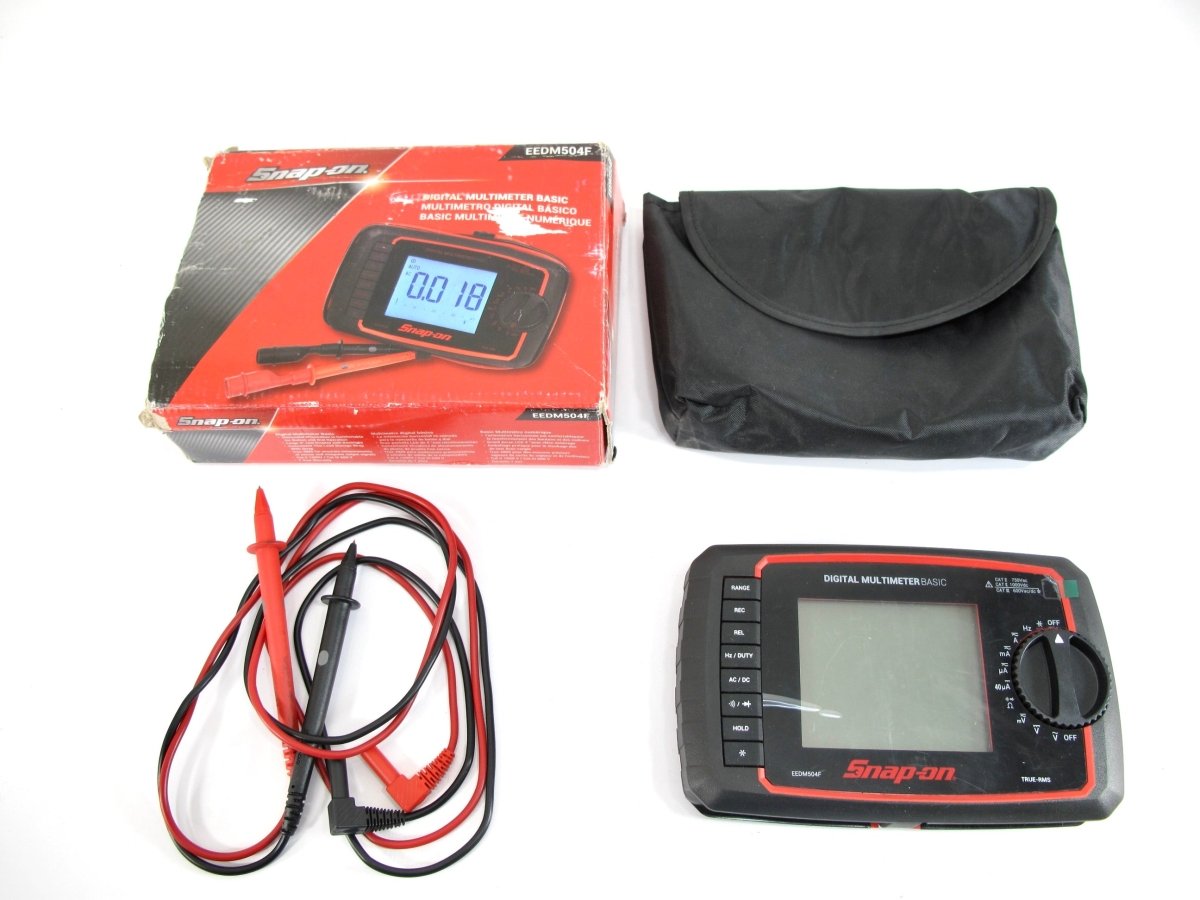

• Convenient test lead storage wrap with retention strap
• Built-in tilt stand and optional strap hanger (EEDMMAGSTRAP) for easy viewing
• Hz/Duty (Duty Cycle)—measure in percent the ON time of sensors or other devices
• REC (record mode)—store minimum and maximum readings over a measurement period

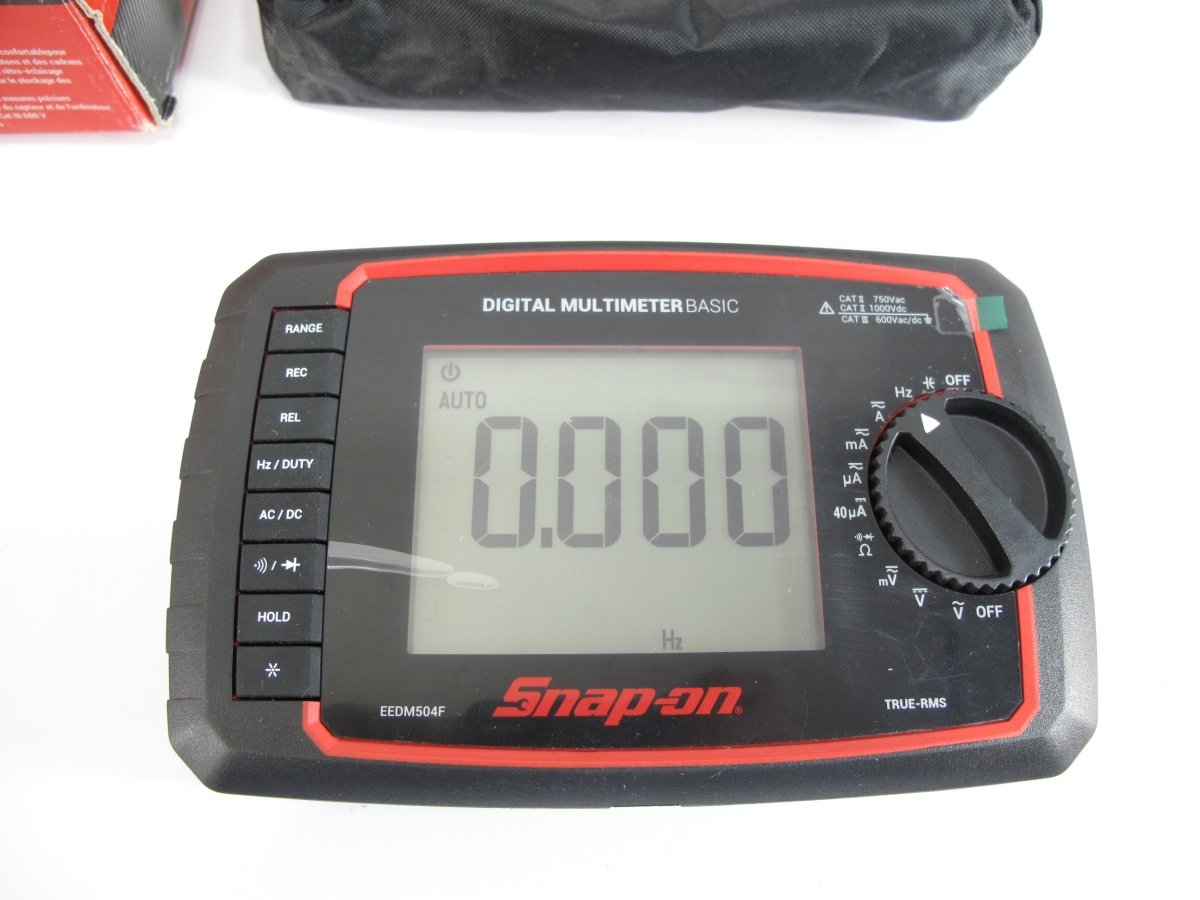

• LCD display—4,000 count with 41-segment bar graph
• Seven-year limited warranty
• TRUE-RMS—True-RMS measurement on ACV and ACA for accurate readings on all types of of AC waveforms
• High-resolution DC mV range-additional 40 mV range with 0.01 mV resolution for improved accuracy when performing low-voltage measurements
• ACV (AC Volts)—measure the voltage of ABS wheel sensors
• DCV (DC Volts)—measure the voltage of circuits and sensors

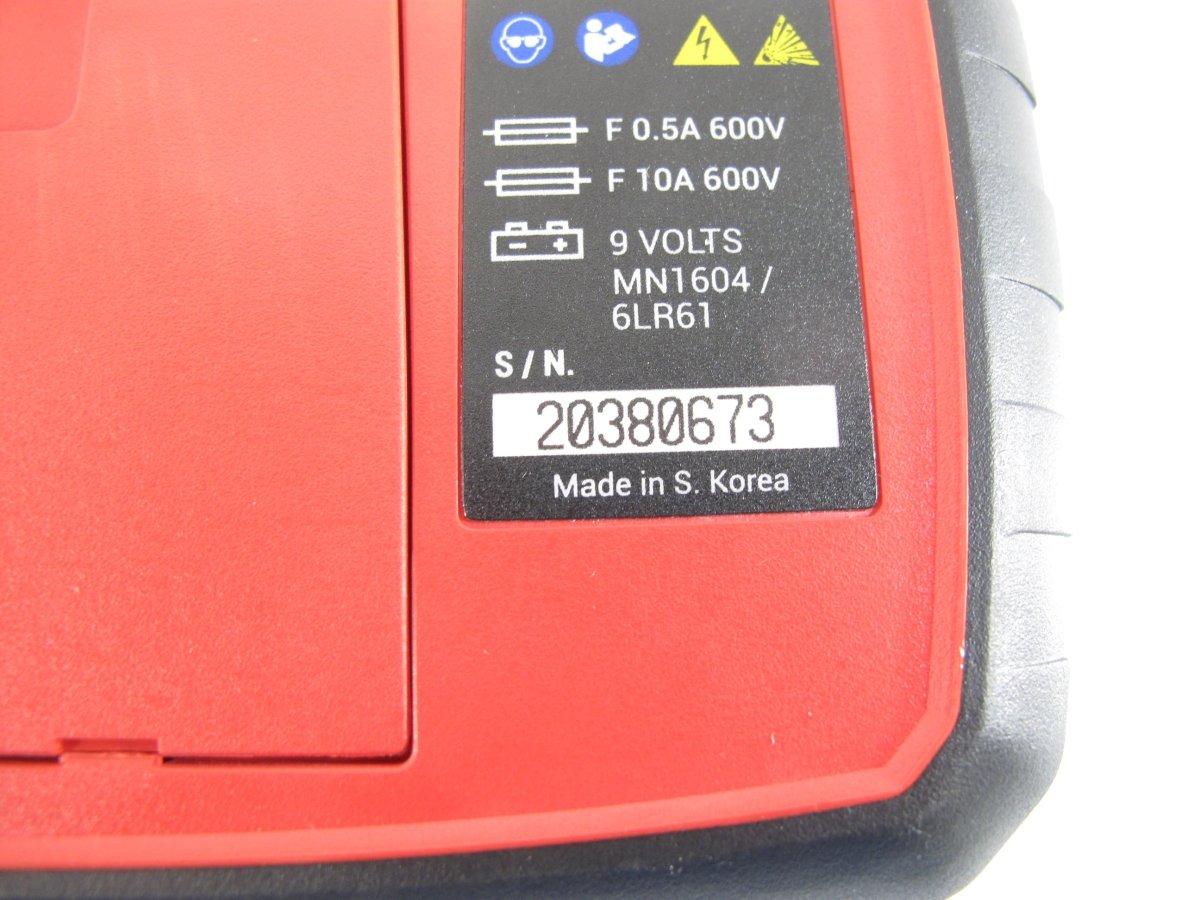

• Separate fuse/battery compartment—easily removed for battery/fuse replacement
• REL (Relative Mode)—factor out lead resistance for improved low ohm measurements or compare readings to a known standard; can also be used for differential measurements
• Hold—lock the reading on the display for hard to read locations for future reference
• Ohms/Resistance—measure the resistance of spark plug wires, coils, sensors, and continuity of wiring
• AC/DC Current Functions (Amps)—measure the parasitic draw from the battery with ignition off
• Hz (Frequency)—measure the frequency of sensors and signals
• Separate Fuse/Battery Compartment—easily removed for battery/fuse replacement
