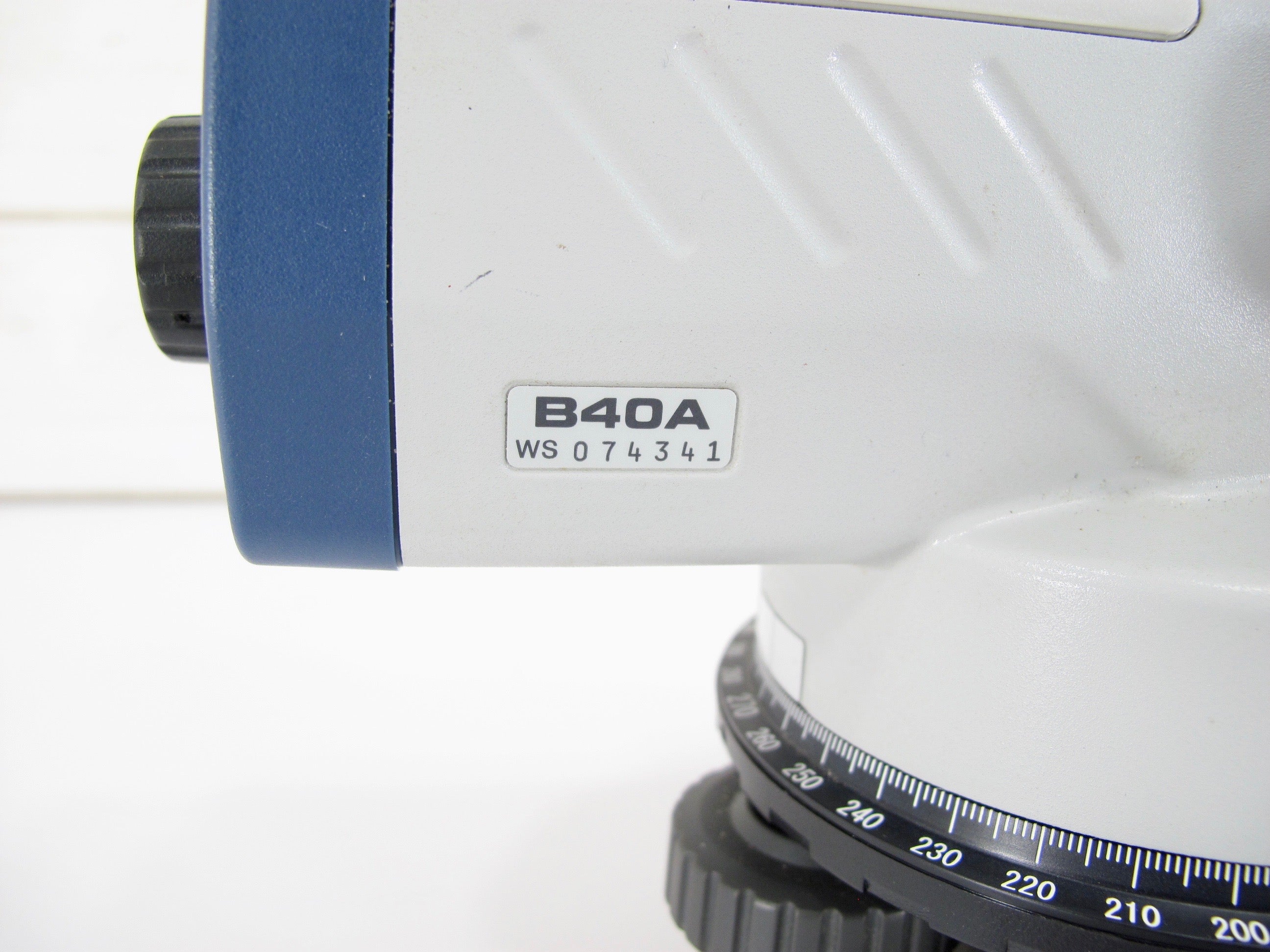

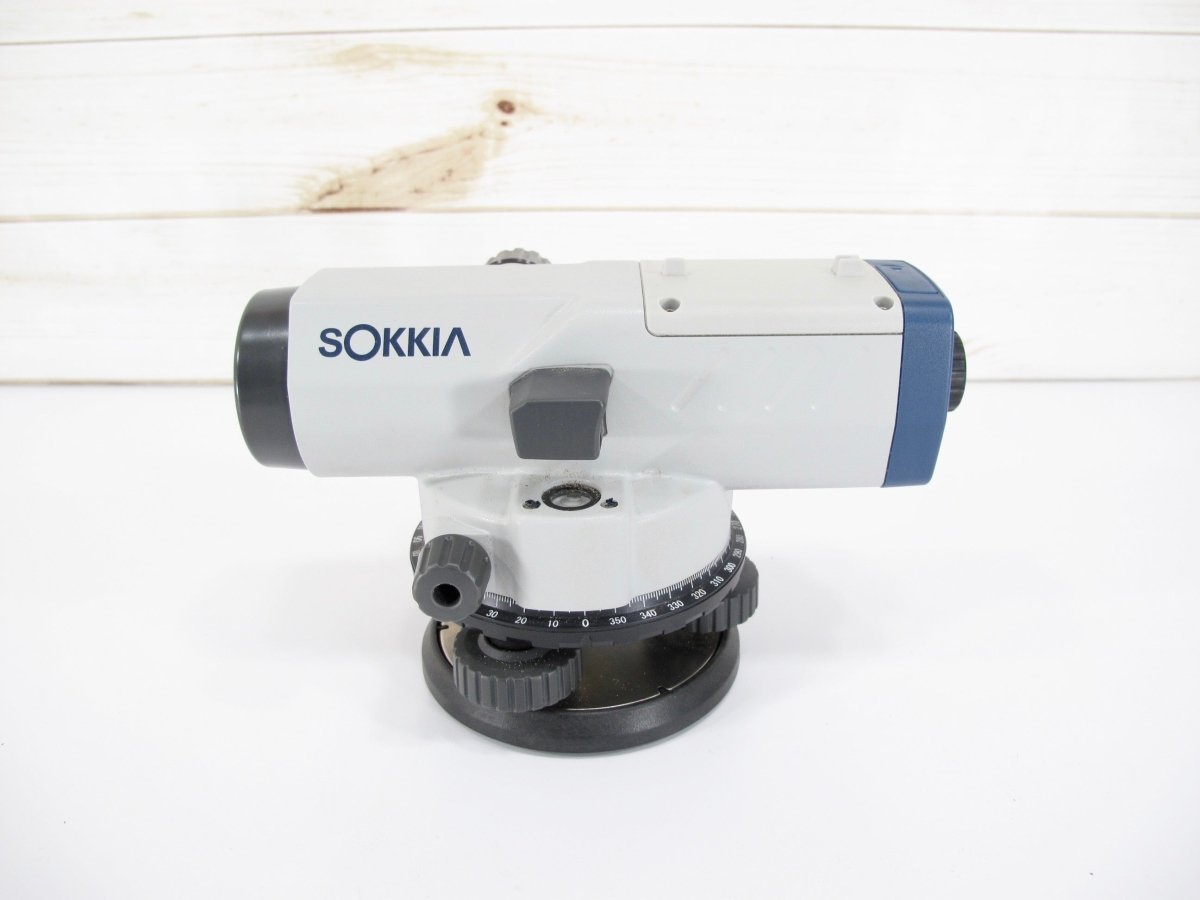

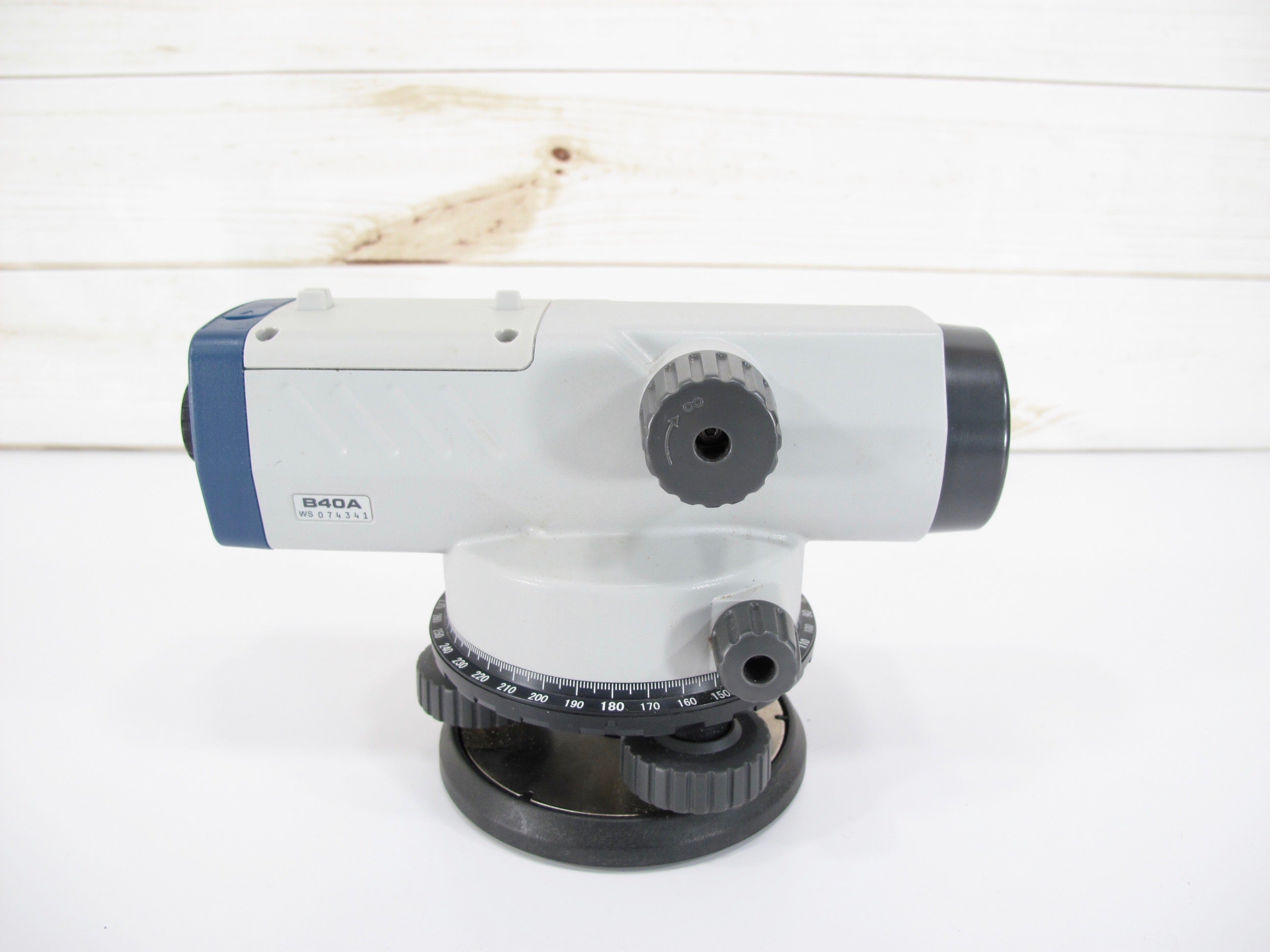

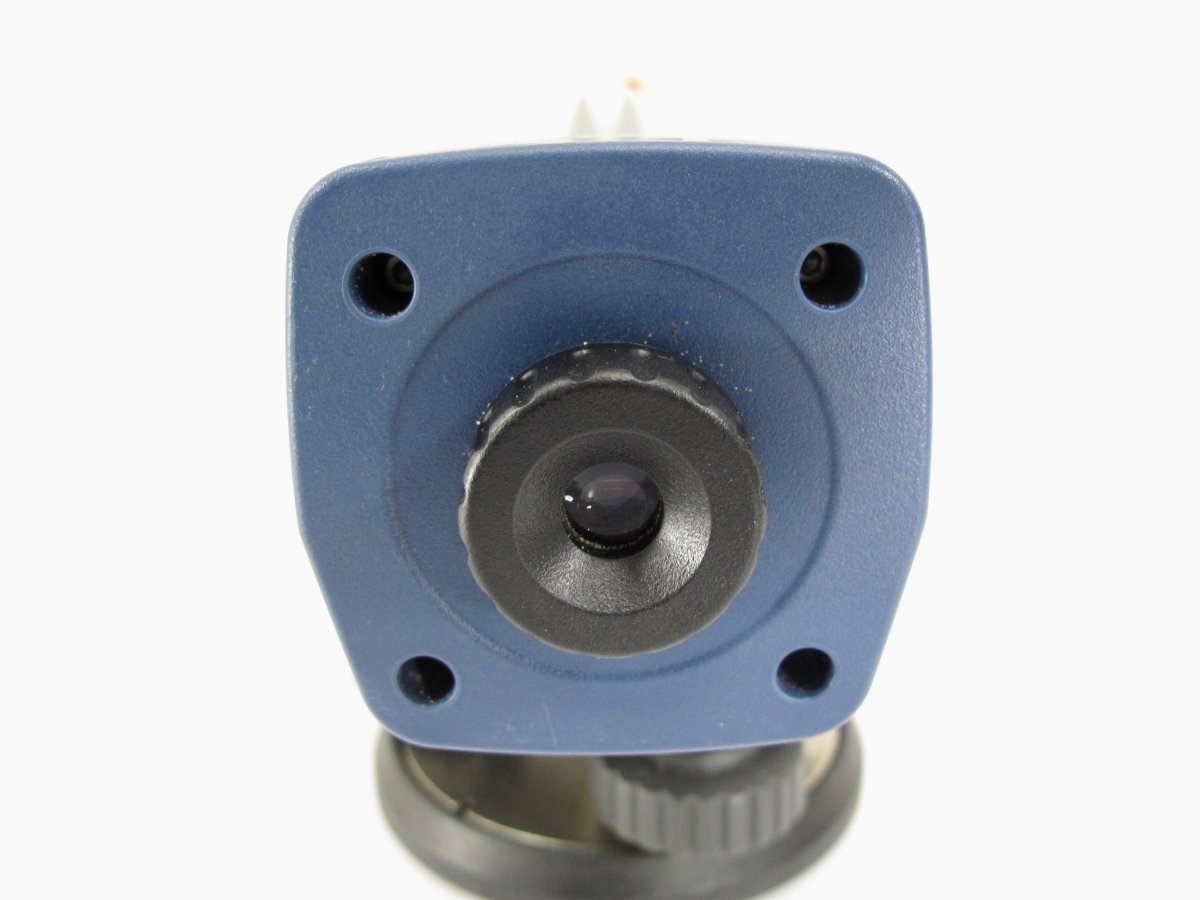

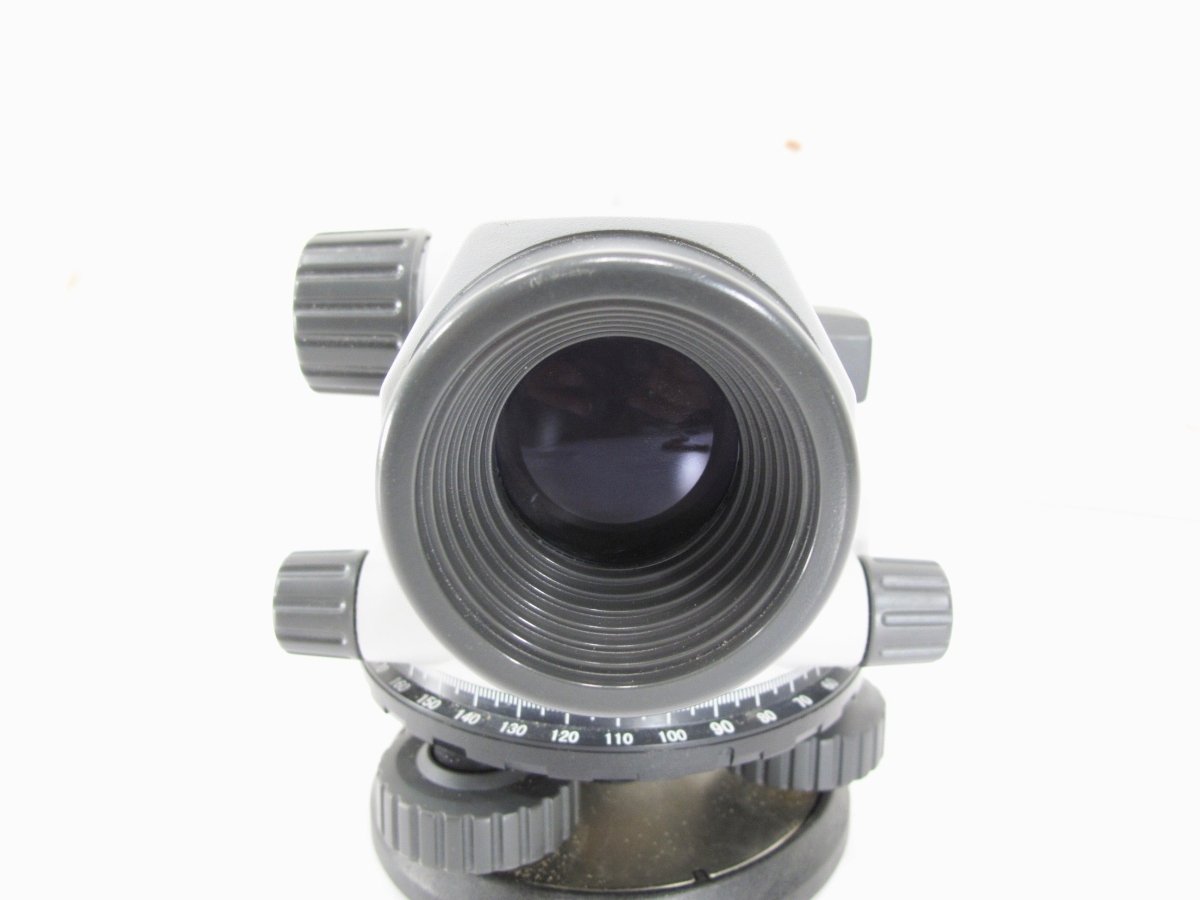

Sokkia B40A 24X Automatic Optical Surveying Construction Level 1009572-53

Add to Wishlist

amazon paymentsapple paydiscovergoogle paymastershopify payvisa

Item History - Pre-owned

Manufacturers Description - This information is to be used for reference only. Because the item may be pre-owned, accessories or warranties mentioned in this section may not apply to this specific item. Please check the “Included Accessories” section and photos for more details..

The Sokkia B40-25 24X Automatic Level is a highly accurate surveying and construction tool for taking a horizontal plane, height, as well as distance measurements. This optical instrument features a 24X magnification. To reduce eyestrain, it has an approximate 1/16 in. accuracy, 0.5 arc-second accuracy and a built-in compensator that provides exceptionally bright and sharp views. The B40-25 comes with an ultra-short focus distance of 7.9 in. from the end of the telescope, making it easy to use in confined locations. This survey instrument has a 1.26 in. objective aperture, a quick collimation and a pendulum compensator with a magnetic dampening system. The 360° horizontal angle measurement can be taken directly below the eyepiece. With an IPX6 rating, water projected in powerful jets from any direction have no harmful effects. It includes a 5/8-11 tripod thread that is compatible with most tripods. As an extra feature, there is an optional diagonal eyepiece that can facilitate work in extremely tight spots with little space behind the instrument.

  • 24X magnification
  • Built-in compensator
  • Quick collimation
  • 360° horizontal angle measurement
  • IPX6 high-pressure water jet resistant
  • Ultra-short focus distance of 7.9 in. from the end of the telescope
  • Objective aperture of 1.26 in.
  • Pendulum compensator with magnetic dampening system
  • Compensator range: 15 arc minutes
  • 1°/1 gon horizontal circle
  • Lightweight construction
  • 5/8 in.-11 tripod thread
  • 1/16 in. leveling accuracy and 0.5 arc-second compensator accuracy
  • Magnetic system withstands accuracy and auto leveling even with changes in temperature, vibration and shock
  • Product weighs 3.3 lbs.

Functional Condition - Full Functionality - This item is in full working order with all features operational.

Functionality Notes (if any) -

Cosmetic Condition - Above Average - The item shows a less than average amount of wear for its age.

Cosmetic Notes (if any) -

Included Accessories - Auto level only
