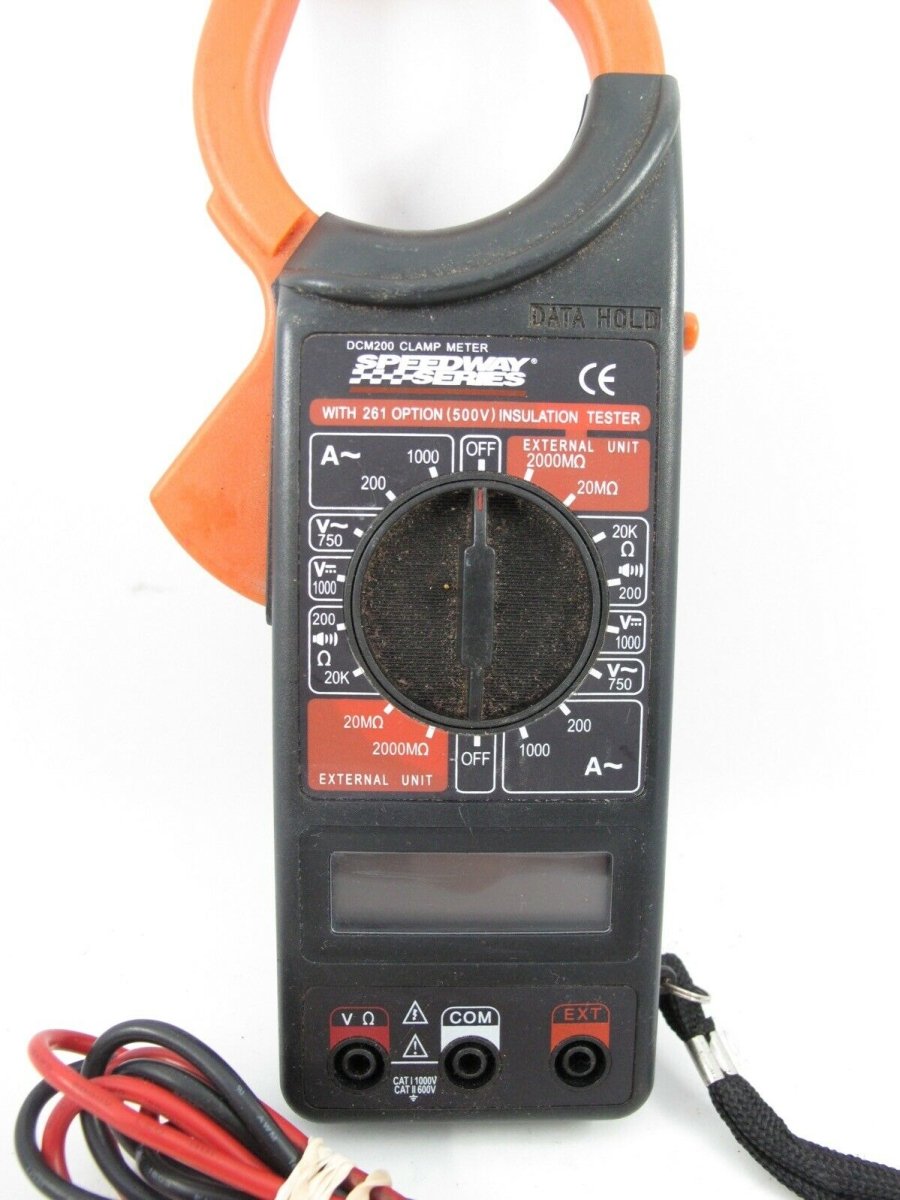

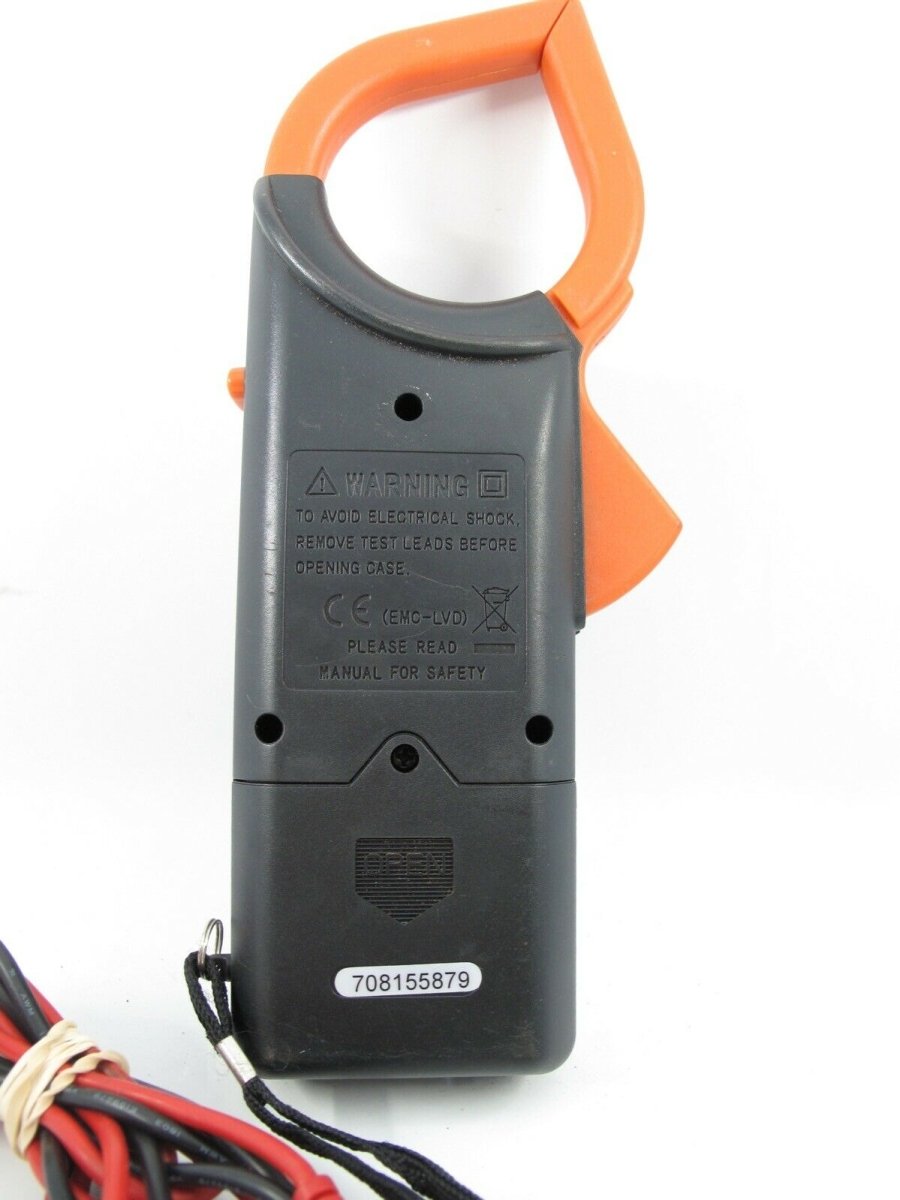

Speedway Series DCM200 Digital Clamp Meter Multimeter Tester w/ Leads
Item History - Pre-owned
Manufacturers Description - This information is to be used for reference only. Because the item may be pre-owned, accessories or warranties mentioned in this section may not apply to this specific item. Please check the “Included Accessories” section and photos for more details..
Features
- digital clamp meter
- 3 1/2 LCD display with automatic polarity indication
- data-hold function
- AC current measurements: max. 1000A
- insulation test: max. 2000Mohm (if used with optional DCMIT not included)
- voltage measurements: AC (max. 750V) and DC (max. 1000V)
- resistance measurements: max. 20Kohm
- includes carrying bag, test leads, and user manual
Specifications
- DC voltage: 1000V
- basic accuracy: ± 0.8%
- input impedance: > 9Mohm
- maximum input: 1000V
- AC voltage: 750V
- basic accuracy: ±1.0%
- input impedance: > 9Mohm
- maximum input: 750V
- AC current: 200/1000A
- basic accuracy: ±2.0%
- overload protection: 1200A for 60 seconds
- resistance: 200/20k (insulation test : 20M/2000M)
- basic accuracy: ±1.0% (±2.0% for insulation test)
- overload protection: 500V
- over range indication: yes "1"
- continuity buzzer: yes
- low-battery indication: yes "BAT"
- maximum display: 3 1/2 digits
- LCD display size: 0.57" x 1.86" (14.5mm x 47.2mm)
- ranging mode: manual
- data hold: yes
- backlight: no
- overall dimensions: 9.1" x 1.5" x 3.5"
- weight (with battery): ± 11.3oz
- power supply: 9V battery (included)
- packaging: retail box
- accessories: manual / test leads / battery / carrying bag
- auto power-off: no
Functional Condition - Full Functionality - This item is in full working order with all features operational.
Functionality Notes (if any) -
Cosmetic Condition - Average - It looks to be in average cosmetic shape for an item of this type with a typical amount of cosmetic wear to a comparable item of its age and use as shown.
Cosmetic Notes (if any) -

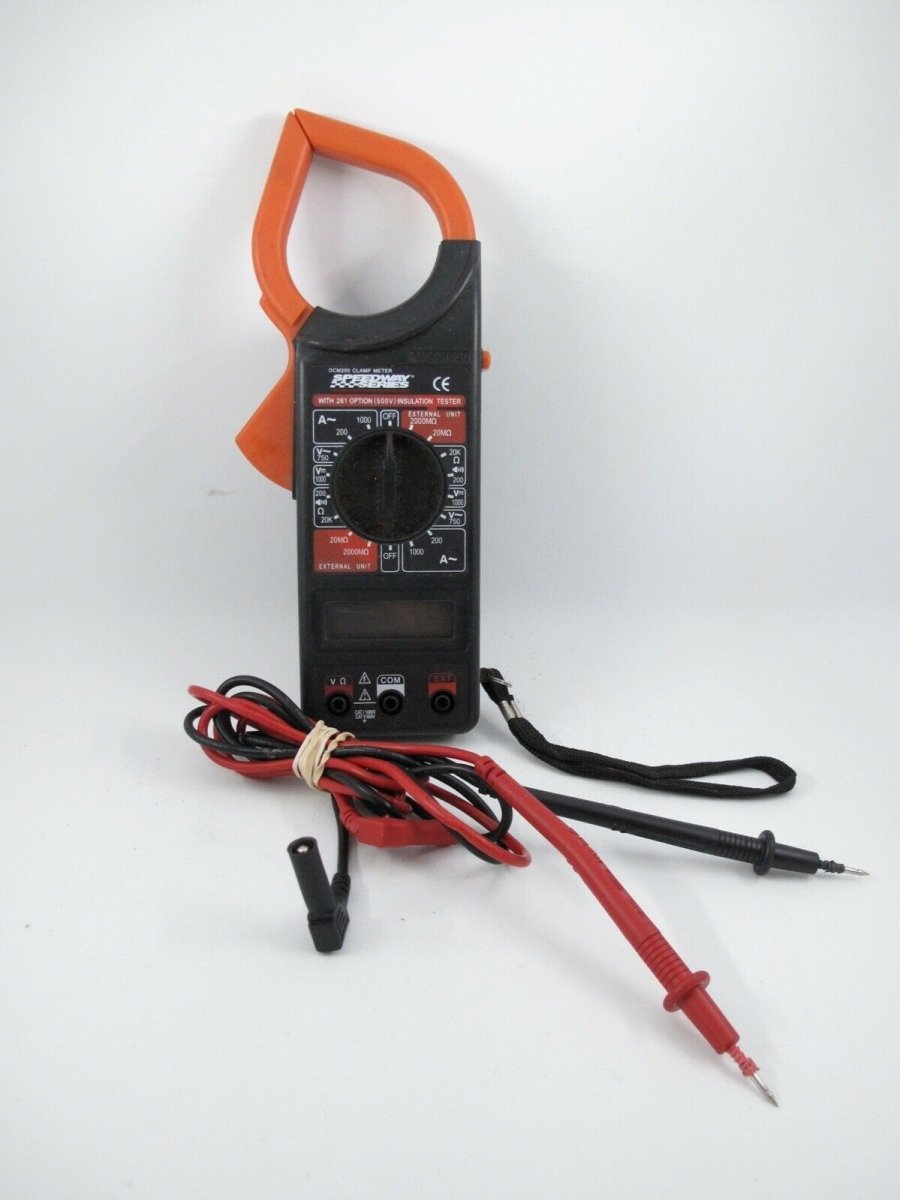

Included Accessories - Meter w/ strap, Leads
