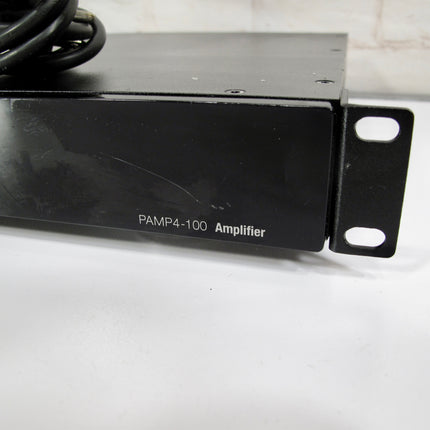

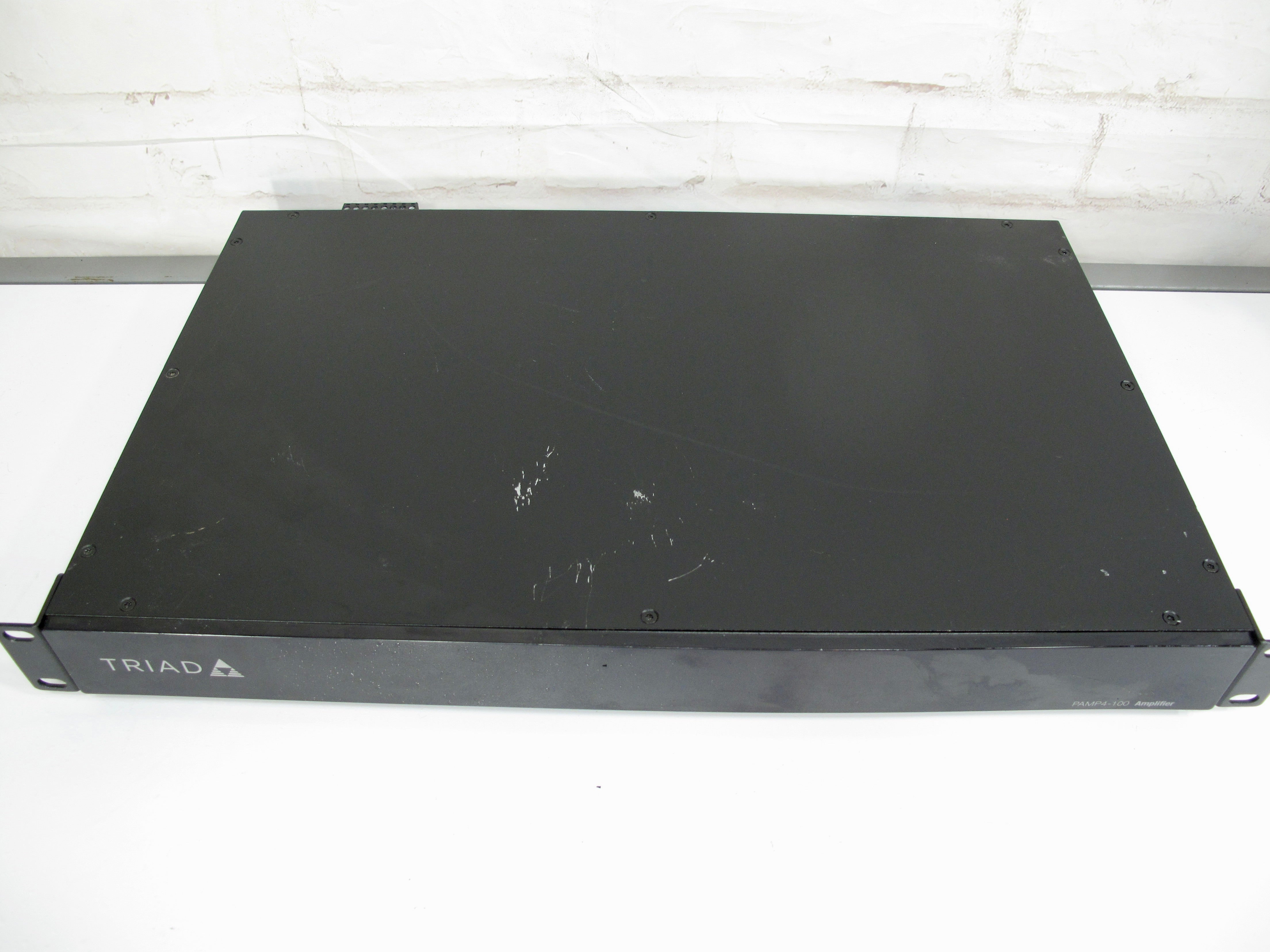

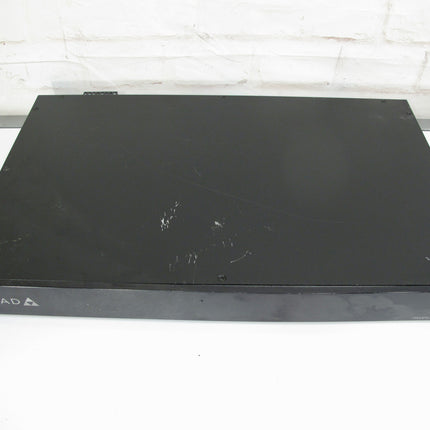

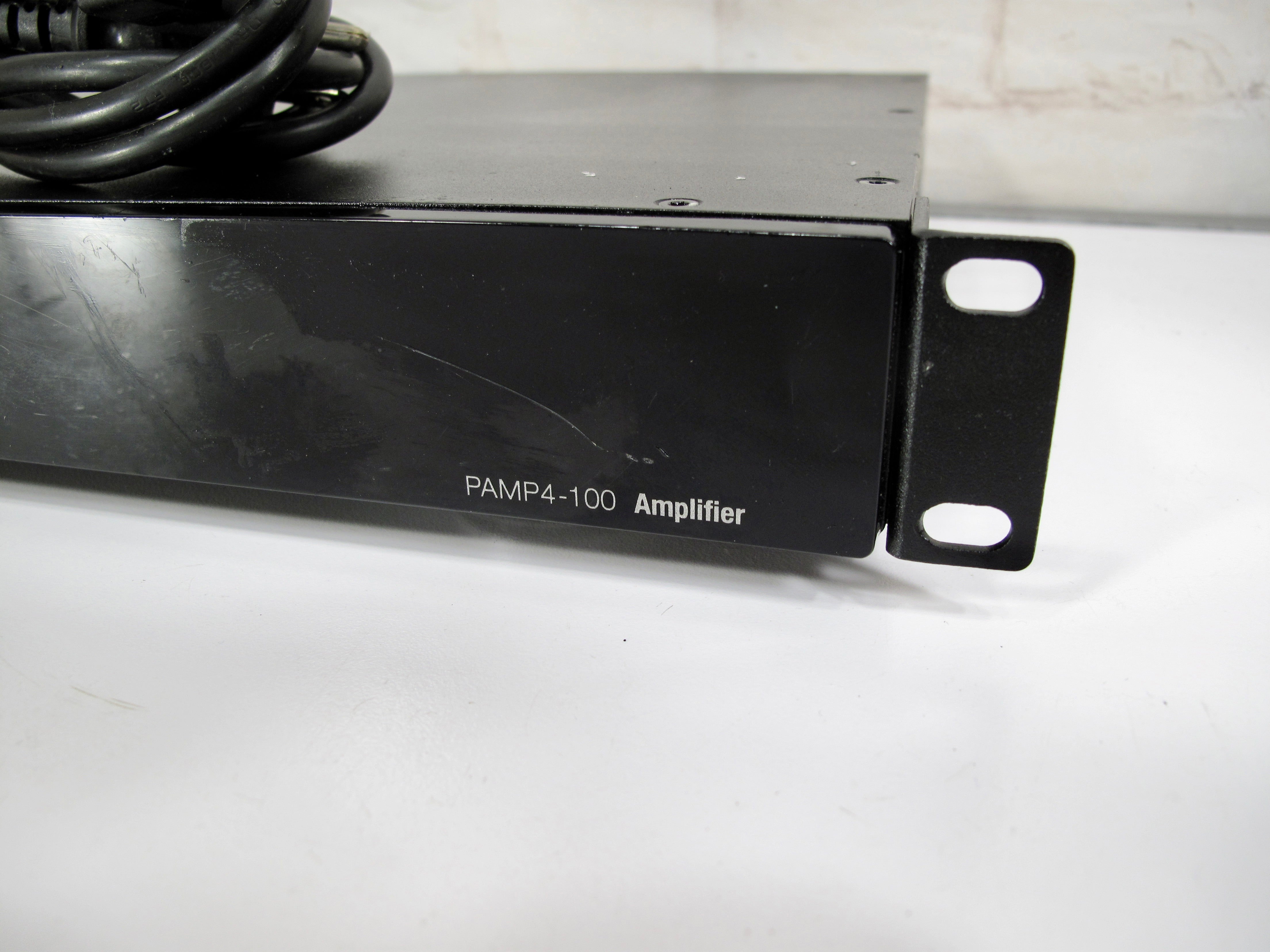

Triad Control4 TS-PAMP4-100 4-Zone Power Whole Home Audio Amplifier

Description

8 channels for 4 stereo audio zones with 1 U height, extremely compact. With the help of the ICE-Power amplifier, the small dimensions can be achieved thanks to the low waste heat. The Phoenix contact plugs, which are often used in installation power amplifiers, support the flat housing design. The bridge operation and audio routing can be set using mini-dip switches. No sound control is necessary, as the AMS 8×8 and AMS 24×24 allow the appropriate sound settings to be adjusted remotely.

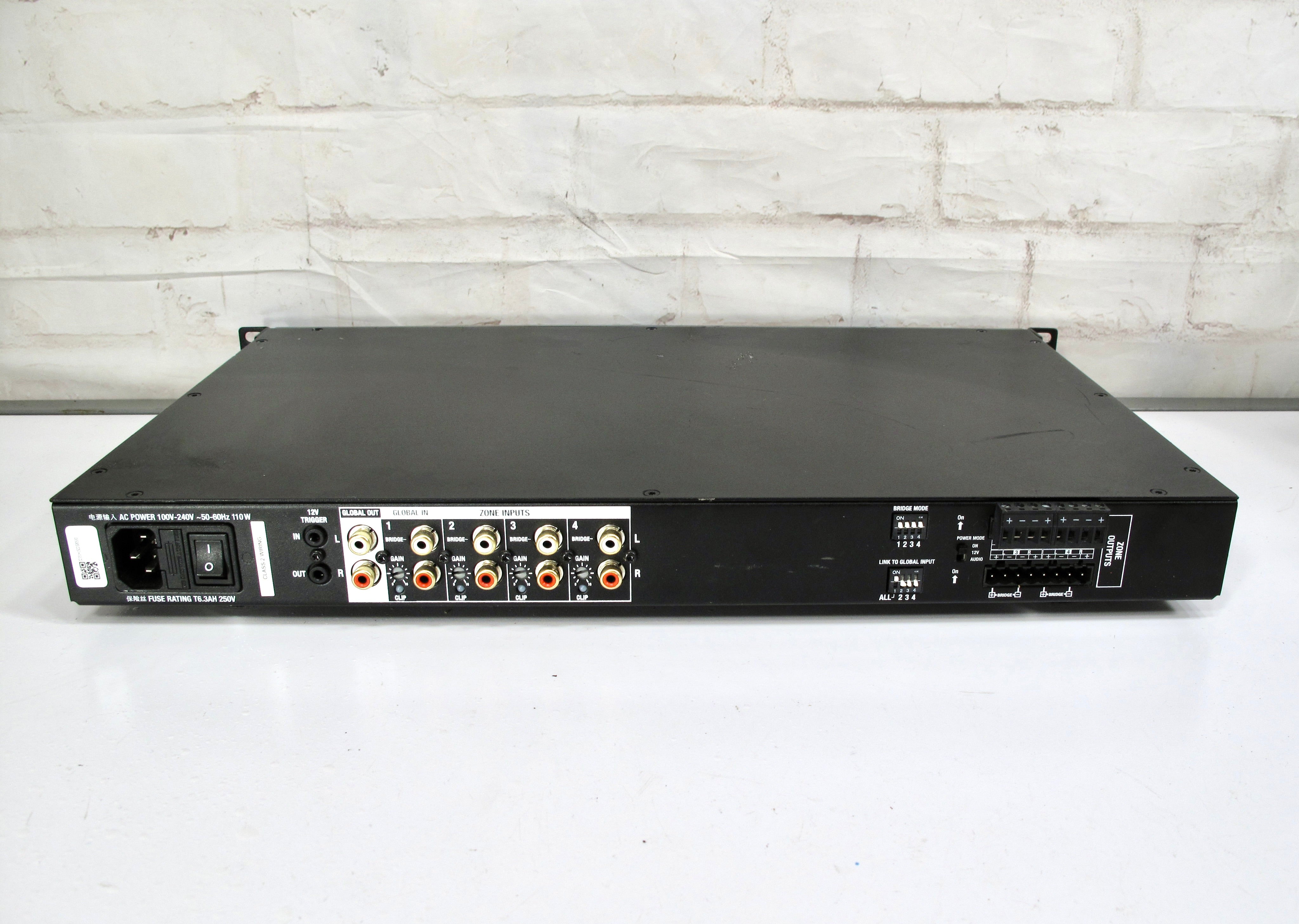

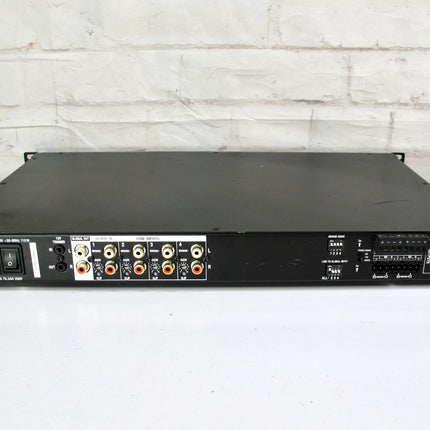

  • Audio inputs: 4x stereo analog RCA / 1x stereo as global input.

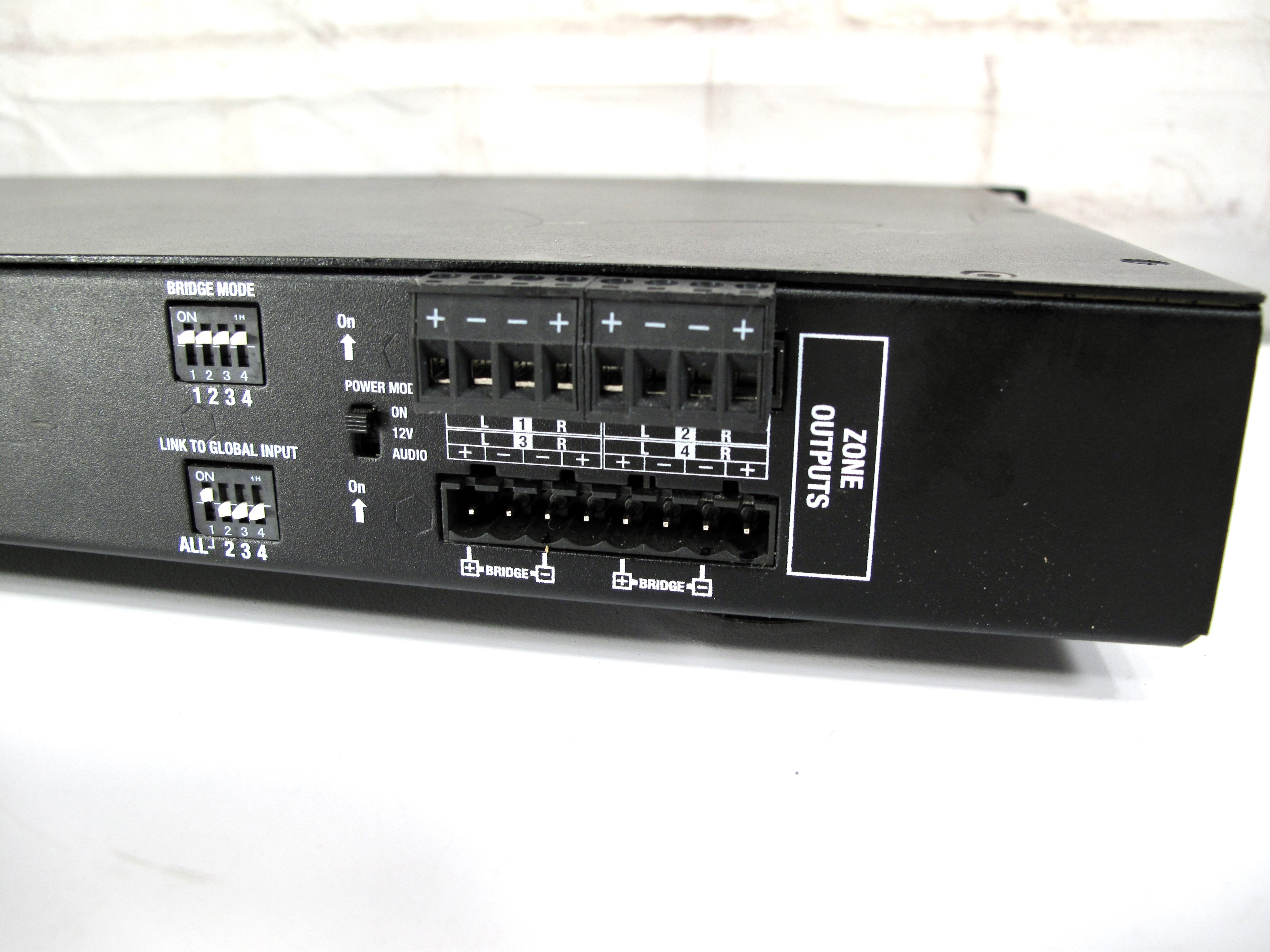

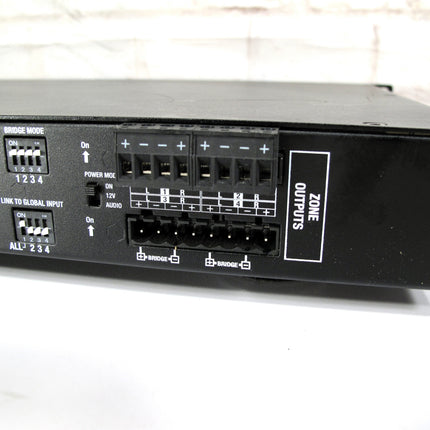

  • Speaker outputs: 8x Phoenix contact
  • 12V trigger: 1x 3.5 mm mini jack input and output
  • Power Mode: 3-way switch (Always on, 12V, Audio sense)
  • Dimensions: (H x W x D) 4.4 × 44.5 × 29.0 cm

TECHNICAL DATA TRIAD TS-PAMP4-100 4-zone multi-channel amplifier

  • Power per channel: 50W / 100W @ 8 / 4 Ohm – 1x stereo output active
  • Power per channel: 50W / 50W @ 8 / 4 Ohm – 4x stereo outputs active
    –
  • Power bridged: 200W @ 8 Ohm – 1x output active
  • Power bridged: 160W @ 8 Ohm – 1x stereo output active
  • Power bridged: 100W @ 8 Ohm – 2x stereo outputs active
    –
  • Frequency response: +/- 0.4 dB Ref 1kHz 10-20,000 Hz 4 or 8 ohms
  • Dynamic range: 110 dBA stereo, 115 dBA bridged
  • THD: < 0.003%, 4 Ω, SE, f=100 Hz, Po=1W
  • Base Noise: 45uV, A-Rated, 20Hz - 20kHz, SE

Triad Control4 TS-PAMP4-100 4-Zone Power Whole Home Audio Amplifier

Product form

$299.99  $270.10

Out of stock, Unknown restock estimate.

8 channels for 4 stereo audio zones with 1 U height, extremely compact. With the help of the ICE-Power amplifier,... Read more

ConditionUsed… Read more

Model: PAMP4-100

Working Status - Full Functionality - This item is in full working order with all features operational.

Cosmetics - Average - It looks to be in average cosmetic shape for an item of this type with a typical amount of cosmetic wear to a comparable item of its age and use as shown.

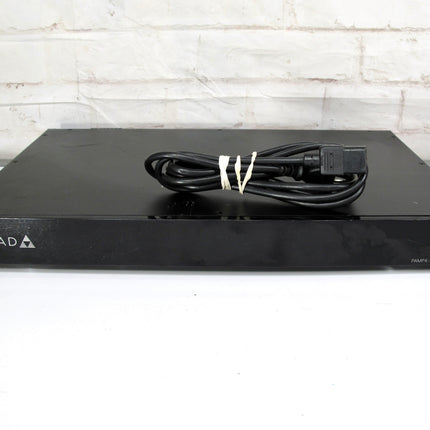

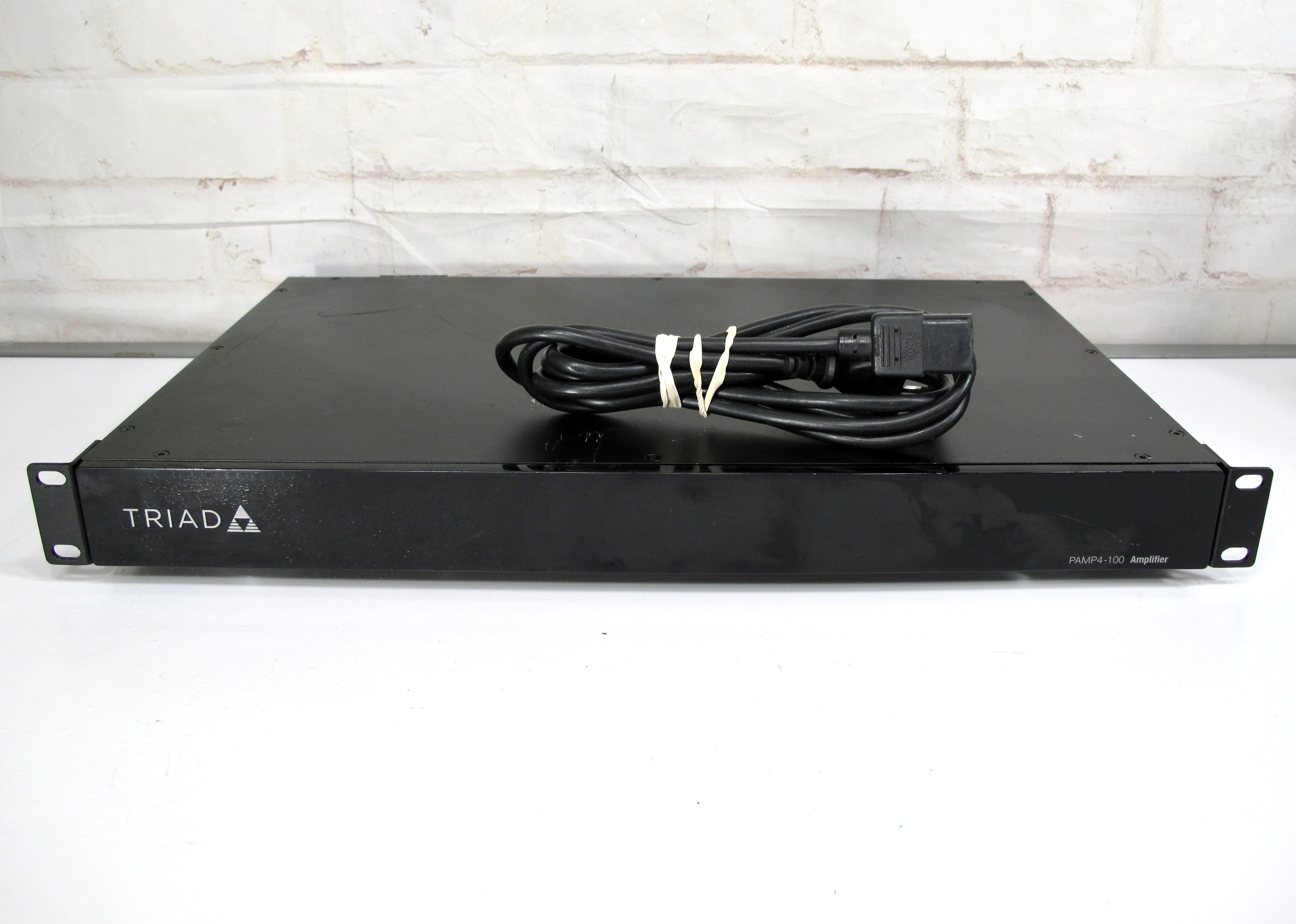

Included items - PAMP4-100 amp, power cord

  • Free shipping from the US

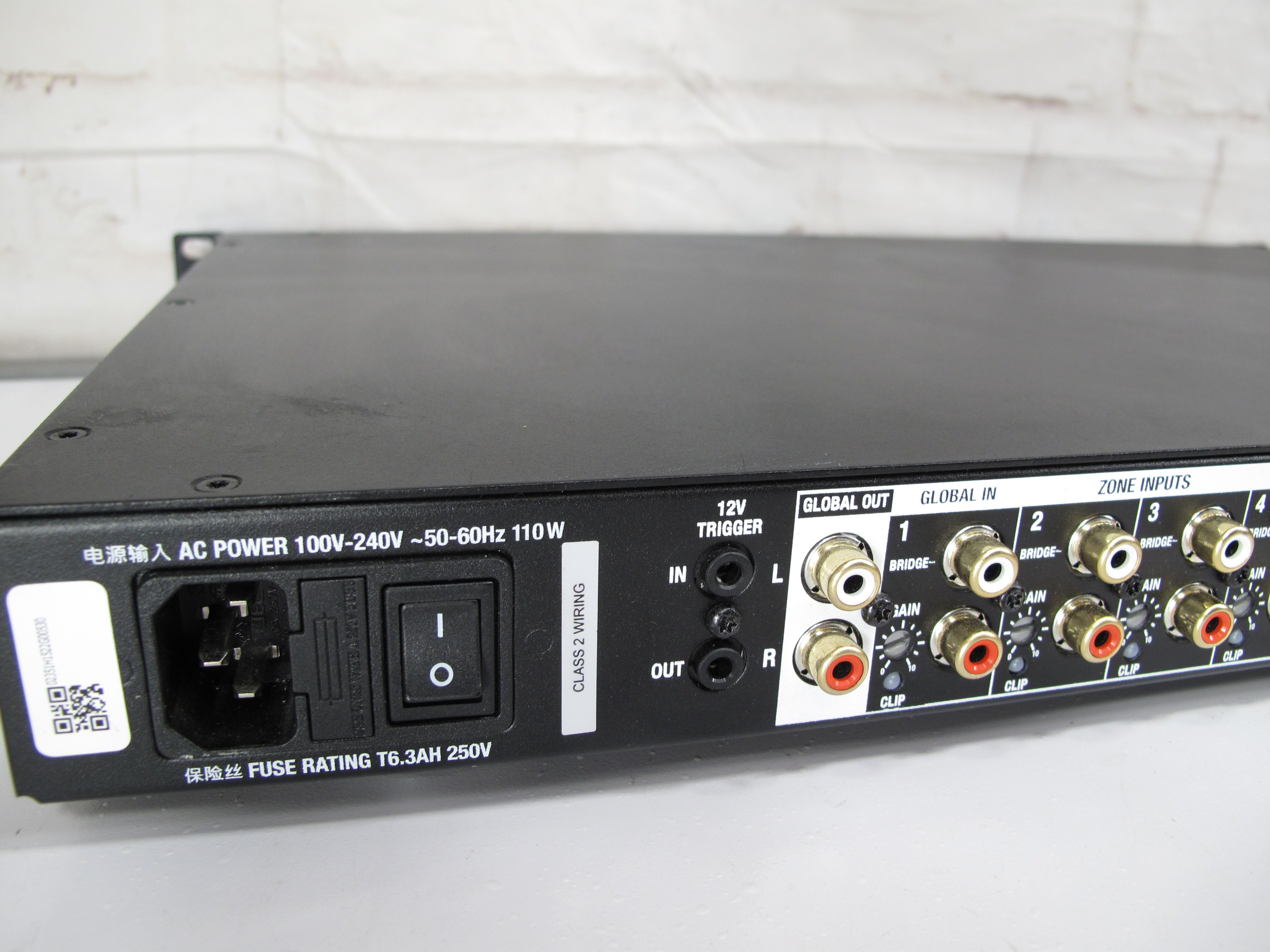

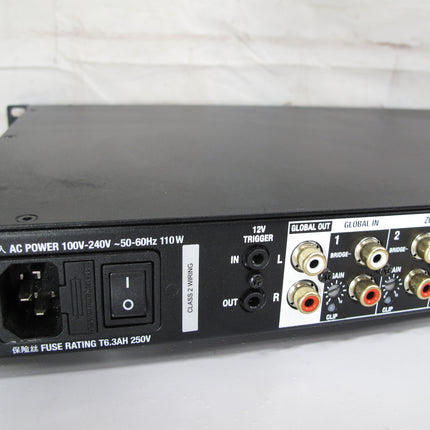

  • Photos shown of actual item.

    • Guaranteed secure & safe checkout.
    Product identifiers
    GTIN/UPC/EAN - 0876389030606

    Description

    8 channels for 4 stereo audio zones with 1 U height, extremely compact. With the help of the ICE-Power amplifier, the small dimensions can be achieved thanks to the low waste heat. The Phoenix contact plugs, which are often used in installation power amplifiers, support the flat housing design. The bridge operation and audio routing can be set using mini-dip switches. No sound control is necessary, as the AMS 8×8 and AMS 24×24 allow the appropriate sound settings to be adjusted remotely.

    • Audio inputs: 4x stereo analog RCA / 1x stereo as global input.
    • Speaker outputs: 8x Phoenix contact
    • 12V trigger: 1x 3.5 mm mini jack input and output
    • Power Mode: 3-way switch (Always on, 12V, Audio sense)
    • Dimensions: (H x W x D) 4.4 × 44.5 × 29.0 cm

    TECHNICAL DATA TRIAD TS-PAMP4-100 4-zone multi-channel amplifier

    • Power per channel: 50W / 100W @ 8 / 4 Ohm – 1x stereo output active
    • Power per channel: 50W / 50W @ 8 / 4 Ohm – 4x stereo outputs active
      –
    • Power bridged: 200W @ 8 Ohm – 1x output active
    • Power bridged: 160W @ 8 Ohm – 1x stereo output active
    • Power bridged: 100W @ 8 Ohm – 2x stereo outputs active
      –
    • Frequency response: +/- 0.4 dB Ref 1kHz 10-20,000 Hz 4 or 8 ohms
    • Dynamic range: 110 dBA stereo, 115 dBA bridged
    • THD: < 0.003%, 4 Ω, SE, f=100 Hz, Po=1W
    • Base Noise: 45uV, A-Rated, 20Hz - 20kHz, SE
