Description

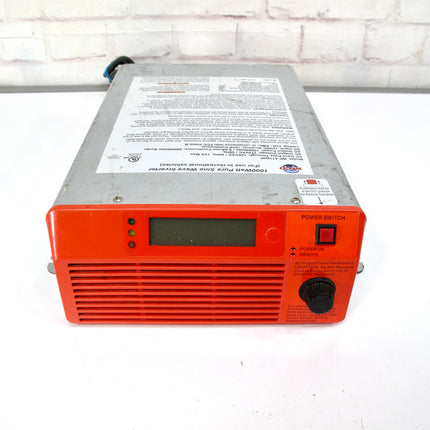

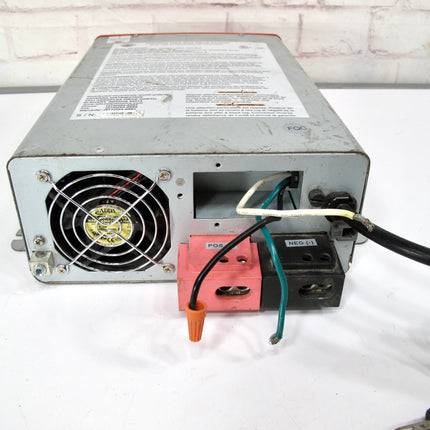

WFCO 1000 Watt Pure Sine Wave power inverters are engineered for outstanding performance. They provide high-efficiency power at full-load conditions with safeguards that include overload protection, over-temperature protection, and short-circuit protection. The cooling fan enhances efficiency as its operation is controlled by the amount of load incurred by the inverter. Hardwired inverters are the best way to insure that the correct voltage is getting to all of your appliances at the correct time. Voltage and amperage both must be correct inorder for sensitive appliances such as TV and Computers will work correctly.
When connected to either shore power or a generator, the 1000 Watt Hardwire WFCO Inverter provides direct AC pass through. FCC Class B compliance, which means that the converters are designed not to cause interference with televisions, radios, or other signals. The upgraded WF-5110HP 1000 Watt Hardwire WFCO Inverter model simplifies and provides certainty in product testing and on the production line for RV manufacturers. The WF-5110HP Pure Sine Wave features a plug-and-play design that allows it to be simply plugged into an AC outlet to connect directly to the RV’s AC system. It will convert 12 VDC to 110 VAC, and has a remote control system and built-in circuit protection on the AC side.
SPECIFICATIONS:
DC Input Voltage: 12V DC
DC Input Voltage Regluation: 10-15V DC
Output Voltage Frequency: 120 VAC/60Hz +/- 0.05%
Output Waveform: Pure Sine Wave (THD <3%)
Efficiency (full load): >80%
Continuous Output Power: 1000 W
Status Indicator Lights: Green LED: AC Input Status, Red LED: Inverter Failure, Yellow LED: Battery Back Up Status
Transfer Switch: 10 A
Transfer Time:<50 milliseconds
AC Output Fuse: 12 A
Protection Features: AC Output Fuse, GFCI, Over Temperature, Over/Under Input Voltage, Overload, Reverse Polarity (fuse), Short Circuit
Operating Temperature Range: 32-104ºF
Storage Temperature Range: -25.6-158ºF
Cooling: Load Controlled Cooling Fan
Output Wiring: Hard Wired
Certifications: FCC Class B compliant
Listed: UL 458
Dimensions: 8.74˝ wide; 3.965˝ high; 13.228˝ deep
Weight: 11.5 lbs
