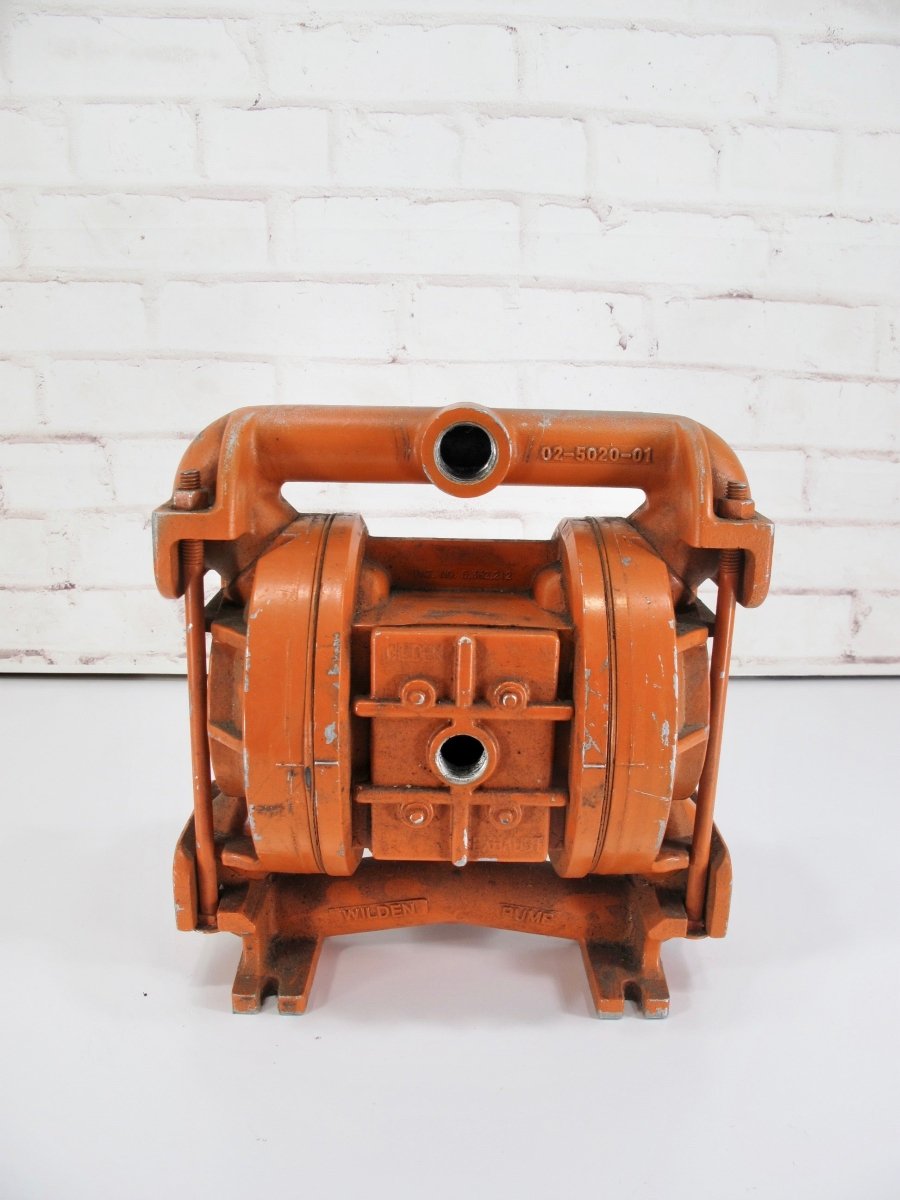

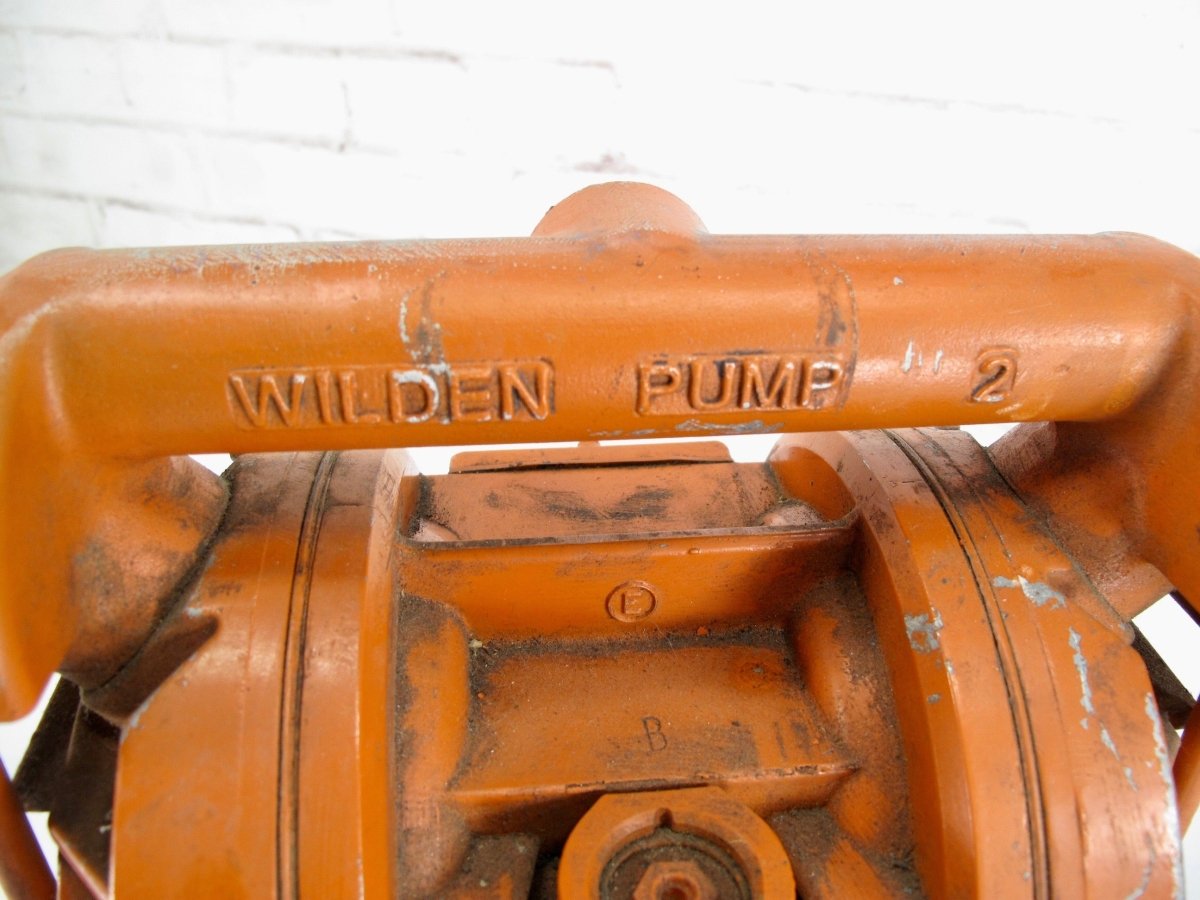

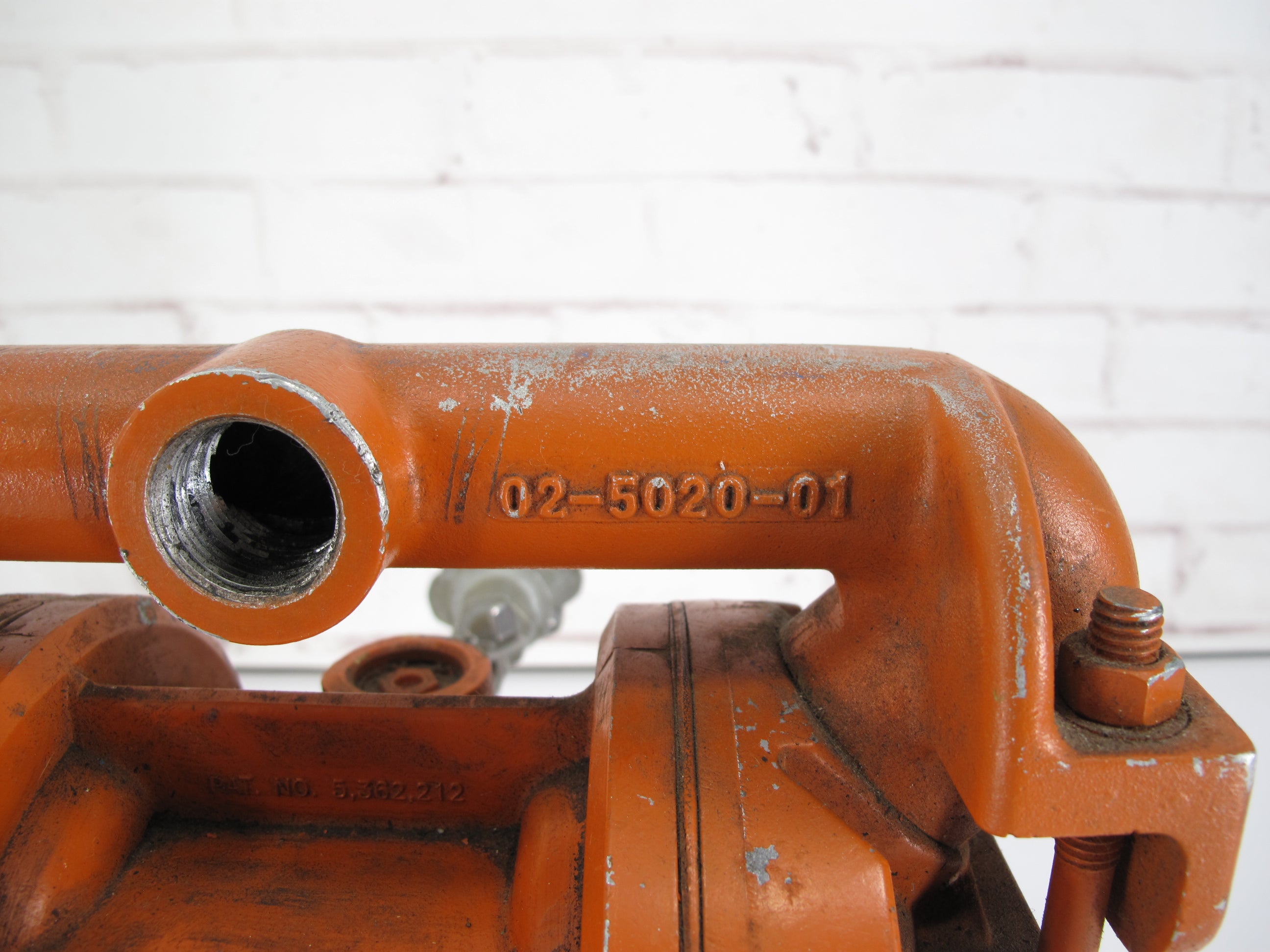

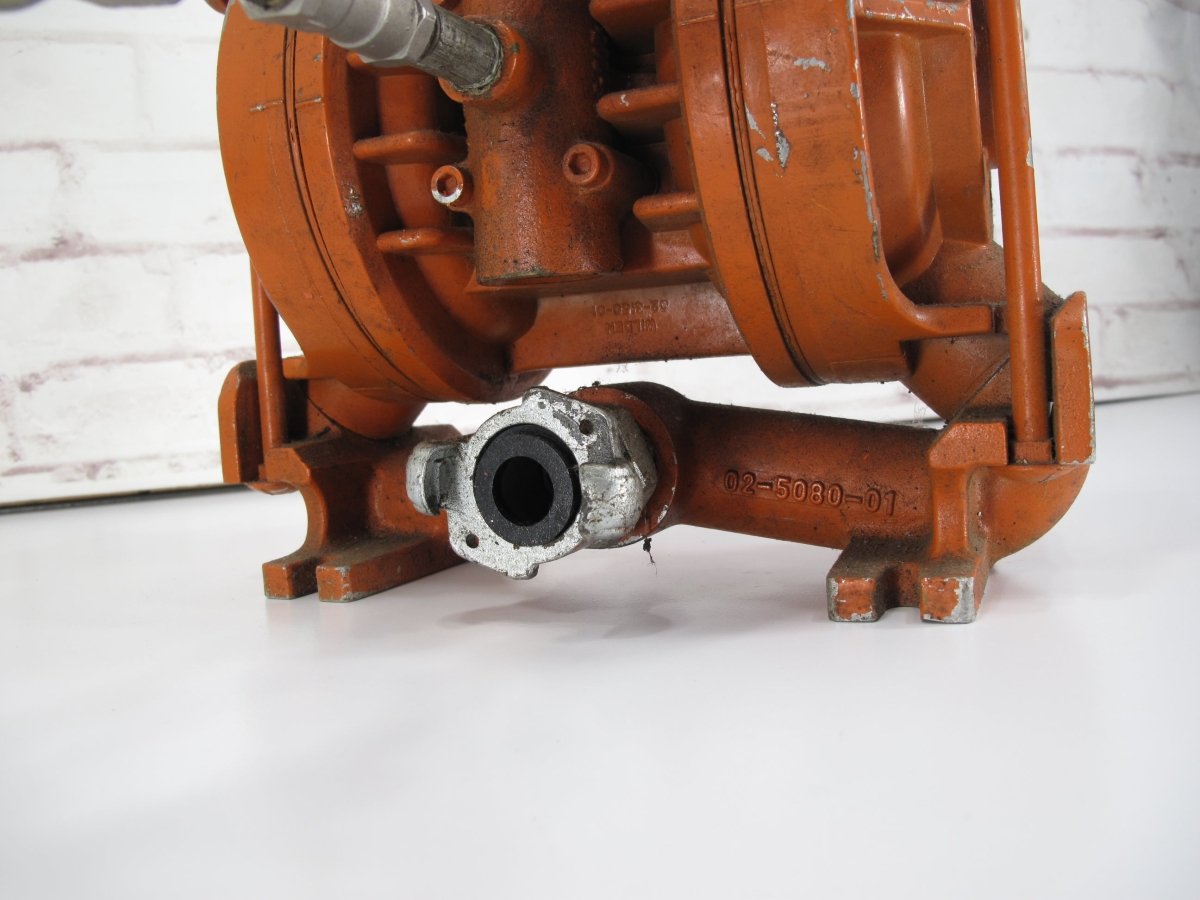

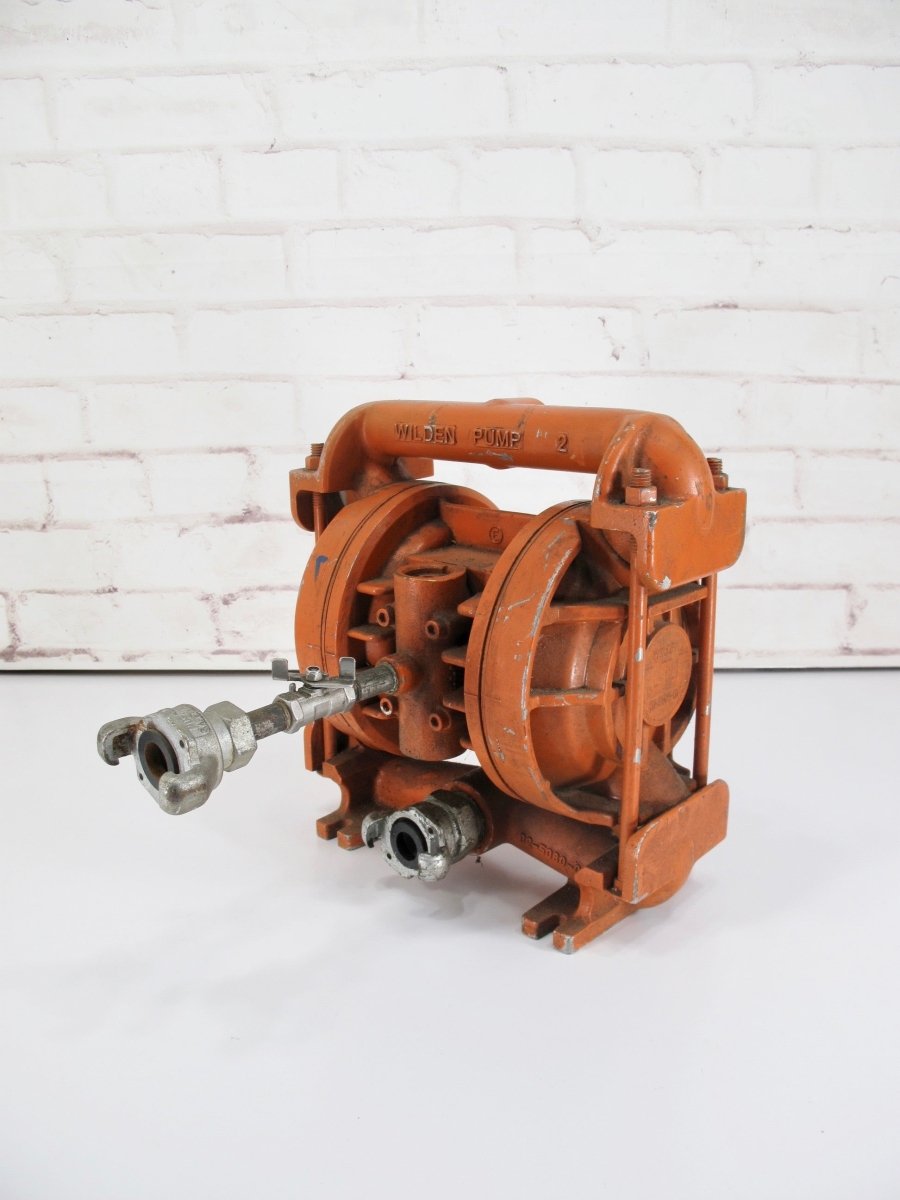

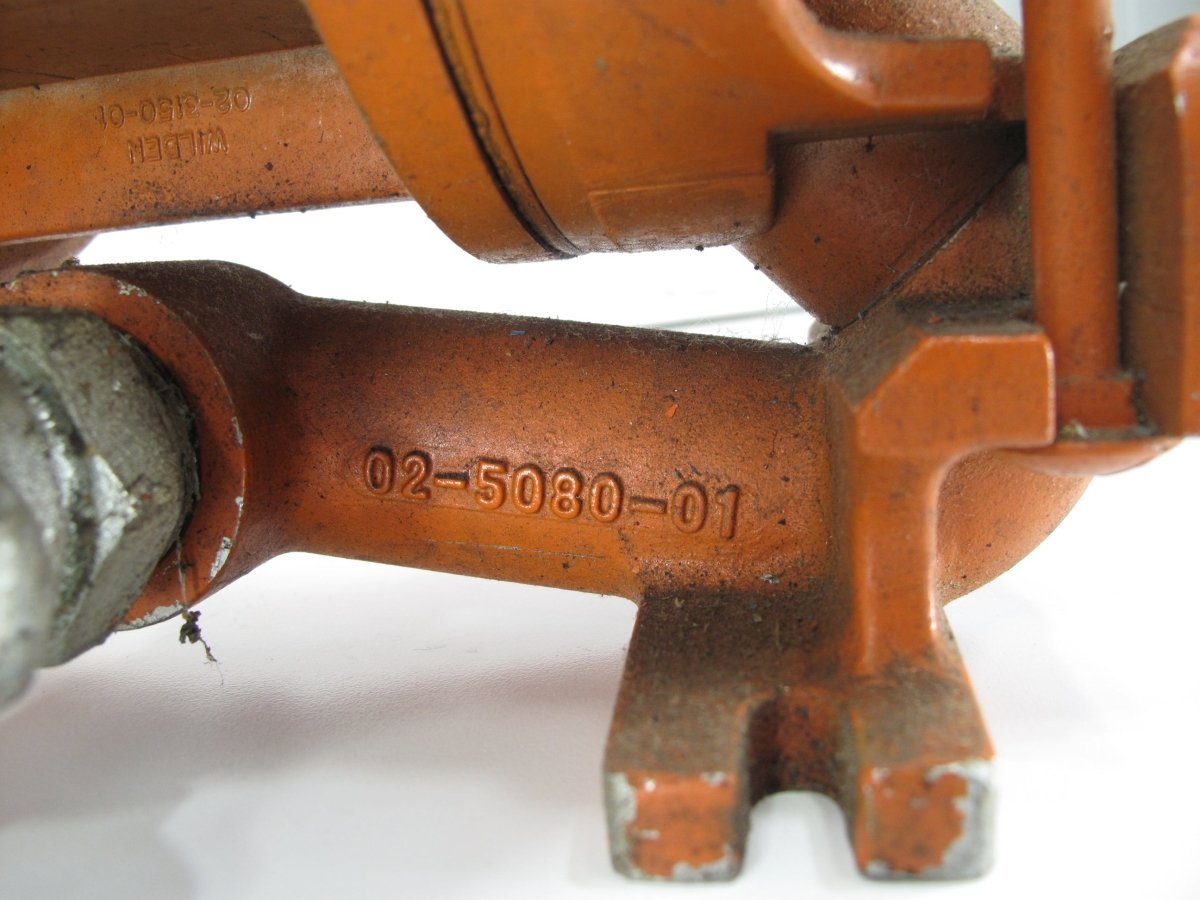

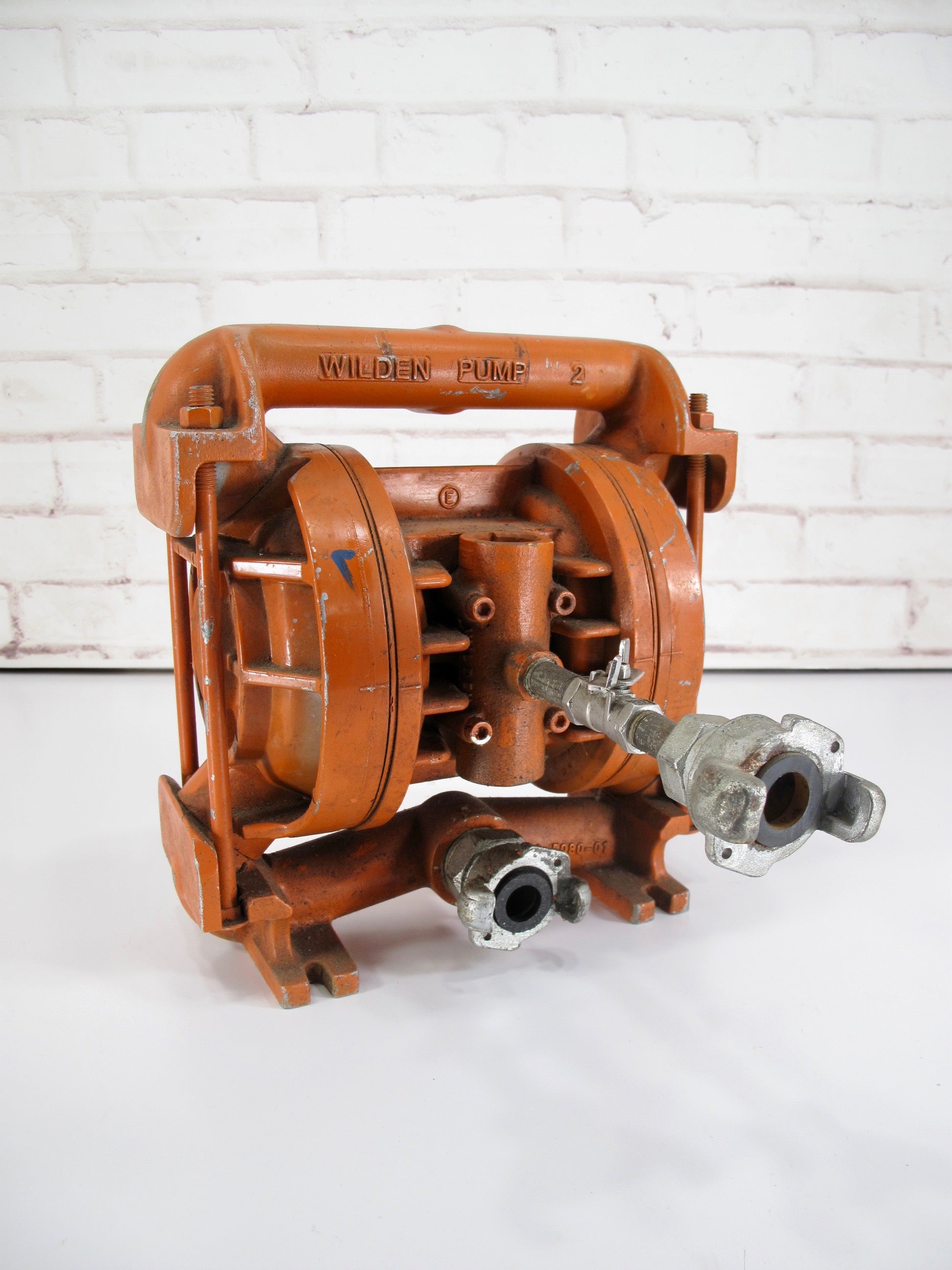

Wilden A2 Accu-Flo Clamped Metal 1 Inch 25mm AOD Pump
Item History - Pre-owned
Manufacturers Description - This information is to be used for reference only. Because the item may be pre-owned, accessories or warranties mentioned in this section may not apply to this specific item. Please check the “Included Accessories” section and photos for more details..
The Wilden® A2 – 1″ / 25 mm Original™ Series clamped metal AOD pumps are available in aluminum, alloy C or stainless steel.
They come equipped with the Accu-Flo™ Air Distribution System (ADS), which provides direct electrical interface control, reduced system costs, automated system operation and lube-free operation.
- Decades of proven performance
- Intrinsically safe
- Clamped connections for faster maintenance
- Self-priming
- Variable speed
- Dry-run without damage
- Single-point exhaust option
- Shear-sensitive
- Widest range of materials in the industry
AIR INLET
- 1/4" FNPT
LIQUID INLET
- 25 mm (1")
LIQUID DISCHARGE
- 25 mm (1")
CONNECTION TYPE
- NPT/BSPT (Threaded)
MAX SUCTION LIFT CAPABILITY
- Rubber – 7.43 m (24.4') Dry, 9.7 m (31.8') Wet
- PTFE – 6.55 m (21.5') Dry, 9 m (29.5') Wet
MAX FLOW RATE
- Rubber – 129 lpm (34 gpm)
- PTFE – 121 lpm (32 gpm)
MAX PRESSURE
- 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
- 3.2 mm (1/8'')
DISPLACEMENT PER STROKE *
- Rubber – 0.35 L (0.092 gal)
- PTFE – 0.20 L (0.054 gal)
Functional Condition - Full Functionality - This item is in full working order with all features operational.
Functionality Notes (if any) -
Cosmetic Condition - Average - It looks to be in average cosmetic shape for an item of this type with a typical amount of cosmetic wear to a comparable item of its age and use as shown.
Cosmetic Notes (if any) - There is some fading in the painted finish, it has some dirt in the nooks and crannies.
Included Accessories - Pump only as shown
